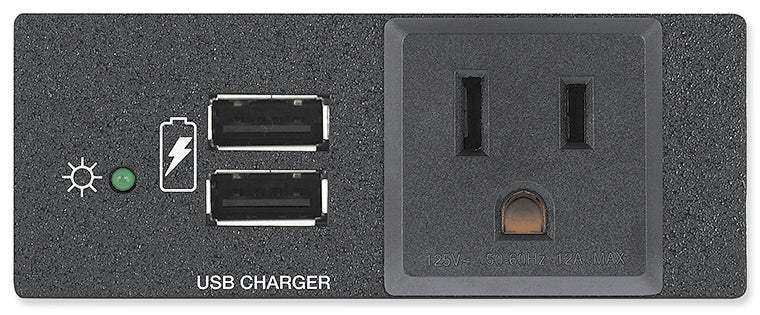

Extron 60-1937-02 USB PowerPlate 200 AC AAP, Double-space, Black

The Extron USB PowerPlate 200 provides two 5 VDC USB power outlets and 3.0 A / 15 watts of total power for charging mobile devices such as smartphones and tablets. Its unique design can deliver full power to either USB outlet when only one device is connected, ideal for use with higher-current demand tablets. The USB PowerPlate 200 is available as two AAP™ AV Connectivity Modules or an MAAP™ Mini AV Connectivity Module. All versions include a highly reliable, Extron-designed and engineered external power supply that meets the Level V standard for energy efficiency. The power supply is designed for continuous use in commercial environments. An optional Extron ZipClip 200 mounting kit is available to mount the included power supply.

Features

• Provides two 5 VDC USB power outlets up to 2.4 A per port max and 3.0 A total shared when both used / 15 watts of power for charging mobile devices
• Ideal for use with iOS and Android phones or tablets
• New Choice of two AAP™ AV Connectivity Modules or an MAAP™ Mini AV Connectivity Module
• USB PowerPlate 200 AC AAP includes one unswitched, Edison-style AC power outlet
• External Extron Everlast™ power supply included, replacement part #70-1174-01 — Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption
• Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty
• Optional ZipClip 200 Mounting Kit secures the included Extron power supply onto most surfaces, including tables and lecterns
• TAA Compliant version available — Please inform your local Extron representative if your order requires compliance with TAA regulations.

Specs

USB PowerPlate 200 Series
General
Power supply (USB)	External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts
Power output (USB)	USB: 5 VDC Up to 2.4 A on a single port, 12 watts total Up to 3.0 A total shared, 15 watts total
Power consumption
Device	17.1 watts
Device and power supply	19.5 watts
Power output (AC models)	125 VAC, 50-60 Hz, 12 A max.
Thermal dissipation (USB)
Device	8.1 BTU/hr
Device and power supply	16.3 BTU/hr
Mounting
Rack mount
AAP/MAAP/AC AAP	Yes, with optional rack mounting frame
Furniture or wall mount
AAP/MAAP/AC AAP	Yes, with optional AAP mounting frame
Enclosure type	Metal
Enclosure dimensions
AC AAP
Connector type	NEMA 5-15 R, polarized, 3-pin to NEMA 5-15 P, non-polarized, 3-pin 2 USB Type A female, power only
Cable length	AC power cord 9' (2.74 meter)
Cable outer diameter	AC power cord 0.29" (7.4 mm)
Faceplate	1.38" H x 3.48" W (35 mm H x 89 mm W (double space AAP plate)
Device	1.30" H x 2.70" W (33 mm H x 69 mm) Allow at least 2.77" (70 mm) depth in the furniture.
AAP
Connector type	2 USB Type A female, power only
Faceplate	0.68" H x 3.48" W (17 mm H x 88 mm W) (single space AAP plate)
Device	0.54" H x 2.03" W x 1.47" D (14 mm H x 52 mm W x 37 mm D) Depth excludes connectors. Allow at least 1.57" (40 mm) depth in the wall or furniture.
MAAP
Connector type	2 USB Type A female, power only
Faceplate	1.39" H x 2.16" W (35 mm H x 55 mm W) (double space MAAP plate)
Device	0.78" H x 1.40" W x 1.47" D (20 mm H x 36 mm W x 37 mm D) Depth excludes connectors. Allow at least 1.58" (40 mm) depth in the wall or furniture.
Product weight
AC AAP	1.2 lbs (0.5 kg)
AAP and MAAP	0.1 lbs (0.05 kg)
Regulatory compliance	CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI Class A, RoHS, WEEE
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     Specifications are subject to change without notice.
(5181-D7)
