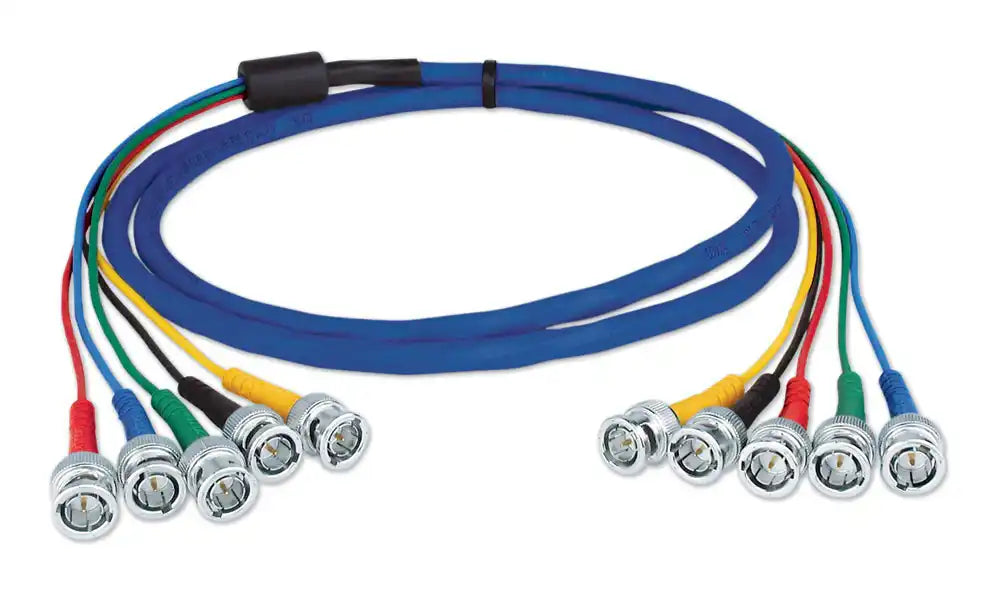

Extron 5 Conductor MHR Plenum Bulk Cable 12' (3.6 m)
The Extron 5 Conductor MHR Plenum Bulk Cable is a high-performance, plenum-rated cable designed for professional AV installations requiring reliable transmission of RGBHV video, component video, or composite video signals along with control or audio lines. Featuring five 26 AWG mini high-resolution (MHR) coaxial conductors with individual 95% tinned copper braid + aluminum foil shielding, this cable delivers excellent signal integrity, low attenuation, and superior rejection of electromagnetic interference over long runs. The plenum-rated CMP jacket complies with NEC requirements for use in air-handling spaces, making it suitable for in-ceiling, in-wall, conduit, or riser applications in educational facilities, corporate boardrooms, auditoriums, houses of worship, and large-scale presentation systems.
With a compact 0.295" (7.5 mm) outer diameter and flexible construction, the cable is easy to pull through tight pathways while maintaining structural integrity and performance. The blue jacket aids in quick identification during installation and termination, and the cable is optimized for use with Extron BNC connectors, crimp tools, and termination accessories to ensure consistent, high-quality connections in demanding AV environments.
Features Chart
| Feature | Benefit |
|---|---|
| Five 26 AWG Mini High-Resolution Coax | Supports RGBHV, component, or composite video plus additional signals |
| 95% Tinned Copper Braid + Foil Shielding | Provides excellent EMI/RFI rejection for clean signal transmission |
| Plenum-Rated CMP Jacket | Meets NEC codes for safe installation in air-handling plenums |
| Low Attenuation Design | Maintains signal quality over extended cable runs |
| Compact 0.295" (7.5 mm) Diameter | Facilitates pulling through conduits and tight installation spaces |
| Flexible Construction | Simplifies handling and termination in professional AV projects |
| Blue Jacket Color | Enables easy identification and organization during cabling |
| Optimized for Extron Termination | Ensures reliable crimping with Extron BNC connectors and tools |
Specifications Table
| Specification | Details |
|---|---|
| Conductor Count | 5 mini high-resolution coaxial conductors |
| Conductor Gauge | 26 AWG |
| Conductor Type | Stranded tinned copper |
| Shielding | 95% tinned copper braid + 100% aluminum foil per coax |
| Jacket Type | Plenum-rated CMP (Communications Multipurpose Plenum) |
| Jacket Color | Blue |
| Outer Diameter | 0.295" (7.5 mm) |
| Nominal Impedance | 75 ohms |
| Capacitance | 17.5 pF/ft (57.4 pF/m) nominal |
| Velocity of Propagation | 82% nominal |
| Applications | RGBHV/component/composite video plus control/audio |
| Installation Rating | Plenum spaces, in-wall, conduit, riser |
Compare Chart
| Aspect | Extron 5 Cond MHR Plenum | Belden 1694F Plenum | Gepco GA61808 Plenum |
|---|---|---|---|
| Conductor Count | 5 mini coax | 1 RG6 (different series) | 8 coax variants |
| Gauge | 26 AWG | 18 AWG typical RG6 | 18-22 AWG typical |
| Shielding | 95% braid + foil per coax | 95-97% braid + foil | 95% braid + foil typical |
| Plenum Rating | CMP | CMP | CMP |
| Outer Diameter | 0.295" (7.5 mm) | ~0.27" typical | ~0.35-0.45" typical |
| Primary Use | RGBHV + signal in AV | General video/broadcast | Multi-coax AV/broadcast |
| Color Identification | Blue jacket | Various | Various |
| AV-Optimized Termination | Extron BNC compatibility | Standard BNC | Standard BNC |
FAQ
- What signals can the 5 Conductor MHR Plenum cable carry? It is designed for RGBHV video, YUV/component video, composite video plus sync, or combinations with control or audio signals.
- Is this cable suitable for plenum spaces? Yes, it features a CMP-rated plenum jacket compliant with NEC standards for use in air-handling plenums and return air spaces.
- What is the maximum recommended run length? Performance depends on signal type and resolution; typical high-quality RGBHV runs reach 100-300 feet with proper termination and equipment.
- What connectors are recommended for termination? Extron mini high-resolution BNC connectors and crimp tools are optimized for secure, low-loss terminations on this cable.
- How does the shielding benefit performance? Individual 95% braid plus foil shielding per conductor minimizes crosstalk and external interference for cleaner video signals.
- What is the outer jacket color used for? The blue jacket helps technicians quickly identify the cable type during installation, labeling, and future maintenance.
