Extron 2USBCFHDMI F-10 One USB-C Female to HDMI Female on Pigtail AAP Module
Extron 2USBCFHDMI F-10 One USB-C Female to HDMI Female on Pigtail AAP Module is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron 2USBCFHDMI F-10 One USB-C Female to HDMI Female on Pigtail A...

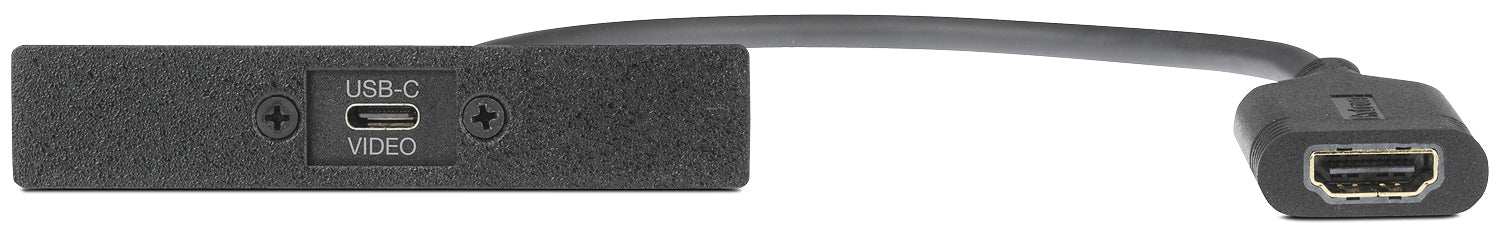

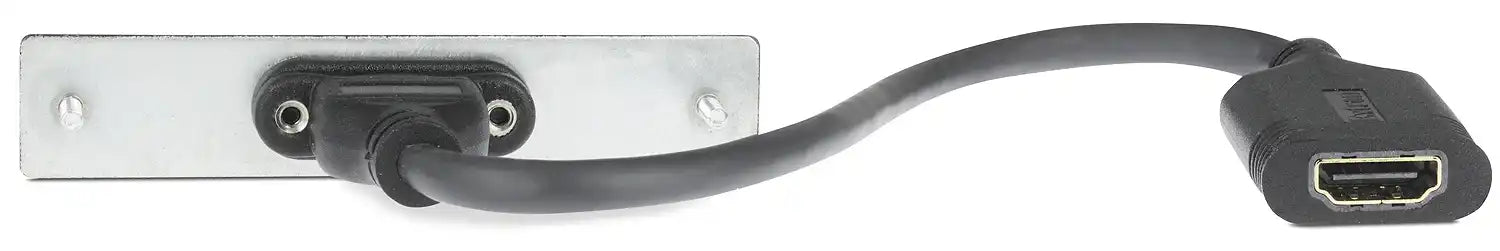

Extron 2USBCFHDMI F-10 is a single-space AAP AV Connectivity Module featuring one USB-C female to HDMI female connector on a pigtail. This passive pass-through design enables connection from USB-C sources supporting DisplayPort Alt Mode to HDMI displays and peripherals. It delivers resolutions up to 4K/60 @ 4:4:4 while passing EDID, HDCP, and embedded audio information between source and display. The mountable metal plate construction ensures secure, durable integration into architectural environments for clean, professional installations.
This module is ideal for conference rooms, classrooms, lecterns, podiums, table boxes, and wall-mounted setups where modern USB-C equipped laptops, tablets, or mobile devices need seamless video output to HDMI displays or projectors alongside AV systems. It supports plug-and-play extension without active conversion or external power, making it suitable for modular Extron AAP-compatible frames, interfaces, and enclosures. The pigtail provides flexible routing for behind-panel or furniture-integrated connections in architectural AV deployments.
Features Chart
| Feature | Benefit |
|---|---|
| Single-space AAP form factor | Compact fit into Extron interfaces, AAP mounting frames, and compatible enclosures |
| USB-C female to HDMI female pigtail | Enables direct connection from USB-C sources with DisplayPort Alt Mode to HDMI displays/peripherals |
| Supports 4K/60 @ 4:4:4 | Delivers high-resolution video output with full chroma subsampling for sharp, detailed images |
| Passes EDID, HDCP, and audio | Ensures seamless compatibility, content protection, and embedded audio transmission |
| Pigtail design | Allows flexible cable routing and reach in architectural or furniture-integrated setups |
| Mountable metal plate | Provides professional durability, secure mounting, and vibration resistance |
| Pass-through design | Maintains signal integrity with no latency, power requirements, or active processing |
| AAP series compatibility | Integrates seamlessly with Extron's modular architectural connectivity ecosystem |
Specifications Table
| Specification | Details |
|---|---|
| Connector Type | One USB-C Female to HDMI Female on pigtail |
| Form Factor | Single Space AAP module |
| Mounting | Mountable metal plate |
| Video Resolution | Up to 4K/60 @ 4:4:4 |
| Signal Support | DisplayPort Alt Mode over USB-C, HDMI pass-through (EDID, HDCP, embedded audio) |
| Type | Quick Connect, Pass-through |
| Compatibility | Select Extron interfaces, AAP AV connectivity mounting frames, AAP-compatible products; USB-C sources with DisplayPort Alt Mode |
| Signal Type | USB-C to HDMI video/audio pass-through |
| Size | Single Space |
Compare Chart
| Aspect | Extron 2USBCFHDMI F-10 | Extron 1HDMIF1USBA2FP | Extron HDMIF2FP |
|---|---|---|---|
| Primary Connectors | USB-C F to HDMI F pigtail | HDMI F + USB-A F pigtails | HDMI F to F pigtail |
| Video Support | 4K/60 @ 4:4:4 via DP Alt Mode | HDMI pass-through | HDMI pass-through |
| USB/Data Support | None (video-focused) | USB 2.0 | None |
| Form Factor | Single Space AAP | Single Space AAP | Half-size Flex55 |
| Mounting System | AAP frames/enclosures | AAP frames/enclosures | Flex55 enclosures/EU boxes |
| Unique Feature | USB-C source to HDMI display | Combined HDMI + USB | Dual HDMI extension |
| Ideal For | Modern USB-C laptop to HDMI | HDMI + USB peripherals | Simple HDMI pass-through |
| Resolution Capability | Up to 4K/60 | HDMI standard (cable-dependent) | HDMI standard |
FAQ
- What sources does this module support? It works with USB-C sources that support DisplayPort Alt Mode, allowing video output to HDMI displays.
- What resolutions and features are supported? It handles up to 4K/60 @ 4:4:4, passing EDID for display compatibility, HDCP for protected content, and embedded audio.
- Which mounting systems are compatible? It fits select Extron interfaces, AAP AV connectivity mounting frames, wall boxes, table boxes, and other AAP-compatible products.
- Does it require power or active components? No, it is a fully passive pass-through module with no electronics or power needs.
- Why use a pigtail design? The pigtail provides flexibility for routing in tight spaces, behind furniture, or in architectural integrations.
- Is it suitable for professional AV setups? Yes, the AAP form factor and metal plate ensure durable, reliable performance in conference rooms, classrooms, and installed AV environments.
