Extron 1XLR3PMTOSC One XLR 3-pin Male to Solder Cups - Switchcraft AAP Module
Extron 1XLR3PMTOSC One XLR 3-pin Male to Solder Cups - Switchcraft AAP Module is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron 1XLR3PMTOSC One XLR 3-pin Male to Solder Cups - Switchcraft ...

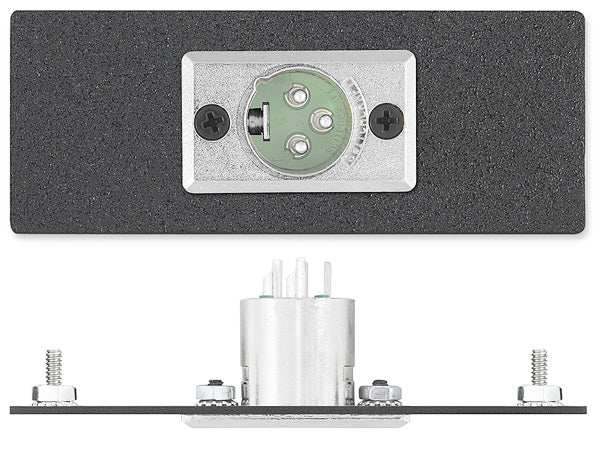

Extron 1XLR3PMTOSC is a double-space AAP AV Connectivity Module featuring one Switchcraft XLR 3-pin male connector with solder cup termination. This passive pass-through module provides a professional balanced audio connection point for line-level or output signals in architectural AV installations. The mountable metal plate construction ensures secure, durable integration into Extron AAP-compatible systems for reliable audio routing.
This module is ideal for conference rooms, classrooms, lecterns, podiums, table boxes, and wall-mounted applications requiring XLR connectivity for mixers, amplifiers, powered speakers, or other pro audio equipment integrated with AV systems. It supports custom soldering of balanced audio cables on the rear for fixed installations, enabling clean signal paths without active processing or power needs.
Features Chart
| Feature | Benefit |
|---|---|
| Double-space AAP form factor | Fits into Extron interfaces, AAP mounting frames, and compatible enclosures for professional layouts |
| Switchcraft XLR 3-pin male connector | Reliable balanced audio interface for line-level outputs or interconnections |
| Solder cup termination | Allows secure, custom cable soldering for permanent, high-quality connections |
| Mountable metal plate | Provides sturdy, vibration-resistant mounting and long-term durability in architectural settings |
| Pass-through design | Maintains audio signal integrity with no latency, power requirements, or active components |
| AAP series compatibility | Integrates seamlessly with Extron's modular architectural connectivity ecosystem |
| Switchcraft quality | Ensures robust contact and durability for pro audio environments |
| Installation-focused module | Supports tidy, secure audio output points in presentation spaces |
Specifications Table
| Specification | Details |
|---|---|
| Connector Type | One XLR 3-pin Male (Switchcraft) to Solder Cups |
| Form Factor | Double Space AAP module |
| Mounting | Mountable metal plate |
| Type | Installation / Pass-through |
| Compatibility | Select Extron interfaces, AAP AV connectivity mounting frames, AAP-compatible products |
| Signal Type | Balanced audio pass-through |
| Size | Double Space |
Compare Chart
| Aspect | Extron 1XLR3PMTOSC | Extron AAP1XLR | Extron XLR3PINFTOSC |
|---|---|---|---|
| Connector Type | XLR 3-pin Male to Solder Cups | XLR 3-pin Female to Solder Cups | XLR 3-pin Female to Solder Cups |
| Gender | Male | Female | Female |
| Brand | Switchcraft | Neutrik | Neutrik |
| Form Factor | Double Space AAP | Double Space AAP | Half-size Flex55 |
| Mounting System | AAP frames/enclosures | AAP frames/enclosures | Flex55 enclosures/EU boxes |
| Termination Method | Solder cups | Solder cups | Solder cups |
| Primary Use | Balanced audio output/extension | Balanced audio input | Compact balanced audio I/O |
| Ideal For | Line-level or amp connections | Microphone/line input | Space-limited pro audio installs |
FAQ
- What is the primary function of this module? It provides a Switchcraft XLR 3-pin male pass-through connector with solder cup termination for balanced audio in AV installations.
- Which mounting systems are compatible? It fits select Extron interfaces, AAP AV connectivity mounting frames, wall boxes, table boxes, and other AAP-compatible products.
- Why use solder cup termination? Solder cups enable custom soldering of balanced audio cables on the rear for permanent, reliable wiring in fixed setups.
- Does it require power or active components? No, it is a fully passive pass-through module with no electronics or power needs.
- What type of audio does it support? It handles balanced audio signals, suitable for line-level outputs, amplifiers, or interconnections in pro AV environments.
- Is it suitable for professional installations? Yes, the Switchcraft connector, metal plate, and AAP design ensure durable, high-quality performance in conference rooms, classrooms, and architectural AV systems.
