Extron 1HDMIF1USBA3FP HDMI & USB-A 3.2 Pigtail AAP Module Black

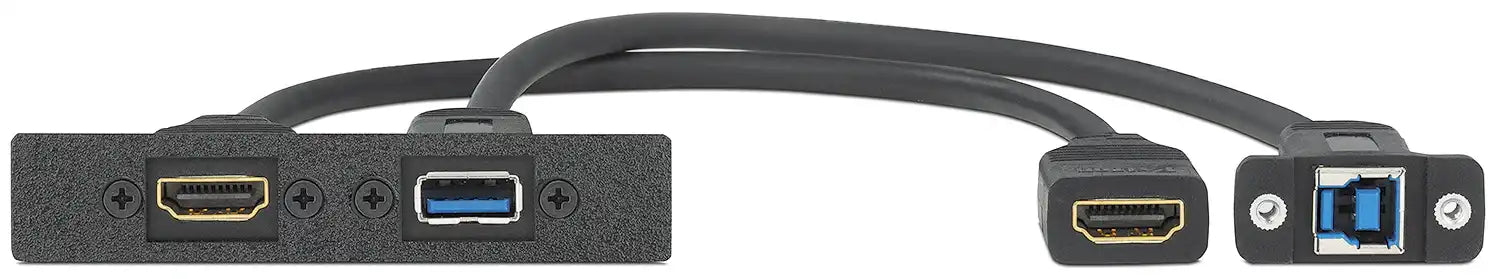

Extron 1HDMIF1USBA3FP is a compact single-space AAP connectivity module that combines one HDMI female connector with one reversible USB Type-A 3.2 female connector, both on integrated pigtails. This pass-through design delivers dependable extension of high-definition HDMI video and embedded multi-channel audio alongside high-speed USB 3.2 data transfer, making it an excellent choice for modern professional AV environments. The rugged mountable metal plate construction provides exceptional mechanical strength and secure fastening, ensuring long-term reliability even in high-traffic or frequently accessed installations.
Perfectly suited for boardrooms, training facilities, university lecture halls, collaborative workspaces, and custom furniture integrations, the module enables discreet yet easily accessible connections for laptops, media players, interactive displays, external storage drives, high-resolution cameras, and other USB 3.2-capable peripherals. Its reversible USB pigtail adds practical flexibility during installation, while the black or white finish options allow it to integrate visually unobtrusively into any decor scheme. As a fully passive device, it maintains pristine signal quality across HDMI and USB paths with no added latency, power requirements, or compatibility concerns, and it slots effortlessly into Extron’s comprehensive AAP architectural connectivity ecosystem.
Features Chart
| Feature | Benefit |
|---|---|
| Single-space AAP form factor | Space-efficient design fits cleanly into Extron interfaces, AAP frames, and enclosures without wasting panel space |
| HDMI female pass-through | Reliable, direct extension of HDMI signals supporting video, embedded audio, CEC, and HDCP for seamless source-to-display connectivity |
| USB Type-A 3.2 female pass-through | Enables high-speed data transfer (up to 10 Gbps) for demanding peripherals such as external SSDs, 4K capture devices, or touch panels |

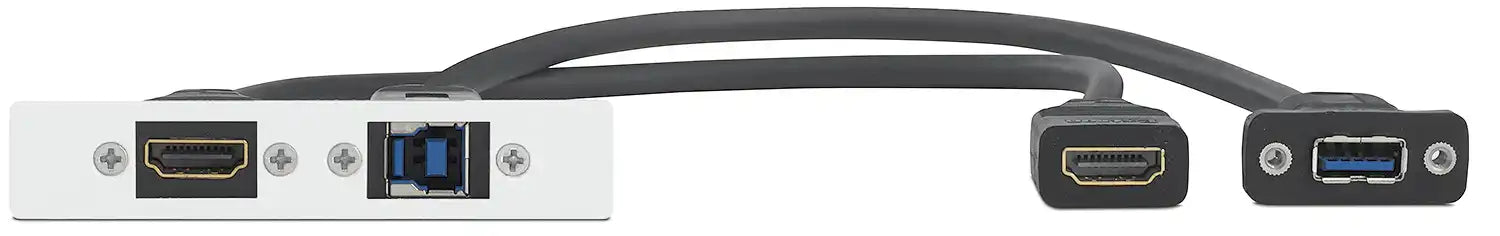

| Reversible USB pigtail | Allows installers to orient the connector (Type-A or Type-B facing front) for optimal cable management and user convenience |
| Mountable metal plate | Heavy-duty metal construction delivers superior durability, vibration resistance, and tamper-proof security in permanent setups |
| Black or white color options | Provides two neutral finishes to match AV furniture, wall panels, or room aesthetics for a polished, professional appearance |
| Quick Connect design | Streamlines installation, maintenance, and future upgrades by allowing tool-free module insertion and removal |
| AAP system compatibility | Fully interoperable with Extron’s wide range of AAP mounting frames, wall boxes, table boxes, and interface plates for system-wide consistency |
Specifications Table
| Specification | Details |
|---|---|
| Connector Type | 1 × HDMI Female, 1 × USB Type-A 3.2 Female (reversible pigtail) |
| Form Factor | Single-space AAP module |
| Mounting | Mountable metal plate |
| Colors | Black or White |
| Compatibility | Extron AAP frames, select interfaces, AAP-compatible products |
| Signal Type | HDMI pass-through (video/audio/CEC/HDCP), USB 3.2 pass-through |
| USB Data Speed | Up to 10 Gbps |
| Installation | Quick Connect |
Compare Chart
| Aspect | Extron 1HDMIF1USBA3FP | Extron 1HDMIF1USBA2FP | Extron HDMIF2FP |
|---|---|---|---|
| USB Version | USB 3.2 | USB 2.0 | None |
| USB Ports | 1 × Type-A Female (reversible) | 1 × Type-A Female | N/A |
| HDMI Configuration | 1 × Female pass-through | 1 × Female pass-through | 1 × Female to Female |
| Form Factor | Single-space AAP | Single-space AAP | Half-size Flex55 |
| Mounting System | Extron AAP frames/enclosures | Extron AAP frames/enclosures | Flex55 enclosures/EU boxes |
| Color Options | Black or White | Black or White | Typically Black |
| USB Data Speed | Up to 10 Gbps | Up to 480 Mbps | N/A |
| Primary Application | HDMI + high-speed USB for modern devices | HDMI + basic USB connectivity | Simple HDMI-only extension |
FAQ
- What signals does this module support? It provides clean pass-through for HDMI (including video up to 4K, embedded audio, CEC, and HDCP) and USB 3.2 data signals with no active circuitry.
- Why is the USB pigtail reversible? The reversible design lets installers choose which end (Type-A or Type-B) faces the user, improving cable routing and accessibility in tight spaces.
- What mounting options are available? It installs directly into single-space AAP openings on Extron AAP frames, table boxes, wall plates, and compatible enclosures.
- Can it handle 4K@60Hz HDMI signals? Yes, the passive HDMI pass-through supports full HDMI 2.0 bandwidth, limited only by the quality and length of connected cables and devices.
- How does it compare to the USB 2.0 version? The 3.2 version offers dramatically faster data rates (10 Gbps vs. 480 Mbps), making it better for high-bandwidth USB devices and future-proofing.
- Is it suitable for permanent installations? Yes, the metal plate and Quick Connect system ensure secure, reliable performance in fixed conference room, classroom, or corporate AV setups.
