Studio Network Solutions EVO 8 Bay Shared Storage Server 80TB

Product Overview

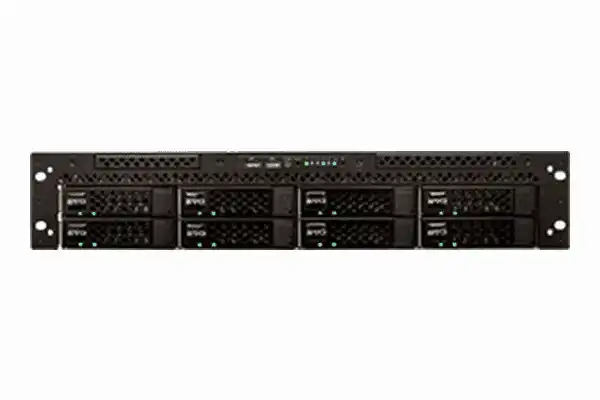

The Studio Network Solutions EVO 8-Bay Shared Storage Server 80TB is a high-capacity SNS EVO shared storage server in a 2U rack-mount chassis, delivering 80TB of raw storage for collaborative post-production environments. Configured for multi-user 4K 8K shared storage, it supports multiple simultaneous editors working across a shared volume with no per-user licensing fees. Purpose-built for shared media storage for post-production, it ships with the complete EVO Suite and is compatible with every major NLE platform used in professional media workflows.

Product Description

The EVO 8-Bay 80TB positions itself as a high-density 8-bay NAS server for video editing, offering a balance between substantial raw capacity and the proven 2U form factor of the EVO 8-bay platform. Eight drives populate the chassis to deliver 80TB of raw storage on SNS’s custom Linux EVO OS. The system ships with the full EVO Suite at no additional per-user cost: ShareBrowser MAM for media asset management and NLE panel integration, Slingshot for automated ingest and transcoding via watch folders, and Nomad for remote editing over standard internet connections. RAID 5 and RAID 6 are both available, and administrators can select the appropriate protection level during initial setup or reconfigure as needs change. Two on-board 10GbE ports provide immediate multi-user bandwidth, and the networking infrastructure is field-upgradeable to 1, 10, 25, or 100GbE using additional NIC cards. One expansion unit can be attached after deployment, adding up to 16 additional drive bays and scaling total raw capacity to 720TB. A spare drive is included to minimize rebuild time after a disk event. The system is compatible with NAS SAN storage for Adobe Premiere, DaVinci Resolve, Final Cut Pro, Avid Media Composer, Blender, Nuke, and Pro Tools. Active Directory and LDAP integration support enterprise IT management, and a REST API enables automation and custom monitoring. Dual redundant 850W power supplies (100–240VAC) operate at 463W typical with 665W peak draw, suitable for standard rack power infrastructure. This is a reliable professional media server for broadcast and post-production teams that need substantial shared capacity without the overhead of a 16-bay system.

Key Features

• 80TB Raw Capacity — Eight-drive 2U configuration delivers high-density storage for active project libraries and large media assets.
• EVO Suite Included (Unlimited Users) — ShareBrowser MAM, Slingshot, and Nomad are all bundled with no per-seat licensing costs.
• RAID 5 and RAID 6 — Dual protection options let administrators balance usable capacity against fault tolerance.
• Dual 10GbE On-Board — Supports high-bandwidth multi-editor workflows out of the box, with upgrade paths to 100GbE.
• Expandable to 720TB — One expansion unit (16 bays) can be added to the base system without replacing the server.
• Spare Drive Included — A replacement HDD ships with the system for fast swap during a disk failure.
• Redundant 850W Power — Dual PSUs protect against single power supply failure in production environments.
• Broad NLE Compatibility — Works with Adobe Premiere Pro, DaVinci Resolve, Final Cut Pro, Avid Media Composer, and other major applications.
• AD/LDAP Integration — Centralized directory integration for enterprise user and permission management.
• REST API — Enables custom automation, scripting, and integration with facility workflows.

Typical Applications

• Post-production studios with multi-editor collaborative workflows
• Broadcast facilities editing 4K and 8K content
• Film and television production companies managing large project volumes
• Color grading and VFX studios requiring sustained shared throughput
• AV integration projects for media-focused facilities
• Corporate video departments with high-resolution production pipelines

Technical Specifications

Frequently Asked Questions

Q: How does the EVO 8-Bay 80TB differ from the 96TB model?

The primary difference is drive configuration and raw capacity: 80TB vs. 96TB. The platform, software suite, networking, and expansion capabilities are identical across both configurations.

Q: How many editors can work simultaneously?

The EVO platform has no hard cap on concurrent users. Practical concurrency depends on the codec, resolution, and network infrastructure in place.

Q: Is the EVO Suite software included with this system?

Yes. ShareBrowser MAM, Slingshot, and Nomad are all included at no additional per-user cost.

Q: Can I expand storage after purchase?

Yes. One expansion unit adding up to 16 additional drives can be connected to scale raw capacity to 720TB.

Q: What RAID levels are supported?

Both RAID 5 and RAID 6 are available. RAID 6 provides dual-drive failure protection and is recommended for high-capacity configurations.

Q: Does the server support remote editing?

Yes. Nomad enables editors to connect and work remotely over standard internet without requiring a separate VPN appliance.

Q: What network connectivity is included?

Two 10GbE ports ship on-board. Additional NIC cards can be installed to support 1, 10, 25, or 100GbE.

Q: What rack depth is needed to mount this server?

The mounting rails support rack depths from 25.75" to 32.25" with 0.625" pitch round-hole racks.
