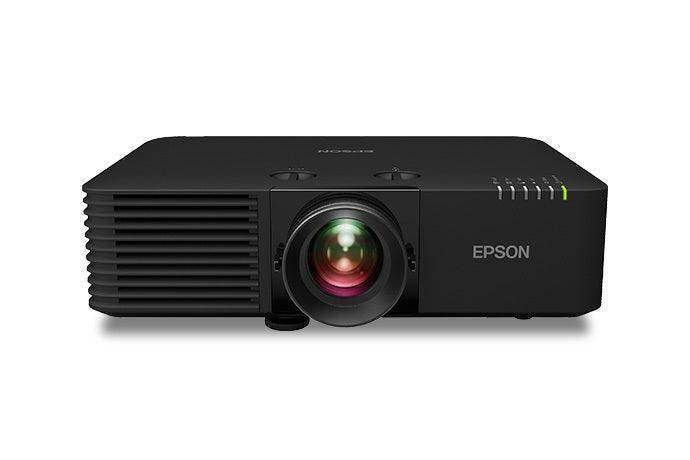

Epson PowerLite L735U Projector, WUXGA, 7000 lumens, 3LCD, WiFi - V11HA25120

Epson SKU: V11HA25120
No reviews

Sale price$3,799.00


Make an impression with bright, larger-than-life laser displays.

Redefine projection with the powerful PowerLite L735U long-throw laser projector. Offering 7,000 lumens of brightness1, this high-performance laser projector delivers bright, beautiful images for signage, wayfinding and more in astounding Full HD WUXGA resolution. Ideal for nearly any application — from museums to meeting rooms — the PowerLite L735U projects up to 500" and features built-in tools to seamlessly support multi-projector setups. Designed with convenience in mind, this flexible laser projector includes a virtually maintenance-free 20,000-hour laser light source2, easy-to-use tools for simplified installation, and a built-in content creation app3 to help you develop and share your creations.

  • Up to 7,000 lumens of equal Color and White Brightness1
  • Sharp images in Full-HD WUXGA; also accepts 4K signal
  • Virtually maintenance-free 20,000-hour laser light source2
  • Project up to 500" from single projector or join multiple projectors
  • Built-in tools for simplified installation
  • Color & White Brightness of 7000 Lumens
  • WUXGA (1920 x 1200) Native Resolution
  • 1.35 to 2.2:1 Throw Ratio
  • HDBaseT, VGA, 2x HDMI Inputs
  • Wi-Fi & Ethernet Connectivity
  • VGA Input/Output
  • Analog Audio Inputs and Output
  • Built-In 10-Watt Speaker
  • Includes HDMI Cable & Remote Control

Epson L735U Specs

Image Display
Display System 3-Chip 0.67" Polysilicon TFT LCD
Native Chip Resolution 1920 x 1200 (WUXGA)
Supported Resolutions Minimum: 640 x 480
Maximum: 4K UHD - 3840 x 2160
Maximum Brightness White: 7000 Lumens (ISO)
Color: 7000 Lumens
Uniformity 86%
Aspect Ratio Native: 16:10
Supported: 16:6
Dynamic Contrast Ratio 2,500,000:1
Color Depth 10-Bit (1.07 Billion Colors)
Scan Horizontal: 15 to 135 kHz
Vertical: 23.98 to 85 Hz
Focus Manual
Lens f/1.5 - 1.7 (f = 20 - 31.8 mm)
Lens Shift Vertical: ± 50%
Horizontal: ± 20%
Optical Zoom Manual: 1.6x
Throw Ratio 1.35 to 2.2:1 (80" Screen Size @ 7.64' / 2.33 m)
Projection Size 50 - 500" / 127.0 - 1270.0 cm
Keystone Correction Horizontal: ± 30°
Vertical: ± 30°
Supported HDR Input Formats None
Multi-Input Support (PIP/PBP) Picture-by-Picture (PBP)
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-In Speaker Yes (Mono)
Speaker Power 10W
Projection Tilt Option Yes
Input/Output Connectors
Inputs/Outputs 1 x RJ45 (HDBaseT) Audio, Control, Data, Power, Service, Video
2 x HDMI Audio, Video Input
1 x HDMI Audio, Video Output
1 x DE-15/DB-15 (VGA) Video Input
1 x DE-15/DB-15 (VGA) Video Input/Output
2 x 1/8" / 3.5 mm Mini Audio Input
1 x 1/8" / 3.5 mm Mini Audio Output
1 x USB-A 2.0 Data
1 x USB-A 2.0 Power Output
1 x USB-B 2.0 Service Input
1 x RJ45 (Ethernet) LAN
1 x DE-9/DB-9 (RS-232) Control
Wireless LAN / Wi-Fi Yes, Built-in
Bluetooth None
Light Source Laser Phosphor
Expected Lamp Life Full Brightness: 20,000 Hours
Low Brightness: 30,000 Hours
Fan Noise Full Brightness: 38 dB
Low Brightness: 27 dB
Security Cable Lock Slot
Security Bar
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: 358 W
Full Brightness: 267 W
Standby Mode (Lamp Off): 2 W
Operating Temperature 32 to 113°F / 0 to 45°C
Dimensions (W x H x D) 17.3 x 4.8 x 12.0" / 43.9 x 12.2 x 30.5 cm Excluding Feet
17.3 x 5.4 x 12.6" / 43.9 x 13.7 x 32.0 cm Including Feet
Weight 18.5 lb / 8.4 kg
Packaging Info
Package Weight 25.92 lb
Box Dimensions (LxWxH) 22.1 x 21.1 x 8.2"
