Epson PowerLite 775F – Ultra Short-Throw Laser Projector

Product Overview

The Epson PowerLite 775F (V11HA83120) is a 4,100-lumen Full HD ultra-short-throw laser 3LCD projector built for classrooms, training rooms, and conference spaces. Mounted as close as 13 inches from the wall, this ultra-short-throw laser projector produces images up to 150 inches diagonal while keeping presenters out of the light path. It combines equal 4,100 lumens of color and white brightness with a long-life solid-state laser light source for a low-maintenance large-format display. With built-in Wi-Fi casting and a wide connector set, it fits AV deployments that need flexible installation and multi-device sharing.

Product Description

The PowerLite 775F uses a 0.25 to 0.35:1 throw ratio to place a large image on the wall from a throw distance of just 13 to 35 inches, letting instructors and presenters work at the board without casting shadows. Its native 1920 x 1080 Full HD panel pairs with a 2,500,000:1 dynamic contrast ratio and 10-bit color depth for clean text and saturated graphics. The unit supports 360-degree placement plus portrait and landscape orientation, and built-in edge blending lets integrators combine multiple units into wall-sized images for multi-purpose rooms. Casting is handled over Wi-Fi 5 (802.11ac) or wired Gigabit Ethernet using Epson iProjection, with Miracast for peer-to-peer connections. Connectivity includes three HDMI inputs, VGA in and out, composite video, an RS-232 control port, and an RJ45 LAN port for remote management. The built-in media player runs playlists directly for digital signage, and the optional ELPMB62 mount supports clean wall installation. AV teams often line this model up against the 4K-enhanced Epson PowerLite 810E and the interactive Epson BrightLink 770Fi; compare options across the full Epson projector lineup.

Key Features

• Ultra-short-throw lens — A 0.25 to 0.35:1 throw ratio places up to a 150-inch image from a throw distance of 13 to 35 inches, removing presenter shadows.
• 4,100-lumen 3LCD output — Equal 4,100 lumens of color and white brightness keep Full HD content readable in lit classrooms and meeting rooms.
• Full HD resolution with high contrast — Native 1920 x 1080 panel with a 2,500,000:1 dynamic contrast ratio and 10-bit color for sharp, detailed images.
• Long-life laser light source — Laser phosphor light source rated up to 30,000 hours at full brightness for low-maintenance operation.
• Flexible installation — 360-degree placement plus portrait and landscape orientation suit varied room and signage layouts.
• Built-in edge blending — Combine multiple units into scalable, wall-sized projections for large multi-purpose spaces.
• Wireless and wired casting — Wi-Fi 5 (802.11ac), Gigabit Ethernet, Epson iProjection, and Miracast enable multi-device content sharing.

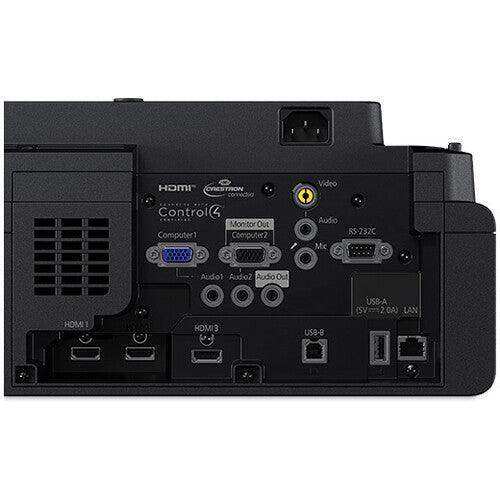

• Integration-ready connectivity — Three HDMI inputs, VGA in/out, composite, RS-232 control, and RJ45 LAN support control systems and remote management.

Typical Applications

• Classroom and lecture hall instruction
• Training room presentations
• Conference room and huddle room displays
• Multi-purpose room and all-hands spaces
• Digital signage in commercial meeting spaces

Technical Specifications

Specifications sourced from Epson's official specification sheet.

Frequently Asked Questions

How far from the wall does the PowerLite 775F mount?
It uses a 0.25 to 0.35:1 throw ratio with a throw distance of 13 to 35 inches, so it can be placed or mounted as little as 13 inches from the projection surface.

What size image can it project?
From 49 up to 150 inches diagonal, with built-in edge blending available to combine units into larger wall-sized images.

How do users share content wirelessly?
It supports Wi-Fi 5 (802.11ac) and wired Gigabit Ethernet casting through Epson iProjection, plus Miracast for peer-to-peer connections.

How does it integrate with an AV control system?
It includes an RS-232 control port, an RJ45 LAN port for remote management, and three HDMI inputs alongside VGA and composite for legacy sources.

Does the laser light source need replacement?
The laser phosphor light source is rated up to 30,000 hours at full brightness, eliminating routine lamp replacement.

Can it be wall-mounted?
Yes. It is wall-mountable with the optional ELPMB62 mount and supports 360-degree placement plus portrait and landscape orientation.

Is it appropriate for commercial use?
Yes. It is designed for classrooms, training rooms, and commercial meeting spaces and is backed by Epson's commercial limited warranty.
