Epson ELPHD02 – HDBaseT Transmitter and Control Pad

Product Overview

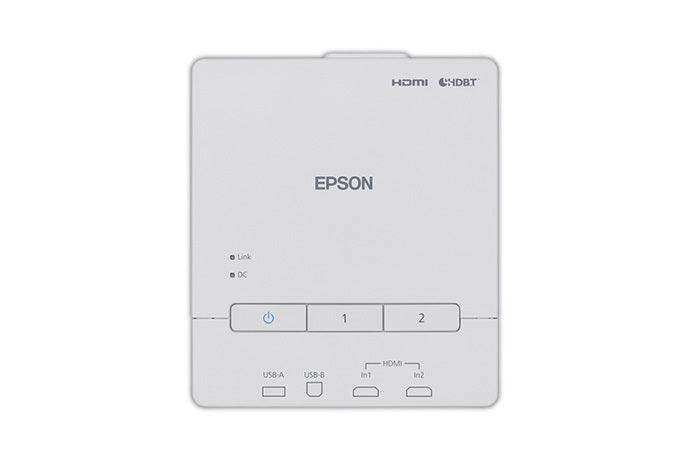

The Epson ELPHD02 is an HDBaseT transmitter and control pad that sends audio, video, and control signals to a compatible Epson PowerLite L-series or Pro L laser projector over a single CAT-6 cable. It lets an integrator place sources away from the projector and still switch inputs and power the projector on and off from the transmitter. With two HDMI inputs plus USB-A/B connectivity, the ELPHD02 HDBaseT transmitter simplifies long-run AV cabling in meeting rooms, lecture halls, and large venues. This wall-mountable control pad consolidates source switching and projector control into one device.

Product Description

HDBaseT carries uncompressed HD video, audio, and control over a single shielded twisted-pair cable, which removes the need to run separate HDMI and control wiring across a room. The ELPHD02 accepts two HDMI sources and provides USB-A and USB-B connectivity, then transmits the selected signal to the projector's HDBaseT input over CAT-6. Buttons on the transmitter switch between HDMI sources and toggle projector power, so an operator controls the display from the lectern or equipment location rather than at the projector itself. Because everything travels on one network-grade cable, the box is well suited to ceiling-mounted projectors where pulling multiple long HDMI runs is impractical. It is compatible with Epson PowerLite L-series laser projectors such as the L510U, L520U, L530U, L610U, L630U, L690-series, L730U, and L770U, as well as Pro L large-venue models including the Pro L1060U, L1070U, and L1075U families that carry an HDBaseT port. For a compatible projector, see the Epson Pro L large-venue laser projector or browse the full Epson projector lineup. Confirm your projector model carries an HDBaseT input before ordering.

Key Features

• Single-cable AV extension — Sends audio and video to the projector over one CAT-6 cable using HDBaseT, simplifying long-distance installations.
• Two HDMI inputs — Connects two high-definition sources for switching at the transmitter.
• USB-A/B connectivity — Provides USB-A and USB-B ports alongside the HDMI inputs.
• Source switching — Front-panel buttons select between connected HDMI sources.
• Projector power control — Powers the compatible projector on and off from the transmitter.
• Wall or surface mounting — Functions as a control pad that can be placed where operators need it.

Typical Applications

• Lecture halls and classrooms with ceiling-mounted laser projectors
• Boardrooms and meeting rooms needing lectern-based source control
• Houses of worship and auditoriums with long cable runs
• Large-venue installs using Pro L projectors with HDBaseT inputs

Technical Specifications

Specifications sourced from Epson's official documentation.

Frequently Asked Questions

Which projectors does the ELPHD02 work with?
It is compatible with Epson PowerLite L-series laser projectors and Pro L large-venue projectors that include an HDBaseT input. Confirm your specific model carries an HDBaseT port before ordering.

What cable does it use?
It transmits audio, video, and control to the projector over a single CAT-6 cable using HDBaseT.

How many sources can I connect?
The transmitter has two HDMI inputs plus USB-A and USB-B connectivity, and its buttons switch between the HDMI sources.

Can it turn the projector on and off?
Yes. The control pad can power the compatible projector on and off in addition to switching sources.

Why use HDBaseT instead of a long HDMI run?
HDBaseT carries video, audio, and control over one network-grade cable, which is more reliable and easier to install over long distances than multiple HDMI cables to a ceiling-mounted projector.
