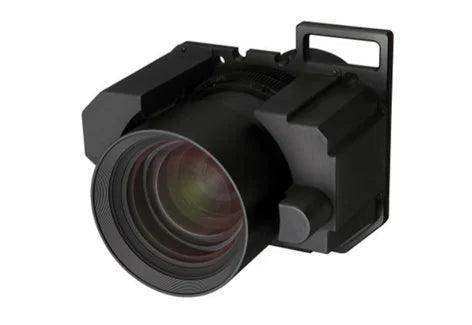

Epson ELPLU05 – Short-Throw Zoom Projector Lens

Product Overview

The Epson ELPLU05 is a short-throw zoom projector lens engineered for Epson Pro L-Series large-venue laser projectors. With a 0.91–1.09 throw ratio, this short-throw zoom lens places very large images on screen from a relatively close projector position. It is an interchangeable lens built for the Pro L25000U and Pro L30000U platforms, making it a practical choice for rental and staging, auditoriums, and short-throw fixed installs.

Product Description

The ELPLU05 covers a throw ratio of 0.91 to 1.09 (referenced to a 200-inch screen), giving integrators a short-throw zoom range that suits rooms where the projector must sit close to the screen. As an interchangeable lens for the Pro L-Series, it allows a single chassis to be re-purposed across multiple venues simply by swapping optics. The lens offers vertical lens shift of +55% and horizontal lens shift of +/-25%, supporting accurate image placement without repositioning the projector body. Its F-number ranges from 2.4 to 2.6 across the zoom range. This lens is well suited to rental and staging crews who need a short-throw option that pairs with the high-output Pro L-Series laser engines, as well as fixed installs in lecture halls and houses of worship where projector placement is constrained. It is compatible with the Epson Pro L25000U, Pro L30000UNL, and Pro L30002UNL large-venue laser projectors. Integrators can review the broader Epson projector lineup for the matching chassis, and consider the Pro L20000UNL platform for lower-lumen requirements.

Key Features

• Short-throw zoom range — 0.91 to 1.09 throw ratio (200-inch reference) for large images at short projector-to-screen distances.
• Interchangeable lens design — Swaps onto compatible Pro L-Series chassis to re-task a single projector across venues.
• Vertical lens shift +55% — Allows the image to be raised without moving the projector body.
• Horizontal lens shift +/-25% — Supports off-center mounting and precise alignment.
• F-number 2.4 to 2.6 — Defined optical characteristics across the zoom range for predictable planning.
• Large-venue compatibility — Designed for Epson Pro L25000U, Pro L30000UNL, and Pro L30002UNL laser projectors.

Typical Applications

• Rental and staging deployments on Epson Pro L-Series laser platforms
• Auditoriums and large lecture halls with constrained projector placement
• Houses of worship requiring short-throw projection
• Corporate general sessions and ballrooms
• Short-throw projection mapping and event production

Technical Specifications

Specifications sourced from Epson's official documentation.

Frequently Asked Questions

Which projectors does the ELPLU05 fit?
It is an interchangeable lens for the Epson Pro L25000U, Pro L30000UNL, and Pro L30002UNL large-venue laser projectors.

What is the throw ratio?
The ELPLU05 offers a short-throw zoom range of 0.91 to 1.09, referenced to a 200-inch screen. Use Epson's throw distance calculator to confirm exact distances for your screen size.

How much lens shift is available?
Vertical lens shift is +55% and horizontal lens shift is +/-25%, allowing flexible image positioning without moving the chassis.

Can this lens be swapped on-site?
Yes. It is an interchangeable lens designed for tool-light installation on compatible Pro L-Series projectors, which suits rental and staging workflows.

Is it suitable for large-venue use?
Yes. It is engineered specifically for Epson's Pro L-Series large-venue laser projectors used in auditoriums, houses of worship, and event production.

What screen size can it support?
The throw ratio is referenced to a 200-inch screen; larger and smaller screens are supported depending on projector placement and room geometry.
