Epson ELPLM13 – Middle-Throw Zoom Projector Lens

Product Overview

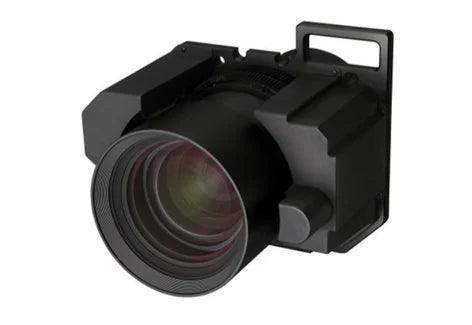

The Epson ELPLM13 is a middle-throw zoom projector lens engineered for Epson Pro L-Series large-venue laser projectors. With a 2.3–3.46 throw ratio, this middle-throw zoom lens covers the longer mid-range projection distances common to larger auditoriums and balcony-served rooms. It is an interchangeable lens (Middle-Throw #2) built for the Pro L25000U platform, with wide lens shift for off-axis flexibility.

Product Description

The ELPLM13 (Middle-Throw #2) covers a throw ratio of 2.3 to 3.46 referenced to a 200-inch screen, extending the mid-range coverage beyond the ELPLM12 for larger rooms where the projector sits farther from the screen. As an interchangeable lens for the Pro L-Series, it allows a single chassis to be re-tasked across venues by swapping optics. The lens offers wide lens shift, with a vertical range of +65% and a horizontal range of +/-30%, giving integrators substantial latitude for off-center mounting and precise alignment without moving the projector body. Its F-number ranges from 1.9 to 2.4 across the zoom range. This optic is commonly specified for larger auditoriums, houses of worship with deeper rooms, lecture halls, and rental and staging crews using the Pro L-Series laser engines. It is compatible with the Epson Pro L25000U large-venue laser projector platform. Integrators can review the full Epson projector lineup to match the appropriate chassis, including the Pro L30000UNL, or the Pro L20000UNL platform for lower-output needs.

Key Features

• Middle-throw zoom range — 2.3 to 3.46 throw ratio (200-inch reference) for longer mid-range projection distances.
• Wide lens shift — Vertical +65% and horizontal +/-30% for flexible off-axis mounting.
• Interchangeable lens design — Swaps onto a compatible Pro L-Series chassis to re-task a single projector.
• F-number 1.9 to 2.4 — Defined optical characteristics across the zoom range.
• Large-venue compatibility — Designed for the Epson Pro L25000U laser projector platform.

Typical Applications

• Rental and staging deployments on Epson Pro L-Series laser platforms
• Larger auditoriums and lecture halls at longer mid-range distances
• Houses of worship with deeper rooms and balcony coverage
• Corporate general sessions and ballrooms
• Event production requiring flexible off-axis lens shift

Technical Specifications

Specifications sourced from Epson's official documentation.

Frequently Asked Questions

Which projectors does the ELPLM13 fit?
It is an interchangeable middle-throw lens for the Epson Pro L25000U large-venue laser projector platform.

What is the throw ratio?
The ELPLM13 offers a middle-throw zoom range of 2.3 to 3.46, referenced to a 200-inch screen, covering the longer end of mid-range distances.

How does it differ from the ELPLM12?
The ELPLM13 (Middle-Throw #2) reaches longer throw distances than the ELPLM12 (Middle-Throw #1), suiting larger rooms where the projector sits farther back.

How much lens shift is available?
Vertical lens shift is +65% and horizontal lens shift is +/-30%, supporting flexible off-axis mounting.

Can this lens be swapped on-site?
Yes. It is an interchangeable lens designed for installation on the compatible Pro L-Series projector.

Is it suitable for large-venue installations?
Yes. It is engineered for Epson's Pro L-Series large-venue laser projectors used in auditoriums, houses of worship, and event production.
