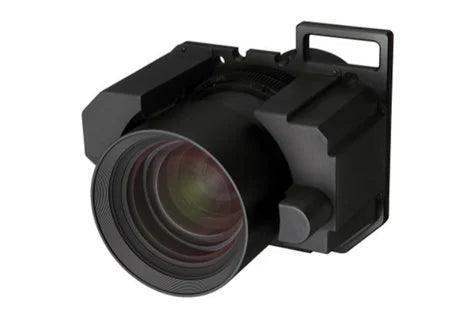

Epson ELPLM12 – Middle-Throw Zoom Projector Lens

Product Overview

The Epson ELPLM12 is a middle-throw zoom projector lens engineered for Epson Pro L-Series large-venue laser projectors. With a 1.74–2.35 throw ratio, this middle-throw zoom lens covers the workhorse mid-range projection distances found in most auditoriums and event rooms. It is an interchangeable lens (Middle-Throw #1) built for the Pro L25000U platform, with wide lens shift for off-axis flexibility.

Product Description

The ELPLM12 (Middle-Throw #1) covers a throw ratio of 1.74 to 2.35 referenced to a 200-inch screen, making it the mid-range option suited to the majority of auditorium and event-room geometries. As an interchangeable lens for the Pro L-Series, it allows a single chassis to be re-tasked across venues by swapping optics. The lens offers wide lens shift, with a vertical range of +65% and a horizontal range of +/-30%, giving integrators substantial latitude for off-center mounting and precise alignment without moving the projector body. Its F-number ranges from 1.9 to 2.1 across the zoom range, with a zoom ratio of 1.4 and a focal length of 54.7mm to 73.0mm. This optic is a common default specification for houses of worship, corporate general sessions, lecture halls, and rental and staging crews using the Pro L-Series laser engines. It is compatible with the Epson Pro L25000U large-venue laser projector platform. Integrators can review the full Epson projector lineup to match the appropriate chassis, including the Pro L30000UNL, or the Pro L20000UNL platform for lower-output needs.

Key Features

• Middle-throw zoom range — 1.74 to 2.35 throw ratio (200-inch reference) for mid-range projection distances.
• Wide lens shift — Vertical +65% and horizontal +/-30% for flexible off-axis mounting.
• Interchangeable lens design — Swaps onto a compatible Pro L-Series chassis to re-task a single projector.
• Zoom ratio 1.4 — Adjustable image size without moving the projector body.
• F-number 1.9 to 2.1, focal length 54.7–73.0mm — Defined optical characteristics for predictable planning.
• Large-venue compatibility — Designed for the Epson Pro L25000U laser projector platform.

Typical Applications

• Rental and staging deployments on Epson Pro L-Series laser platforms
• Auditoriums and large lecture halls at mid-range throw distances
• Houses of worship with standard projector placement
• Corporate general sessions and ballrooms
• Event production requiring flexible off-axis lens shift

Technical Specifications

Specifications sourced from Epson's official documentation.

Frequently Asked Questions

Which projectors does the ELPLM12 fit?
It is an interchangeable middle-throw lens for the Epson Pro L25000U large-venue laser projector platform.

What is the throw ratio?
The ELPLM12 offers a middle-throw zoom range of 1.74 to 2.35, referenced to a 200-inch screen, covering typical mid-range distances.

How much lens shift is available?
Vertical lens shift is +65% and horizontal lens shift is +/-30%, supporting flexible off-axis mounting.

Why is this called Middle-Throw #1?
It is the first lens in Epson's middle-throw range for the Pro L-Series, covering the shorter end of mid-range throw distances; ELPLM13 and ELPLM14 extend further out.

Can this lens be swapped on-site?
Yes. It is an interchangeable lens designed for installation on the compatible Pro L-Series projector.

Is it suitable for large-venue installations?
Yes. It is engineered for Epson's Pro L-Series large-venue laser projectors used in auditoriums, houses of worship, and event production.
