Product Overview
The Epiphan DVI2PCIe AV Kit is an optional expansion kit that adds video and audio inputs to the DVI2PCIe Duo video capture card. Built for AV integrators and system builders who need more source connectivity from their PCIe capture card, it supplies interchangeable daughter boards for S-Video and analog audio capture. It is a connectivity expansion kit for extended DVI2PCIe Duo functionality in recording and capture workstations.
Product Description

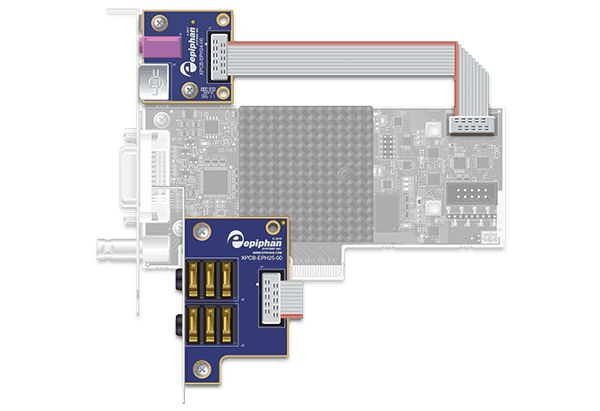

The DVI2PCIe AV Kit expands the number of video and audio inputs your DVI2PCIe Duo video grabber supports. The kit includes two daughter boards that can be interchanged and connected simultaneously, plus a ribbon cable for connection to the PCIe capture card. The S-Video daughter board adds composite-style standard-definition video capture at 720 x 480, while the audio daughter board adds two quarter-inch left/right TRS inputs (balanced or unbalanced) and a 3.5mm line-in.
Both full-height and low-profile brackets are included so the kit can be installed in standard tower cases or compact and 2U chassis. The kit is an accessory for the DVI2PCIe Duo and requires that card to function; both are available in the Epiphan collection.
Key Features
- Expanded input connectivity — The kit adds S-Video and analog audio inputs to a DVI2PCIe Duo capture card.
- Two interchangeable daughter boards — The S-Video and audio boards can be swapped or connected at the same time to suit the source mix.
- Analog audio capture — Two quarter-inch left/right TRS inputs (balanced or unbalanced) plus a 3.5mm line-in handle a range of audio sources.
- Standard-definition video input — The S-Video connector captures 720 x 480 video in NTSC, PAL, or SECAM signaling.
- Flexible mounting — Included full-height and low-profile brackets fit both standard tower cases and compact or 2U chassis.
- Ribbon cable included — The kit ships with the ribbon cable needed to connect the daughter boards to the PCIe card.
Technical Specifications
| Video Input | |
|---|---|
| Connector | 1 x S-Video |
| Resolution | 720 x 480 |
| Signaling | NTSC, PAL, or SECAM |
| Color Resolution | 120 lines horizontal |
| Audio Inputs | |
| Connectors | 2 x 1/4 in left/right TRS (balanced or unbalanced); 1 x 3.5 mm line-in |
| System and Physical | |
| OS Support | Windows (32-bit and 64-bit) |
| S-Video Board | 1.375 x 1.375 in / 35 x 35 mm |
| TRS Board | 1.75 x 2.1667 in / 45 x 64 mm |
| In the Box | |
| Included | Two daughter boards, ribbon cable, full-height and low-profile brackets |
