Nanolumens Engage Series HDS 2.5mm – 216" Direct-View LED Video Wall, Full HD 1920x1080, TAA Compliant

Product Overview

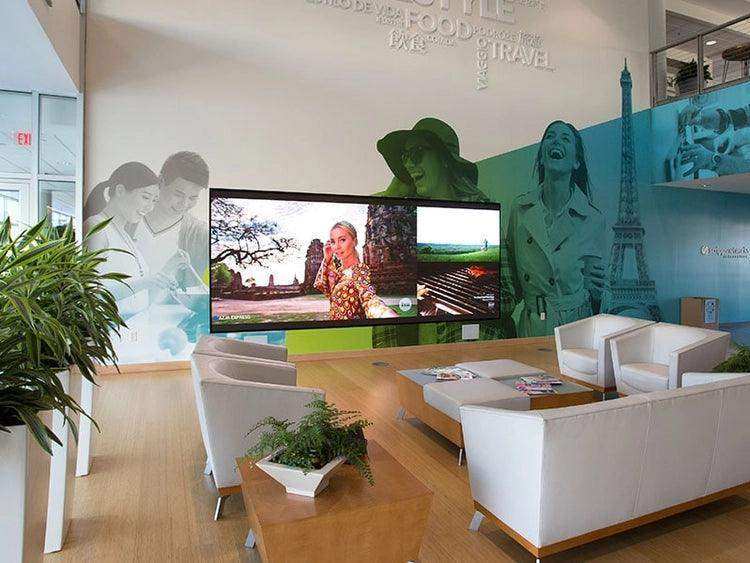

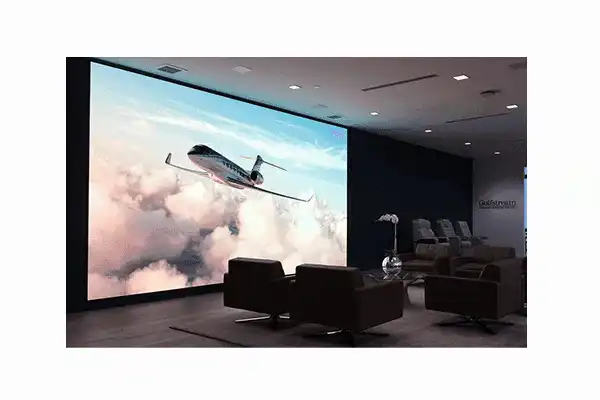

The Nanolumens Engage Series HDS 2.5mm at 216" is the largest-format complete HD direct-view LED solution in the Engage line, purpose-built for large-audience environments where viewing distances exceed 20 feet. At 1200 nits — the highest brightness rating in the Engage HDS series — this dvLED display delivers consistent, high-contrast imagery in ambient-light-heavy spaces such as large auditoriums, houses of worship, and public lobbies. The 2.5mm pixel pitch is optimized for longer optimal viewing distances, providing smooth, artifact-free imagery at scale without the cost premium of finer-pitch panels. Designed and assembled in the USA, this solution ships TAA compliant and includes everything required for a complete installation-ready deployment.

Product Description

At 216 inches diagonal, the Engage HDS 2.5mm delivers a full 1920×1080 native resolution across an 8×8 module array. Each 600×337.5mm module resolves at 240×135 pixels, and the completed wall produces 1200 nits of peak brightness — making it one of the most capable indoor dvLED displays available for large-venue applications where projectors fall short and LCD video walls produce distracting bezels.

The 2.5mm pixel pitch is the correct specification when your audience is seated or standing at distances of 20 feet or greater. At that range, the pixel structure disappears entirely and the display reads as a continuous, high-fidelity image surface. Specifying a finer pitch for this application adds cost without a perceptible quality benefit — making the 2.5mm the technically and financially sound choice for auditoriums, arenas, and large multipurpose spaces.

Every Engage HDS complete solution includes submittal drawings, structural framing, custom mount points, a spares kit, and a Digital Interface Unit — reducing coordination overhead for AV integrators and simplifying the procurement process for government and institutional buyers. The front-serviceable module design means maintenance technicians access the display from the front face, eliminating the need for rear access corridors or lift equipment in most installations.

AWARE® remote monitoring is available upon request, and MegapixelVR compatibility is included. The 6-year Nixel-to-Pixel warranty — covering individual pixel-level components — provides the long-term performance assurance institutional buyers require. With a rated lifetime exceeding 100,000 hours and operating temperatures from 0–50°C, this display is built for continuous, high-demand operation. Note: price does not include installation, integration, ancillary equipment, freight, or field engineering services.

Key Features

• 1200 Nits Peak Brightness — Highest brightness rating in the Engage HDS series; maintains image quality in ambient-light environments found in auditoriums and lobbies.
• 216" Diagonal / 8×8 Module Array — The largest standard HD format in the Engage line, delivering a commanding visual presence in large-venue installations.
• 2.5mm Pixel Pitch — Optimized for viewing distances of 20 feet and beyond; delivers smooth, continuous imagery at large scale without visible pixel structure.
• Native Full HD 1920×1080 — Each completed wall produces true 1080p resolution with no upscaling, using a 240×135 pixel-per-module configuration.
• Front-Serviceable Modules — Individual modules are accessed and replaced from the display face, eliminating rear-access requirements and simplifying field maintenance.
• TAA Compliant, USA Assembled — Meets Trade Agreements Act requirements; designed and assembled in the United States for government, federal, and institutional procurement.
• 6-Year Nixel-to-Pixel Warranty — Pixel-level warranty coverage over six years provides the long-term assurance required by institutional and government buyers.
• Complete Solution Package — Includes submittal drawings, structural framing, custom mount points, spares kit, and Digital Interface Unit; no hidden line items.
• AWARE® Monitoring Compatible — Optional remote health monitoring provides real-time diagnostics and proactive alerting for mission-critical installations.
• MegapixelVR Enabled — Supports MegapixelVR workflows for advanced content management and broadcast-grade processing pipelines.
• 178°H / 178°V Maximum Viewing Angle — Wide off-axis performance ensures consistent image quality across large audiences in fan-shaped or wide seating arrangements.
• >100,000-Hour Rated Lifetime — Long operating life reduces total cost of ownership and replacement frequency over the installation's service life.

Typical Applications

• Auditorium
• House of Worship
• Multi-Purpose Room
• All-Hands Room
• Digital Signage
• Transportation Hub
• Government Space
• Broadcast Studio

Technical Specifications

Frequently Asked Questions

What is the minimum recommended viewing distance for the 2.5mm pixel pitch?
The optimal minimum viewing distance for a 2.5mm pixel pitch display is approximately 10–12.5 feet, with the ideal audience range beginning at 20 feet and beyond. At those distances, the pixel structure is imperceptible and the image reads as a seamless, continuous surface — which is why the 2.5mm is specified for large auditoriums, worship venues, and public lobbies rather than conference rooms or boardrooms.

Why choose 2.5mm over a finer pixel pitch for a large auditorium?
For audiences seated 20+ feet from the display, a 2.5mm pitch provides equivalent perceived image quality to finer-pitch panels at a meaningfully lower cost per square foot. Specifying 0.9mm or 1.2mm for a 216" installation at that viewing distance adds significant budget without a visible quality benefit. The 2.5mm is the technically appropriate specification for this application.

Is this display TAA compliant?
Yes. The Engage Series HDS is designed and assembled in the United States and is TAA compliant, satisfying requirements for federal government, GSA schedule, and defense procurement.

What is included in the "complete solution" package?
The complete solution includes submittal drawings, structural framing, custom mount points, a spares kit, and a Digital Interface Unit. It does not include installation labor, field engineering, integration services, ancillary equipment, or freight — those line items should be scoped separately with your AV integrator.

Is the display front-serviceable?
Yes. All Engage HDS modules are accessed and replaced from the front face of the display. This eliminates the need for rear access corridors or dedicated service pathways behind the wall, which is a significant advantage in permanent architectural installations.

What warranty does the Engage HDS carry?
The Engage Series HDS includes a 6-year Nixel-to-Pixel warranty, which covers individual pixel-level components across the full display surface for six years from the date of purchase.

Can this display be curved?
No. The Engage HDS series is a flat-panel direct-view LED system and is not curvable. If your installation requires a curved display surface, contact Creation Networks to discuss alternative Nanolumens product lines.

Is AWARE® monitoring included?
AWARE® remote monitoring is available upon request and is not included by default. It provides real-time health diagnostics and proactive alerting, which is recommended for mission-critical or unattended installations. Contact Creation Networks at creationnetworks.net to add AWARE® to your order.
