Nanolumens Engage Series HDS 1.8mm – 325" 4K dvLED Complete Solution

Product Overview

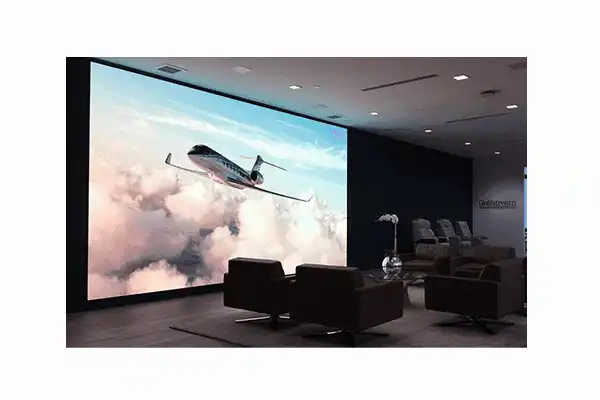

The Nanolumens Engage Series HDS 1.8mm at 325" diagonal is a large-format direct-view LED video wall engineered for mission-critical environments where screen size, image clarity, and operational reliability are non-negotiable. At 1.8mm pixel pitch, this dvLED display delivers sharp 4K resolution across a 3840×2160 native canvas, making it a strong fit for command centers, large federal facilities, and auditoriums where viewing distances exceed 15 feet. Delivered as a turnkey complete solution, it ships with submittal drawings, custom structural framing, mount points, a spares kit, and a 4K Digital Interface Unit — no third-party mounting hardware required. Designed and assembled in the USA, the Engage HDS 1.8mm is TAA compliant and procurement-ready for government and federal agencies.

Product Description

At 325" diagonal, the Engage Series HDS 1.8mm is the largest format in the Engage lineup — purpose-built for large-venue applications where display presence and coverage area are as important as image fidelity. The 1.8mm pixel pitch produces 850 nits of peak brightness with a native 3840×2160 resolution, supporting detailed 4K content rendering across a display surface measured in square feet, not inches. A 6×6 module array per Full HD zone means the wall scales predictably, and each 600×337.5mm module maintains precise uniformity across the entire surface.

The display carries a 178°H × 178°V maximum viewing angle, ensuring consistent image quality from virtually any seat in a large room. At the L50 half-brightness threshold, horizontal and vertical viewing angles remain at 160°, which is well-suited for wide auditorium seating arrangements and open command floor layouts. The front-serviceable design means maintenance and module replacement can be performed from the front face — no rear access corridor or swing-out structure required.

Power consumption at maximum draw is 41.2 W/sq ft, with average consumption of 12.3 W/sq ft — among the most efficient in the Engage series. The display supports input voltages of 110/120/208/220/240 VAC single phase, providing electrical flexibility across building types. Output bit depth is 8-bit standard (16.7M colors) with optional 10-bit support for over one billion colors. AWARE® monitoring is available upon request for remote diagnostics and uptime tracking. MegapixelVR is also enabled, supporting advanced content management workflows.

This complete solution package covers everything required to bring the wall from delivery to display-ready: engineered submittal drawings, custom structural framing, integrated mount points (no third-party hardware needed), a spares kit, and a 4K Digital Interface Unit. Price does not include installation labor, field engineering, integration services, ancillary equipment, or freight. Custom sizes are available upon request. The Engage HDS 1.8mm carries Nanolumens' 6-year Nixel-to-Pixel warranty and is rated for over 100,000 hours of operational life.

Key Features

• 1.8mm Pixel Pitch — Delivers 850 nits of brightness with a 320×180 module resolution, optimized for viewing distances typically starting at 12–18 feet.
• 325" Diagonal Display — Largest format in the Engage Series, providing maximum visual coverage for large venues, auditoriums, and command floors.
• Native 4K Resolution (3840×2160) — Full Ultra HD pixel canvas enables detailed content rendering across the full display surface.
• TAA Compliant — Designed and assembled in the USA; meets Trade Agreements Act requirements for federal, DoD, and government procurement.
• Front-Serviceable Design — Module access from the front face eliminates the need for rear access space, simplifying installation in built-out environments.
• 4K Digital Interface Unit Included — Signal processing and 4K content distribution hardware ships as part of the complete solution.
• 178° Viewing Angle — Maximum horizontal and vertical viewing angles support large rooms with distributed seating.
• 6-Year Nixel-to-Pixel Warranty — Comprehensive coverage at the pixel level, not just the module, for long-term operational confidence.
• AWARE® Monitoring (upon request) — Remote display health monitoring for proactive maintenance in mission-critical deployments.
• Custom Structural Framing Included — Engineered mount points and framing ship with the solution; no third-party mounting hardware required.
• 100,000+ Hour Rated Lifetime — Designed for continuous-use environments with minimal performance degradation over time.
• MegapixelVR Enabled — Supports advanced content management and visualization workflows for complex AV environments.

Typical Applications

• Command center
• Control room
• Auditorium
• Government space
• All-hands room
• Multi-purpose room
• Broadcast studio

Technical Specifications

Frequently Asked Questions

Is 1.8mm the right pixel pitch for my space?

The 1.8mm pixel pitch is best suited for environments where viewers are typically 12 feet or more from the display surface. For a 325" wall, this pitch delivers a clear, detailed image at the distances common in large auditoriums, command centers, and open briefing rooms. If your primary viewing distance is under 10 feet, consider the 0.9mm or 1.2mm Engage variants.

Is this product TAA compliant?

Yes. The Engage Series HDS 1.8mm is designed and assembled in the United States and meets Trade Agreements Act (TAA) compliance requirements, making it eligible for federal, DoD, GSA schedule, and other government procurement vehicles.

What does the complete solution package include?

The complete solution includes engineered submittal drawings, custom structural framing, integrated mount points (no third-party hardware needed), a spares kit, and a 4K Digital Interface Unit. Installation labor, field engineering, integration services, ancillary equipment, and freight are not included in the price.

What is the 6-year Nixel-to-Pixel warranty?

Nanolumens' Nixel-to-Pixel warranty covers the display at the individual pixel level for six years — not just at the module or panel level. This provides more granular protection for mission-critical deployments where display uniformity and uptime are essential.

How is this display serviced after installation?

The Engage HDS 1.8mm is front-serviceable, meaning module access, replacement, and maintenance are performed from the front face of the display. Rear access space is not required, which significantly simplifies installation planning in built-out wall cavities or tight AV bays.

What content management system does this display use?

The Engage Series HDS 1.8mm is MegapixelVR enabled, supporting advanced content management and video wall control workflows. AWARE® remote monitoring is also available upon request for proactive health tracking and diagnostics.

Can this display be configured in a custom size?

Yes. While the 325" 4K configuration is the standard offering, Nanolumens and Creation Networks can accommodate custom dimensions. Contact our AV solutions team to discuss custom sizing, aspect ratios, and configuration options.

What viewing distance is recommended for the 1.8mm pitch at 325"?

A general guideline for 1.8mm pixel pitch places the minimum comfortable viewing distance at approximately 12–18 feet. At 325" diagonal, the display is designed to serve large rooms where most seats will naturally fall within that range or beyond, making pixel structure imperceptible under normal use.
