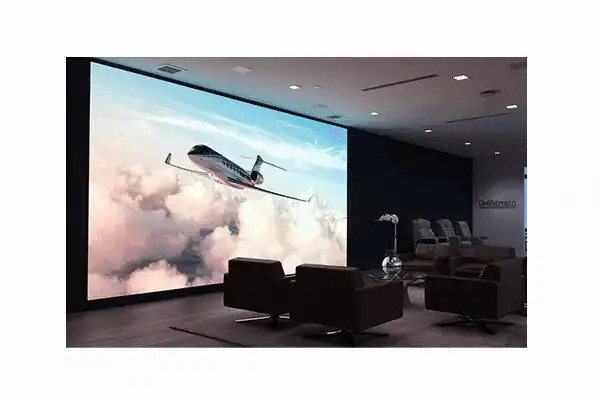

Nanolumens Engage Series HDS 1.5mm – 135" Direct-View LED Video Wall, Full HD 1920x1080, TAA Compliant

Product Overview

The Nanolumens Engage Series HDS 1.5mm at 135" is a mid-range direct-view LED solution delivering Full HD 1920×1080 resolution across a 5×5 module array, designed for training rooms, multi-purpose spaces, boardrooms, and government facilities where audiences are typically positioned between 10 and 18 feet from the display. The 1.5mm pixel pitch provides sufficient pixel density to render sharp text and data content at those distances without the cost premium of a finer-pitch panel. At 700 nits in a controlled indoor environment, it maintains clear, readable imagery across a range of ambient lighting conditions common in institutional and corporate facilities. Like all Engage HDS products, it is TAA compliant and assembled in the United States.

Product Description

The 135" Engage HDS 1.5mm is composed of a 5×5 array of 600×337.5mm modules, each resolving at 384×216 pixels, yielding a native 1920×1080 display surface. At this pixel density, the display handles the full range of content types encountered in training environments and multi-purpose rooms: slide presentations, video playback, application sharing, and data dashboards all render clearly at the display's target viewing distances without requiring a finer-pitch specification.

Training rooms and multi-purpose spaces are among the most versatile applications in commercial AV. They are asked to serve small group breakouts, full-room presentations, video conferences, and hybrid meeting sessions — often in the same day. The 135" 1.5mm format provides a large enough image surface to support room-wide visibility while maintaining the pixel density to keep text content legible for participants closest to the screen. It is the practical mid-point in the Engage HDS HD line: more pixel density than the 1.8mm at a format that fits rooms where the 2.5mm would be oversized.

Government facilities and institutional buyers will find the 1.5mm at 135" well-matched to conference rooms and departmental briefing spaces that host mixed audiences — from small working groups to larger all-hands sessions. The TAA-compliant, USA-assembled construction satisfies federal procurement requirements, and the included submittal documentation package simplifies engineering review for government construction projects. Front-serviceable modules allow technicians to address field issues without disrupting the room layout or requiring access behind the wall.

The complete solution includes submittal drawings, structural framing, custom mount points, a spares kit, and a Digital Interface Unit. AWARE® remote monitoring is available upon request. MegapixelVR is enabled. The 6-year Nixel-to-Pixel warranty covers pixel-level components for six years from purchase. Rated for 100,000+ hours of continuous operation at 0–50°C. Price does not include installation, integration, ancillary equipment, freight, or field engineering services.

Key Features

• 1.5mm Pixel Pitch — Mid-range pixel density optimized for viewing distances of 10–18 feet; the practical specification for training rooms, multi-purpose spaces, and institutional conference rooms.
• 135" Diagonal / 5×5 Module Array — Mid-format display footprint suited to rooms that are too large for 109" but do not require the scale of a 162" or 216" installation.
• 384×216 Pixels Per Module — Sufficient pixel density to render sharp typography, data dashboards, and presentation content clearly at target viewing distances.
• Native Full HD 1920×1080 — True 1080p resolution; compatible with standard HD source equipment without upscaling or format conversion.
• 700 Nits Brightness — Calibrated for controlled indoor environments; provides clear imagery without excessive brightness in meeting and training room settings.
• Front-Serviceable Modules — Modules accessed from the display face; no rear access required, preserving room layout and minimizing service disruption in occupied facilities.
• TAA Compliant, USA Assembled — Satisfies Trade Agreements Act requirements for government agencies, educational institutions, and federal contractors.
• 6-Year Nixel-to-Pixel Warranty — Pixel-level warranty for six years; meets long-term coverage requirements for institutional and government contracts.
• Complete Solution Package — Submittal drawings, structural framing, custom mount points, spares kit, and Digital Interface Unit included; no hidden line items.
• AWARE® Monitoring Compatible — Optional remote health monitoring for facilities with high utilization or limited on-site AV support staff.
• MegapixelVR Enabled — Supports advanced content management and signal processing workflows for sophisticated AV system integrations.
• >100,000-Hour Rated Lifetime — Extended operational life reduces total cost of ownership for institutional deployments.

Typical Applications

• Training Room
• Multi-Purpose Room
• Boardroom
• Government Space
• Conference Room
• All-Hands Room
• Commercial Meeting Space
• Auditorium

Technical Specifications

Frequently Asked Questions

What viewing distances is the 1.5mm pixel pitch designed for?
The 1.5mm pixel pitch performs best at viewing distances of approximately 10 to 18 feet. At those distances, individual pixels are not visible and the display reads as a continuous image surface. It is the appropriate mid-range specification between the close-viewing 1.2mm (suited to viewers within 8–12 feet) and the 1.8mm (suited to 14–25 feet). For training rooms and multi-purpose spaces where the nearest viewer is seated 10–12 feet from the screen, 1.5mm is typically the correct specification.

How does the 1.5mm compare to the 1.2mm Engage HDS?
The 1.2mm at 109" offers higher pixel density per module (480×270 vs. 384×216) and a smaller physical format — suited for conference rooms where viewers are seated 8–12 feet away. The 1.5mm at 135" provides a larger display surface for rooms with greater depth or larger audiences, with pixel density appropriate for its longer target viewing distances. For rooms where the nearest viewer is beyond 10–12 feet, the 1.5mm is the better match.

Is the 1.5mm at 135" appropriate for government training facilities?
Yes. The 135" format is well-sized for departmental training rooms and government conference spaces hosting 15–40 attendees. It is TAA compliant and USA assembled, satisfying federal procurement requirements. The included submittal drawings simplify government construction project documentation. Contact Creation Networks for GSA and contract vehicle pricing.

What is included in the complete solution?
The complete solution includes submittal drawings, structural framing, custom mount points, a spares kit, and a Digital Interface Unit. Installation labor, field engineering, integration services, ancillary equipment, and freight are not included and should be scoped separately with your AV integrator.

Is this display TAA compliant?
Yes. The Engage HDS series is designed and assembled in the United States and is fully TAA compliant for government, defense, and institutional procurement.

What warranty is included?
The 6-year Nixel-to-Pixel warranty covers individual pixel-level components for six years from the date of purchase, providing the long-term coverage institutional procurement offices typically require.

Is the display front-serviceable?
Yes. All modules are accessed and replaced from the front face of the display, with no requirement for rear access corridors or wall penetration — which is particularly important in occupied training rooms and government facilities where minimizing disruption during maintenance is a priority.

Can the display be curved or angled?
No. The Engage HDS series is a flat-panel direct-view LED system and is not curvable. If a curved installation is required, contact Creation Networks at creationnetworks.net to discuss other Nanolumens product lines that support curved configurations.
