Nanolumens Engage Series HDS 1.2mm – 216" 4K dvLED Complete Solution

Product Overview

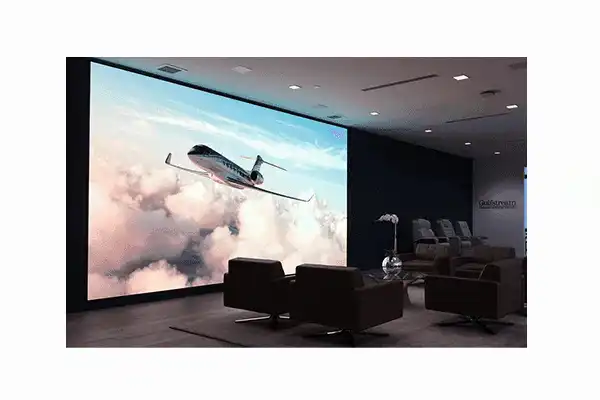

The Nanolumens Engage Series HDS 1.2mm at 216" diagonal is a direct-view LED video wall that balances pixel density with viewing range — a strong specification for large boardrooms, command centers, and government facilities where viewers are typically 8 to 14 feet from the display. At 1.2mm pixel pitch and native 4K resolution (3840×2160), it delivers 700 nits of brightness across a 216" surface with the image sharpness expected in high-stakes decision environments. The ENG-12-216-COMP-4K ships as a complete solution with custom framing, engineered mount points, submittal drawings, a spares kit, and a 4K Digital Interface Unit. Designed and assembled in the USA, it is TAA compliant and ready for institutional and federal procurement.

Product Description

The 1.2mm Engage HDS occupies the middle ground between the finest-pitch 0.9mm control room specification and the larger-format 1.5mm and 1.8mm auditorium configurations. At 216" diagonal with a 480×270 module resolution and a 4×4 module array per Full HD zone, it delivers the image clarity required for data visualization, detailed presentations, and multi-feed video content in spaces where decision-makers and operators need to read information clearly across a table or workstation setup.

The display achieves 700 nits of peak brightness with L50 viewing angles of 170°H × 170°V and a maximum angle of 178° in both axes. This wide viewing cone is particularly useful in large boardrooms and command center environments where display content must be visible to participants at extreme angles from the screen. The front-serviceable construction eliminates the need for rear access during maintenance — important for boardroom and conference room installations where the display is typically flush-mounted against a finished wall.

Power consumption is 53.7 W/sq ft at maximum draw and 16.1 W/sq ft at average, with input voltage support spanning 110/120/208/220/240 VAC single phase. Output bit depth is 8-bit standard (16.7M colors) with optional 10-bit support for over one billion colors. AWARE® monitoring is available upon request, and the display is MegapixelVR enabled for advanced content management and multi-source display control in complex AV environments.

Each complete solution includes engineered submittal drawings, custom structural framing, integrated mount points, a spares kit, and a 4K Digital Interface Unit — no third-party mounting hardware required. The display carries Nanolumens’ 6-year Nixel-to-Pixel warranty and is rated for over 100,000 hours of operational life. Price does not include installation labor, field engineering, integration services, ancillary equipment, or freight. Custom sizes are available upon request.

Key Features

• 1.2mm Pixel Pitch — Delivers 700 nits with a 480×270 module resolution; optimized for viewing distances of 8 to 14 feet in large boardrooms and command centers.
• 216" Diagonal Display — Large-format video wall sized for boardroom and command center environments that require significant visual presence without a full auditorium-scale footprint.
• Native 4K Resolution (3840×2160) — Full UHD pixel canvas for data visualization, multi-feed video, and high-resolution presentation content.
• TAA Compliant — Designed and assembled in the USA; eligible for federal, DoD, and GSA schedule procurement.
• Front-Serviceable Design — Module access from the front face; no rear access space required, simplifying flush-mount boardroom and conference room installations.
• 4K Digital Interface Unit Included — Signal processing and 4K distribution hardware included in the complete solution package.
• 178° Max Viewing Angle — Wide horizontal and vertical coverage with L50 angles of 170°H / 170°V for distributed seating arrangements.
• 6-Year Nixel-to-Pixel Warranty — Pixel-level warranty coverage for six years, providing long-term protection for boardroom and institutional deployments.
• AWARE® Monitoring (upon request) — Remote diagnostics and health monitoring for continuous and high-availability environments.
• Custom Framing and Mount Points Included — Engineered mounting solution ships with the display; no third-party hardware required.
• 100,000+ Hour Rated Lifetime — Designed for sustained performance across the extended service life of institutional AV installations.
• MegapixelVR Enabled — Supports advanced video wall content management and multi-source display workflows.

Typical Applications

• Boardroom
• Command center
• Government space
• Conference room
• Control room
• All-hands room
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Is 1.2mm the right pixel pitch for a large boardroom or command center?

Yes. The 1.2mm pitch is designed for environments where primary viewing distances fall between 8 and 14 feet. In large boardrooms, conference rooms, and command centers, this pitch delivers a sharp, pixel-free image at the distances most occupants are seated from the display — without the cost premium of specifying the 0.9mm pitch for a space where the additional pixel density would not be perceptible.

Is this product TAA compliant?

Yes. The Engage Series HDS 1.2mm is designed and assembled in the United States and meets Trade Agreements Act (TAA) compliance requirements. It is eligible for federal agency, DoD, and GSA schedule procurement without requiring a waiver.

How does the 1.2mm compare to the 0.9mm Engage option?

The 0.9mm is specified for close-viewing environments — typically under 8 feet — where maximum pixel density is required, such as operator workstations in a control room. The 1.2mm at 216" is the practical specification for large boardrooms and command centers where the primary seating distance is 8 feet or more, providing comparable visual quality at those distances with a lower cost of ownership.

What does the complete solution package include?

The complete solution includes engineered submittal drawings, custom structural framing with integrated mount points (no third-party hardware required), a spares kit, and a 4K Digital Interface Unit. Installation labor, field engineering, integration, ancillary equipment, and freight are not included in the listed price.

What is the 6-year Nixel-to-Pixel warranty?

Nanolumens’ Nixel-to-Pixel warranty covers the display at the individual pixel level for six years. This is a meaningful distinction from module-level warranties — pixel-level coverage provides more granular protection for high-value institutional installations where display uniformity is expected to be maintained over the full warranty term.

Is the display front-serviceable?

Yes. The Engage HDS 1.2mm is front-serviceable, meaning all module maintenance and replacement is performed from the front face of the display. For flush-mount boardroom and conference room installations — where rear access is typically not available — this eliminates the need to design a service corridor or swing-out structure into the installation.

What content management options are available?

The display is MegapixelVR enabled for advanced video wall content management and multi-source layout control. AWARE® remote monitoring is available upon request, supporting proactive diagnostics and operational health tracking without requiring on-site intervention for routine status checks.

Are custom sizes available?

Yes. The 216" 4K configuration is the standard offering at 1.2mm pixel pitch. Nanolumens and Creation Networks support custom display dimensions and aspect ratios for project-specific requirements. Contact our AV solutions team to discuss custom sizing options.
