Eaton U442-DOCKSD-1 – USB-C Dock for Steam Deck

Product Overview

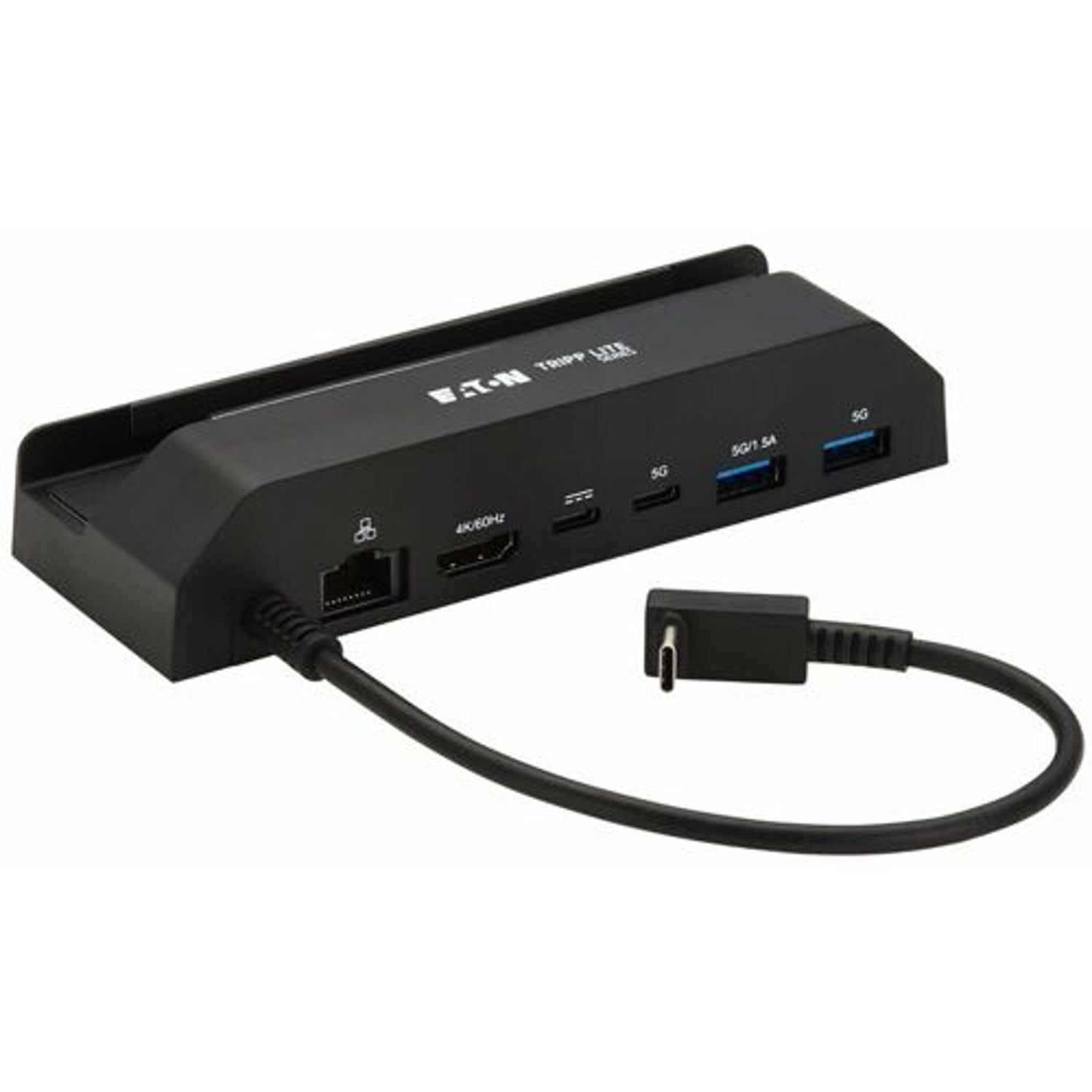

The Eaton U442-DOCKSD-1 is a USB-C docking station purpose-built for the Steam Deck and ASUS ROG Ally, turning a handheld gaming console into a desktop-connected setup with 4K 60 Hz HDMI output, USB hub ports, Gigabit Ethernet, and 100W USB-C PD charging. This dock's built-in cradle and integrated USB-C cable make it a plug-and-play docking station option for gamers and IT teams supporting handheld device deployments that need large-display output and wired networking.

Product Description

Handheld gaming consoles like the Steam Deck and ROG Ally are increasingly used beyond casual gaming, and the U442-DOCKSD-1 extends their usefulness with a docking station that adds desktop-class connectivity. Insert the console into the dock's cradle, connect the built-in USB-C cable to the handheld's USB-C port, and the console gains access to a large-screen display, keyboard and mouse input, external storage, wired networking, and fast charging. The HDMI port supports Ultra HD 4K resolutions up to 3840 x 2160 at 60 Hz with 36-bit Deep Color, and includes support for HDR for a wider range of vibrant colors with richer contrast. The dock also supports uncompressed 4:4:4 chroma subsampling for top-level image quality on a connected monitor. A Power Delivery (PD) port outputs up to 20V 5A (100W), which is sufficient for rapidly charging a Steam Deck or ROG Ally when it's not in active use; a user-provided USB-C PD charging cable and compatible charger are required. One USB-C and one USB-A hub port support USB 3.2 Gen 1 transfer rates up to 5 Gbps, enabling connection of external storage drives, mice, and keyboards, and both are backward compatible with USB 2.0 and USB 1.1 devices. The RJ45 port provides access to a wired Gigabit Ethernet network using a user-supplied UTP cable, delivering true 10/100/1000 Mbps speeds when Wi-Fi is unavailable or a wired connection is preferred for lower latency. The U442-DOCKSD-1 is plug-and-play and requires no additional software installation, making it ready to use directly out of the package.

Key Features

• 4K 60 Hz HDMI Output — Supports Ultra HD 4K resolution up to 3840 x 2160 at 60 Hz with 36-bit Deep Color and HDR.
• 100W USB-C PD Charging — Delivers up to 20V 5A for rapid charging of a connected Steam Deck or ROG Ally.
• USB Hub Ports — One USB-C and one USB-A port support USB 3.2 Gen 1 speeds up to 5 Gbps for peripherals and storage.
• Gigabit Ethernet Port — Provides wired 10/100/1000 Mbps networking via the RJ45 port.
• Built-In Cradle and Cable — Holds the console securely and connects via an integrated USB-C cable for plug-and-play use.
• No Software Required — Ready to use immediately out of the package with no driver installation.
