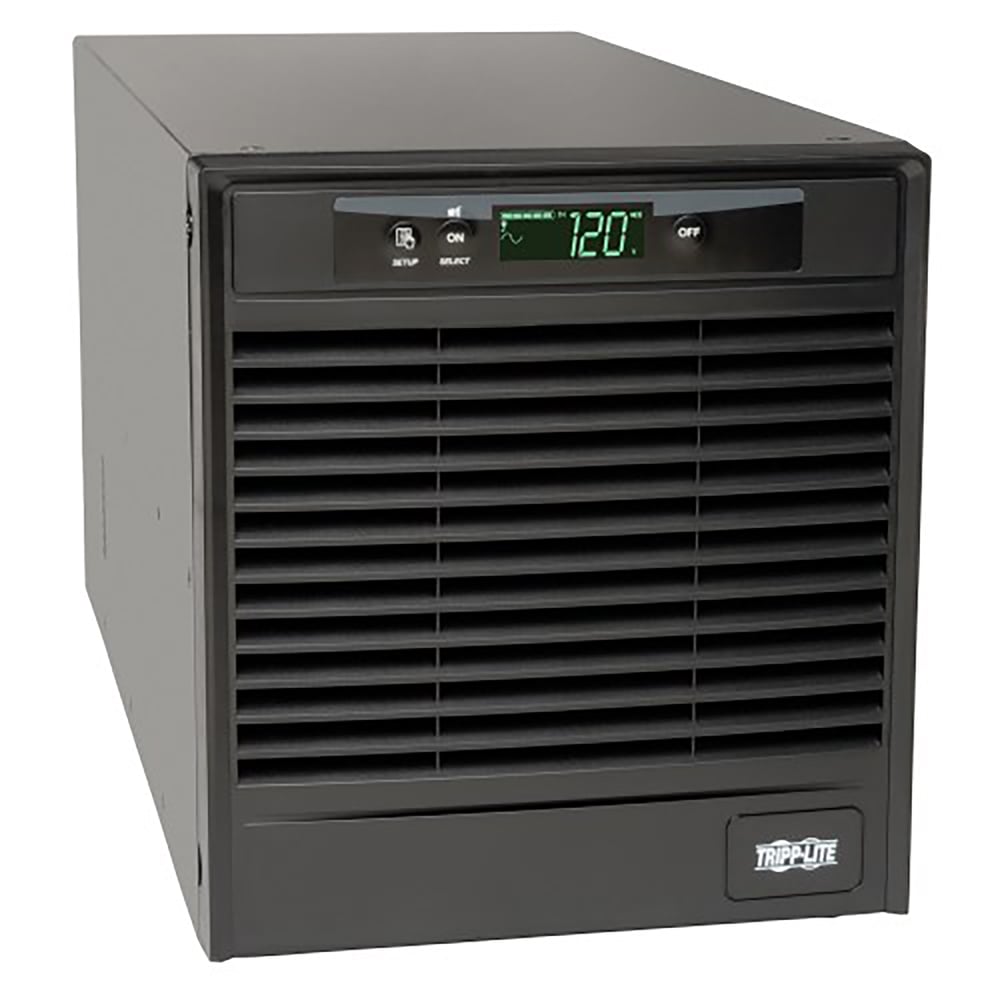

Eaton SU1500XLCD – 1.5kVA SmartOnline Double-Conversion UPS

Product Overview

The Eaton SU1500XLCD is a double-conversion online UPS for AV rack, server, and telecommunications equipment that cannot tolerate any interruption in power quality. Rated 1500VA/1350W, it delivers true on-line operation with pure sine wave output and zero transfer time to battery, making it a genuine zero transfer time UPS for conference room AV systems and other mission-critical installations. This pure sine wave UPS for networking equipment is a strong fit for commercial UPS battery backup installation projects protecting equipment that is sensitive to even momentary power gaps.

Product Description

Unlike line-interactive UPS designs that switch to battery when they detect a power problem, the SU1500XLCD's double-conversion online topology continuously regenerates output power from its own inverter, meaning connected equipment never experiences a transfer event during a power anomaly. This SmartOnline tower UPS for mission-critical AV deployments is well suited to protecting DSPs, control processors, and networking gear where even a few milliseconds of transfer time could cause a glitch, dropout, or reboot. Six 5-15R outlets with surge protection and EMI/RFI filtering serve connected equipment, and the unit's LCD display provides a menu-driven interface for reviewing load, battery status, and configuration settings locally. The internal VRLA battery is field-replaceable and hot-swappable, and the design supports up to four external battery modules for facilities that need an extended runtime UPS for server closet or AV rack applications beyond the standard internal capacity. An optional WEBCARDLXE network management card adds remote monitoring, while built-in USB, DB9, and RS-232 ports support unattended shutdown scripting.

Key Features

• True Double-Conversion Online Topology — Regenerates output continuously with zero transfer time to battery during power anomalies.
• Pure Sine Wave Output — Ensures clean, stable power for sensitive AV, networking, and telecom equipment.
• Six 5-15R Outlets — Provides surge-protected, EMI/RFI-filtered power for connected devices.
• LCD Menu Interface — Displays load, battery status, and configuration options directly on the unit.
• Expandable Battery Capability — Supports up to four external battery modules for extended runtime.
• Hot-Swappable Battery — Field-replaceable VRLA battery allows service without powering down connected equipment.
• Optional Network Management Card — WEBCARDLXE support adds remote monitoring for centralized facilities management.

Typical Applications

• Boardroom AV racks protecting DSPs and control processors from any power interruption
• Conference room equipment closets requiring zero transfer time power quality
• Broadcast studio racks where dropouts during a power event are unacceptable
• Government space equipment rooms with mission-critical AV and networking loads

Technical Specifications

Frequently Asked Questions

What makes a double-conversion online UPS different from a line-interactive model?

A double-conversion online UPS continuously regenerates output power from its inverter, meaning connected equipment experiences zero transfer time during a power anomaly, unlike line-interactive units that switch to battery only when a problem is detected.

How much runtime does the SU1500XLCD provide?

At full load it provides approximately 5.9 minutes of runtime, and at half load approximately 16.5 minutes, with the option to extend further using external battery modules.

Can the internal battery be replaced without a service call?

Yes, the VRLA battery is field-replaceable and hot-swappable, allowing on-site staff to perform battery replacement.

Is remote monitoring available for this UPS?

Yes, an optional WEBCARDLXE network management card can be added for remote monitoring, in addition to the built-in USB, DB9, and RS-232 ports.

Is this UPS suitable for a boardroom or conference room AV rack?

Yes. Its zero transfer time online topology makes it well suited for boardroom and conference room AV racks where any interruption in power quality could disrupt a presentation or videoconference.

What is the warranty on the SU1500XLCD?

The unit carries a 2-year limited manufacturer warranty. Contact Creation Networks for warranty support and documentation.

How many external battery modules can be added?

The SU1500XLCD supports up to four external battery modules for facilities that need extended runtime beyond the internal battery capacity.
