Eaton SU1000XLCD – 1kVA Online Tower UPS Extended Run
Eaton SU1000XLCD – 1kVA Online Tower UPS Extended Run is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Eaton SU1000XLCD – 1kVA Online Tower UPS Extended Run
Product Overview
The Eaton SU1000XLCD is a 1000VA/900W double-conversion tower UPS designed as a double-conversion tower UPS for AV equipment protecting small servers, network switches, and telecom systems from data loss and downtime. Its extended-run design accepts external battery packs, making it a capable 1kVA online UPS extended runtime option for commercial UPS battery backup installation projects where longer ride-through time is needed beyond a standard internal battery. The tower form factor and LCD display make it suitable for placement in a small data closet or under a desk in a network wiring room.
Product Description
The SU1000XLCD is built for small- to medium-size servers, networking equipment, and telecom systems that need protection against data loss, downtime, and equipment damage from blackouts, brownouts, and surges. Its double-conversion topology continuously regenerates output power, positioning it as a genuine double-conversion tower UPS for AV equipment and networking gear where zero transfer time is required, unlike simpler standby or line-interactive designs. Six NEMA 5-15R outlets provide sufficient capacity for a small network switch, AV control processor, and associated peripherals. The unit's extended-run architecture supports up to four external BP36V battery packs, allowing facilities to scale runtime well beyond the internal sealed lead-acid battery's baseline capacity, making it a genuine 1kVA online UPS extended runtime solution for commercial UPS battery backup installation projects with longer outage tolerance requirements. An LCD display shows load and battery status, and USB and RS-232 ports support integration with shutdown software on connected servers or workstations. An optional network card slot enables SNMP-based remote monitoring for facilities managing multiple UPS units across a building.
Key Features
- 1000VA/900W Double-Conversion Topology — Provides zero transfer time output regeneration for sensitive network and AV equipment.

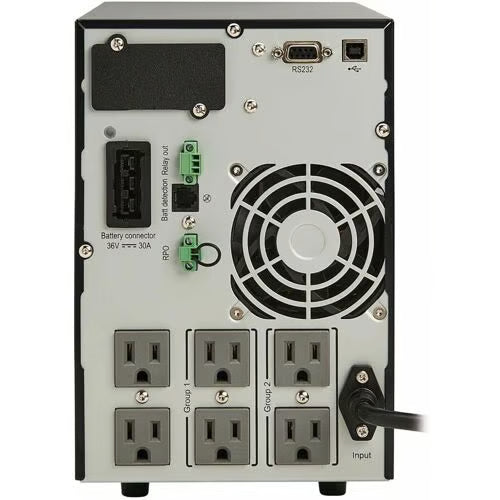

- 6x NEMA 5-15R Outlets — Powers a small switch, AV processor, and peripheral devices from one tower unit.
- Extended-Run Battery Architecture — Supports up to 4 external BP36V battery packs for scalable runtime.

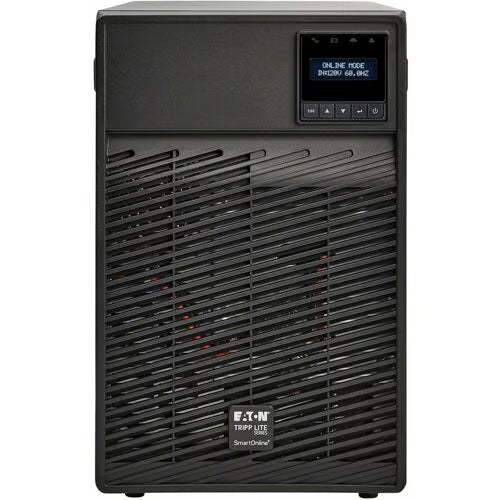

- LCD Status Display — Shows load percentage and battery condition for quick facilities checks.
- USB and RS-232 Ports — Enable automated shutdown integration with connected equipment.
- Optional Network Card Slot — Supports SNMP-based remote monitoring across multiple units.
- Sealed Lead-Acid Battery — Is field-replaceable on site, minimizing downtime during service.
Typical Applications
- Huddle room network closets
- Training room AV equipment racks
- Commercial meeting space network infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Capacity | 1000VA / 900W |
| Topology | Double-conversion (online) |
| Input/Output Voltage | 120 VAC |
| Outlets | 6x NEMA 5-15R |
| Form Factor | Tower, extended run |
| Battery Type | Sealed Lead-Acid |
| External Battery Support | Up to 4 BP36V packs |
| Communication | USB, RS-232, optional network card slot |
| Warranty | 2-year limited |
Frequently Asked Questions
What type of equipment is this UPS best suited to protect?
It is designed for small- to medium-size servers, network switches, AV control processors, and telecom equipment in a data closet or network wiring room.
Can I extend the runtime beyond the internal battery?
Yes, the extended-run architecture supports up to 4 external BP36V battery packs for longer ride-through during outages.
Does this UPS provide zero transfer time protection?
Yes, it uses double-conversion (online) topology, which continuously regenerates output power rather than switching to battery.
How is this unit monitored?
It includes an LCD display for local status and USB/RS-232 ports for connection to shutdown software, with an optional network card for SNMP monitoring.
What is the warranty on this unit?
The SU1000XLCD carries a 2-year limited warranty.
Can the battery be replaced on site?
Yes, the sealed lead-acid battery is field-replaceable, minimizing downtime during service.
