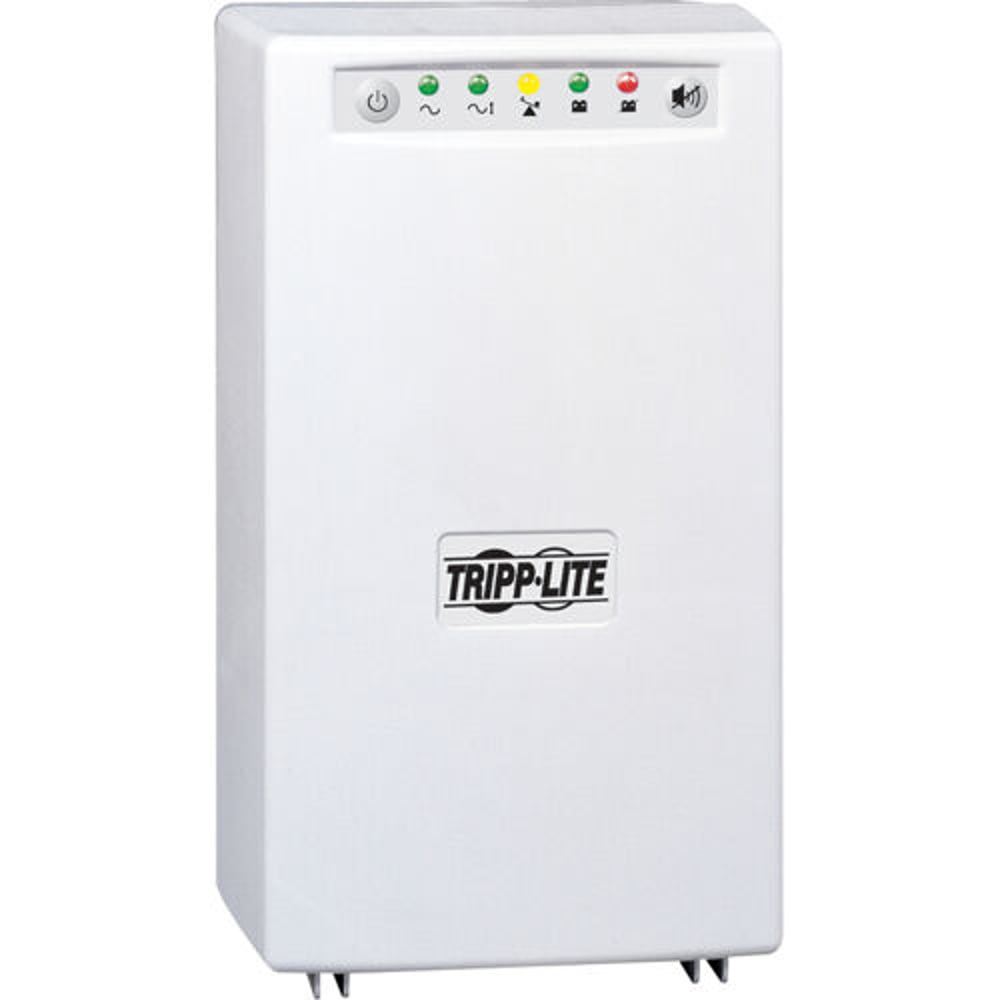

Eaton SMX1200XLHG – Medical-Grade Isolated Tower UPS 230V

Product Overview

The Eaton SMX1200XLHG is a medical-grade UPS for patient-care equipment, fully compliant with UL 60601-1 regulations when connected to a hospital-grade outlet. This hospital-grade line-interactive UPS delivers 1000VA/750W of isolated, regulated power with a built-in isolation transformer that removes common mode noise from sensitive medical and diagnostic devices. As an isolation transformer UPS for medical devices, it is specified for patient-care vicinities and other 230V environments where full electrical isolation and surge suppression are required alongside battery backup.

Product Description

The SMX1200XLHG combines line-interactive automatic voltage regulation with a Faraday-shielded isolation transformer, giving connected equipment full galvanic isolation from the incoming AC line while maintaining complete surge suppression in all modes. This UL 60601-1 compliant UPS system corrects brownouts as low as 155V and overvoltages as high as 274V to a stable 230V nominal output without drawing on battery power, which preserves runtime for genuine outages. At 1kVA/750W capacity, the unit provides up to 27.5 minutes of runtime at half load or 11 minutes at full load, enough time to complete a procedure or perform an orderly shutdown during a prolonged power event. Six IEC 60320 C13 outlets are split between four UPS-backed connections and two surge-only connections, allowing a single unit to serve both a critical device and adjacent accessories. Expandable runtime is available through compatible external battery options for facilities that need extended coverage beyond the internal battery.

Key Features

• UL 60601-1 Compliance — Meets recognized medical equipment safety standards when connected to a hospital-grade outlet, suitable for patient-care vicinities.
• Full Isolation Transformer — Faraday-shielded isolation removes common mode noise while maintaining complete AC surge suppression in all modes.
• Line-Interactive Voltage Regulation — Corrects brownouts as low as 155V and overvoltages as high as 274V without switching to battery.
• Six IEC C13 Outlets — Four outlets are battery-backed and two are surge-only, supporting mixed critical and secondary medical or diagnostic equipment.
• Expandable Runtime — The unit is compatible with external battery options for facilities that require extended backup coverage.
• 340-Joule Surge Protection — Guards connected equipment against transient voltage events on the incoming feed.

Typical Applications

• Patient-care vicinity equipment requiring UL 60601-1 compliant power protection
• Diagnostic and monitoring device power protection in clinical settings
• Hospital biomedical engineering rooms needing isolated, regulated power
• Laboratory and clinical equipment racks requiring surge and noise isolation

Technical Specifications

Frequently Asked Questions

Is the SMX1200XLHG approved for use in patient-care areas?

Yes, it is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it suitable for use in patient-care vicinities.

What does the isolation transformer do for connected equipment?

The built-in Faraday-shielded isolation transformer removes common mode noise from the AC line and provides full galvanic isolation, while still maintaining complete surge suppression.

How much runtime does this UPS provide?

At half load it provides approximately 27.5 minutes of runtime, and at full load approximately 11 minutes, giving staff time to complete tasks or shut down equipment during an outage.

Can the runtime be extended beyond the internal battery?

Yes, the unit supports expandable runtime through compatible external battery options for facilities that need longer backup coverage.

What outlet type does this UPS use?

It provides six IEC 60320 C13 outlets, four of which are battery-backed and two of which are surge-protected only.

What warranty is included with this unit?

The SMX1200XLHG carries a 2-year limited manufacturer warranty. Contact Creation Networks for warranty support and documentation.

Is professional installation required for medical facility use?

Facility electrical and biomedical engineering teams should confirm outlet compatibility and code requirements for the specific patient-care area before installation. Contact Creation Networks for guidance on integrating this UPS into your facility's power infrastructure.
