Eaton SMART1000LCD – 1000VA Line-Interactive Tower UPS

Product Overview

The Eaton SMART1000LCD is a 1000VA line-interactive UPS for AV rack and network workstation deployments that need automatic voltage regulation alongside battery backup. Configurable as a rack-mount UPS for AV rack installations, on a shelf, or as a tower, it uses AVR circuits to correct brownouts without draining the battery. This makes it a solid commercial UPS battery backup installation choice for small conference room equipment, network workstations, and personal computers exposed to unstable utility power.

Product Description

The SMART1000LCD is a line-interactive UPS system delivering 1000VA/500W of capacity across 8 total NEMA 5-15R outlets — 4 battery-backed and 4 surge-suppression-only — with 1038 joules of surge protection. Its AVR circuitry regulates brownout conditions down to 89 volts back to usable levels without switching to battery, which extends battery life in environments with frequent utility sag. The digital LCD panel on the front reports load level, battery status, and input/output voltage at a glance, useful for facilities staff doing a quick visual check during a rack walkthrough. A USB port with HID-compliant interface supports unattended shutdown software on Windows, Mac OS X, and Linux, protecting network workstations and small servers from data loss during extended outages. Built-in RJ-11 phone-line surge suppression jacks add protection for modems and DSL-connected equipment often found alongside AV control systems. The 0U tower/shelf form factor fits into a small AV rack, on a shelf above rack-mounted gear, or under a desk, giving integrators flexibility when space constraints rule out a dedicated rack-mount UPS.

Key Features

• 1000VA/500W Capacity — Is sized for personal computers, network workstations, and small AV control equipment.
• Automatic Voltage Regulation (AVR) — Corrects brownouts as low as 89 volts without switching to battery power.

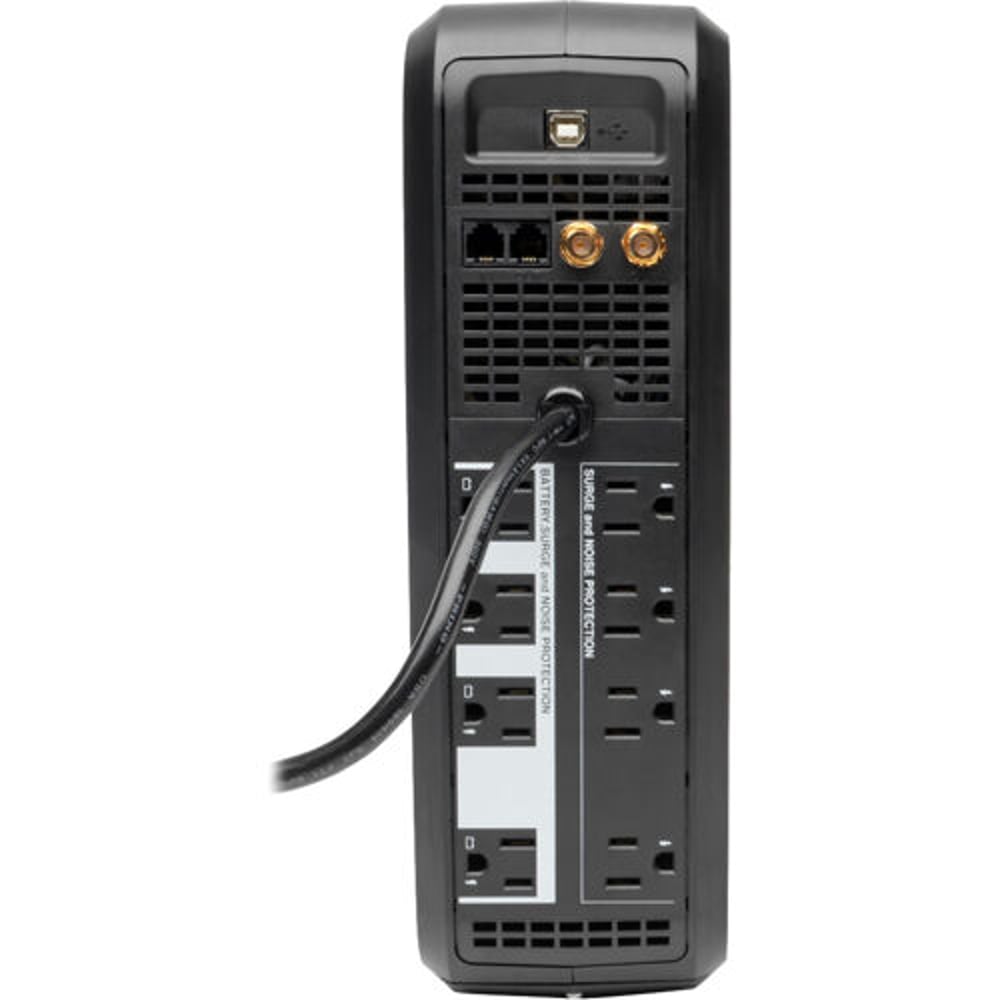

• 8 Total Outlets — Four outlets are battery-backed and four are surge-only, enabling flexible load prioritization.
• 1038 Joules of Surge Protection — Guards connected equipment against transient voltage spikes.

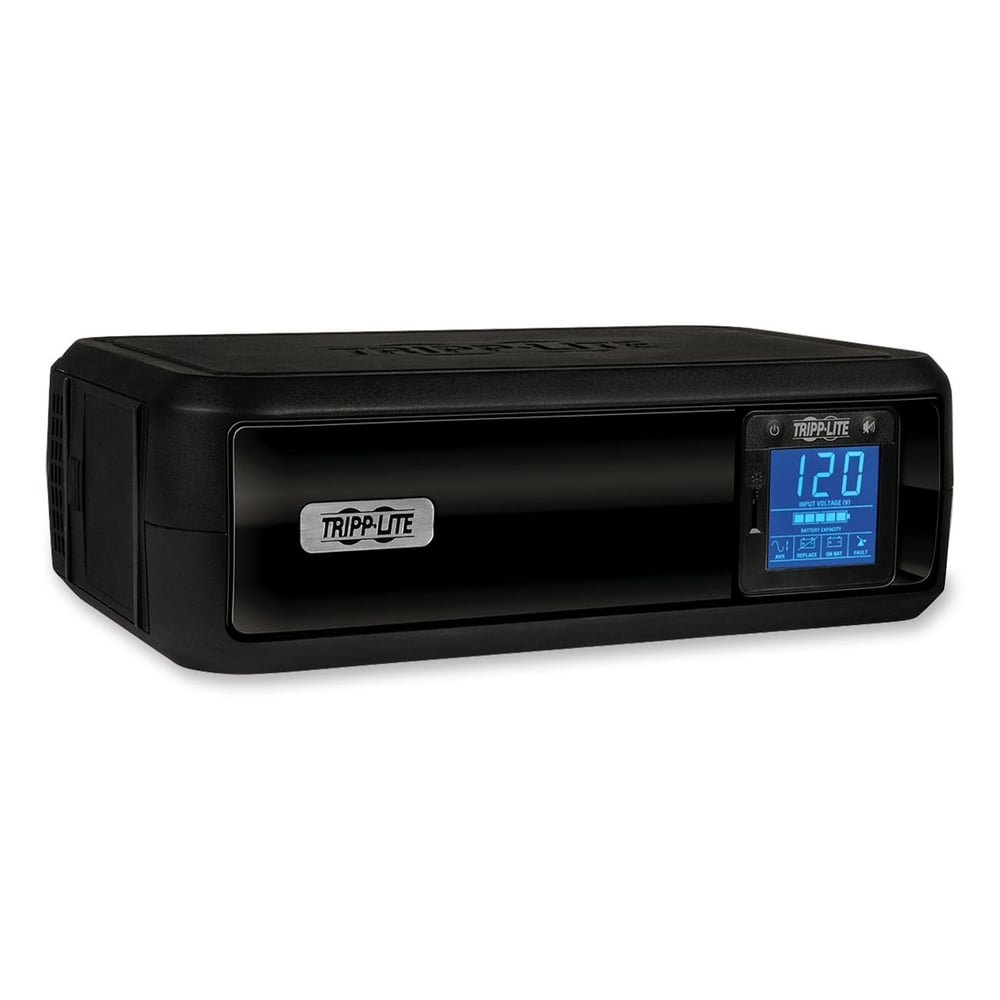

• Digital LCD Display — Shows load, battery, and voltage status for quick on-site diagnostics.
• RJ-11 Phone/DSL Line Protection — Built-in suppression jacks protect modems and DSL-connected equipment.
• USB Port with Shutdown Software Support — HID-compliant interface enables unattended graceful shutdown across major operating systems.
