Eaton SM3000RM2UNTAA – 3000VA 2U Rackmount UPS with SNMP

Product Overview

The Eaton SM3000RM2UNTAA is a 3000VA/2250W, 2U rackmount UPS for network and server equipment built for critical infrastructure in data closets, server rooms, and commercial AV racks. With an interactive LCD interface, USB, DB9, and a preinstalled SNMP network card, it functions as an SNMP network card UPS for data closet deployments requiring remote monitoring. TAA compliance also makes it a fit as a TAA compliant rackmount UPS for government installations.

Product Description

The SM3000RM2UNTAA is a line-interactive UPS with built-in Automatic Voltage Regulation that actively corrects brownouts and overvoltages back to usable levels while keeping the battery at full charge, so it only draws down the battery during an actual power failure rather than for every minor fluctuation. The interactive LCD interface reports operating mode along with detailed UPS and site-power data directly on the front panel, useful for a technician doing a walk-through of a server room or AV equipment rack. Switchover from line to battery power happens within milliseconds, and 98% line-mode efficiency keeps heat output and operating costs down for continuously running 2U rack UPS deployments. Network management is available over USB, DB9 serial, and a preinstalled WEBCARDLX card, giving IT and facilities teams remote access to UPS and site-power status, configuration, and control through a Java-free HTML5 interface, SNMP, telnet, or SSH. Outlets include 8x NEMA 5-15/20R plus a NEMA L5-30R, supporting a mixed load of standard equipment and higher-current devices in a single 2U rackmount UPS for network and server equipment. TAA compliance makes this unit eligible for federal and GSA Schedule procurement, an important factor for government and education AV integration projects.

Key Features

• 3000VA/2250W Capacity — Supports a substantial mixed load of servers, network switches, and AV control equipment in a single rack.

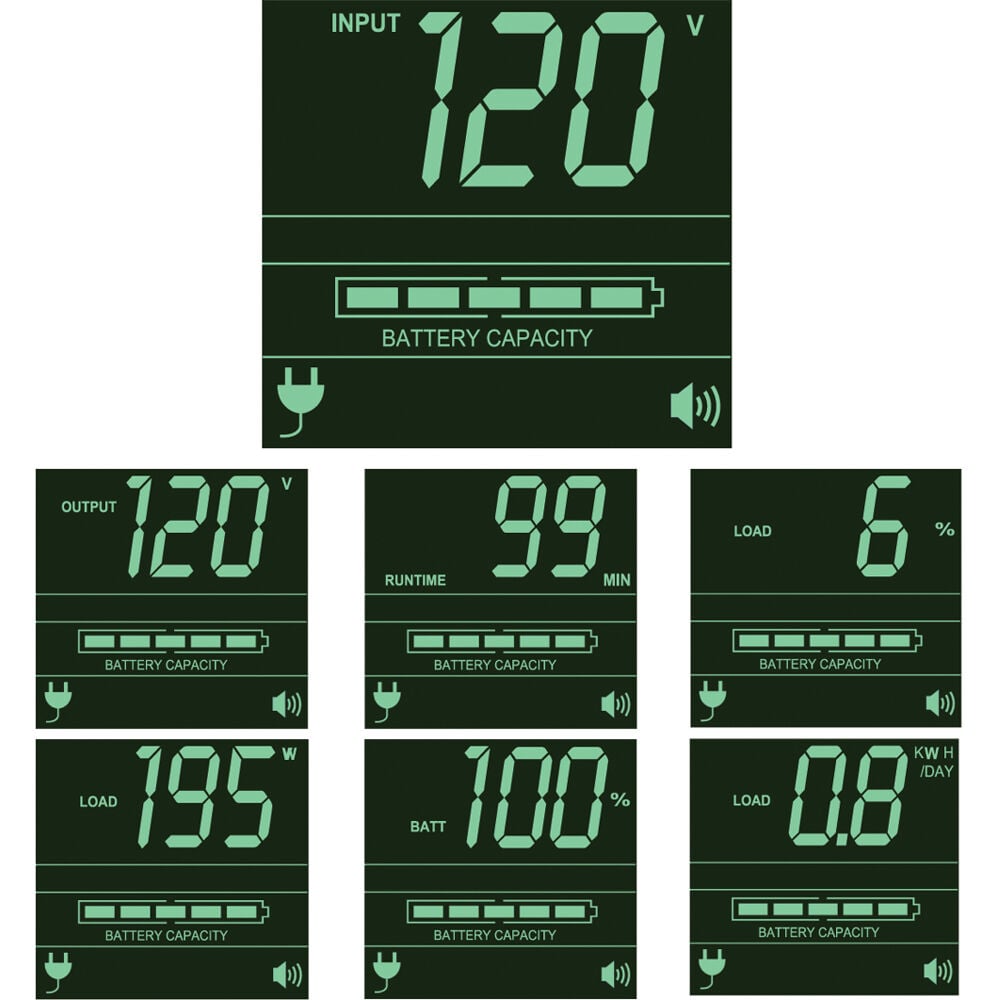

• Interactive LCD Display — Reports UPS operating mode and site-power data directly on the front panel for on-site diagnostics.
• Preinstalled SNMP Network Card — Enables remote monitoring and control via HTML5, SNMP, telnet, or SSH without additional hardware purchase.
• Automatic Voltage Regulation (AVR) — Corrects brownouts and overvoltages in-line while keeping the battery at full charge.
• 98% Line-Mode Efficiency — Reduces heat output and operating costs for continuously running installations.

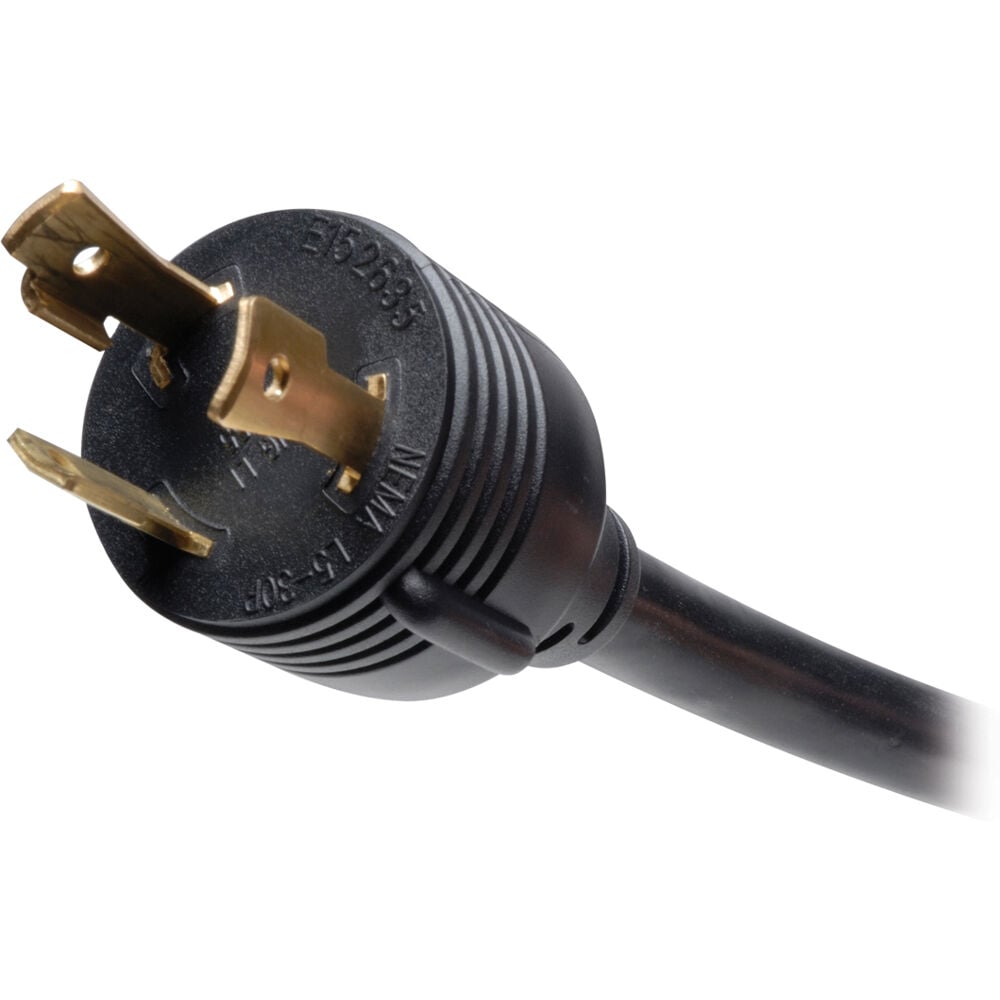

• Mixed Outlet Configuration — 8x NEMA 5-15/20R plus 1x NEMA L5-30R supports both standard and higher-current equipment.
• TAA Compliance — Qualifies for federal and GSA Schedule procurement requirements.
• 2U Rack Form Factor — Provides a compact footprint for server rooms and AV equipment racks with limited rack space.

Typical Applications

• Commercial server rooms and data closets supporting AV control and network infrastructure
• Government and education AV racks requiring TAA-compliant power protection
• Broadcast studio and control room equipment racks needing high-capacity backup power
• Auditorium and large meeting space AV racks with substantial combined equipment loads

Technical Specifications

Frequently Asked Questions

Can the SM3000RM2UNTAA be monitored remotely from a network operations center?

Yes. It ships with a preinstalled WEBCARDLX network card supporting remote monitoring and control through a Java-free HTML5 interface, SNMP, telnet, or SSH.

Is this UPS suitable for government or GSA Schedule purchases?

Yes. The SM3000RM2UNTAA is TAA compliant, making it eligible for federal and GSA Schedule procurement.

What outlet types does this UPS provide for rack equipment?

It provides 8 NEMA 5-15/20R outlets plus 1 NEMA L5-30R outlet, supporting a mix of standard equipment and higher-current devices in the same rack.

How much rack space does the SM3000RM2UNTAA require?

It occupies 2U of rack space, with dimensions of 3.5 in x 17.5 in x 19.5 in and a weight of 62.8 lbs.

How quickly does the UPS switch to battery power during an outage?

Switchover from line to battery power occurs within milliseconds, which is fast enough to prevent disruption to connected servers, network equipment, or AV control systems.

What is the warranty on the SM3000RM2UNTAA?

It carries a 2-year limited warranty.

Can Creation Networks help integrate this UPS into an existing AV or server rack?

Yes. Contact Creation Networks for guidance on rack space planning, outlet load balancing, and SNMP network integration for your specific deployment.
