Eaton PDUV30 – 2.9kW Basic 0U Rack PDU, 24 Outlets

Product Overview

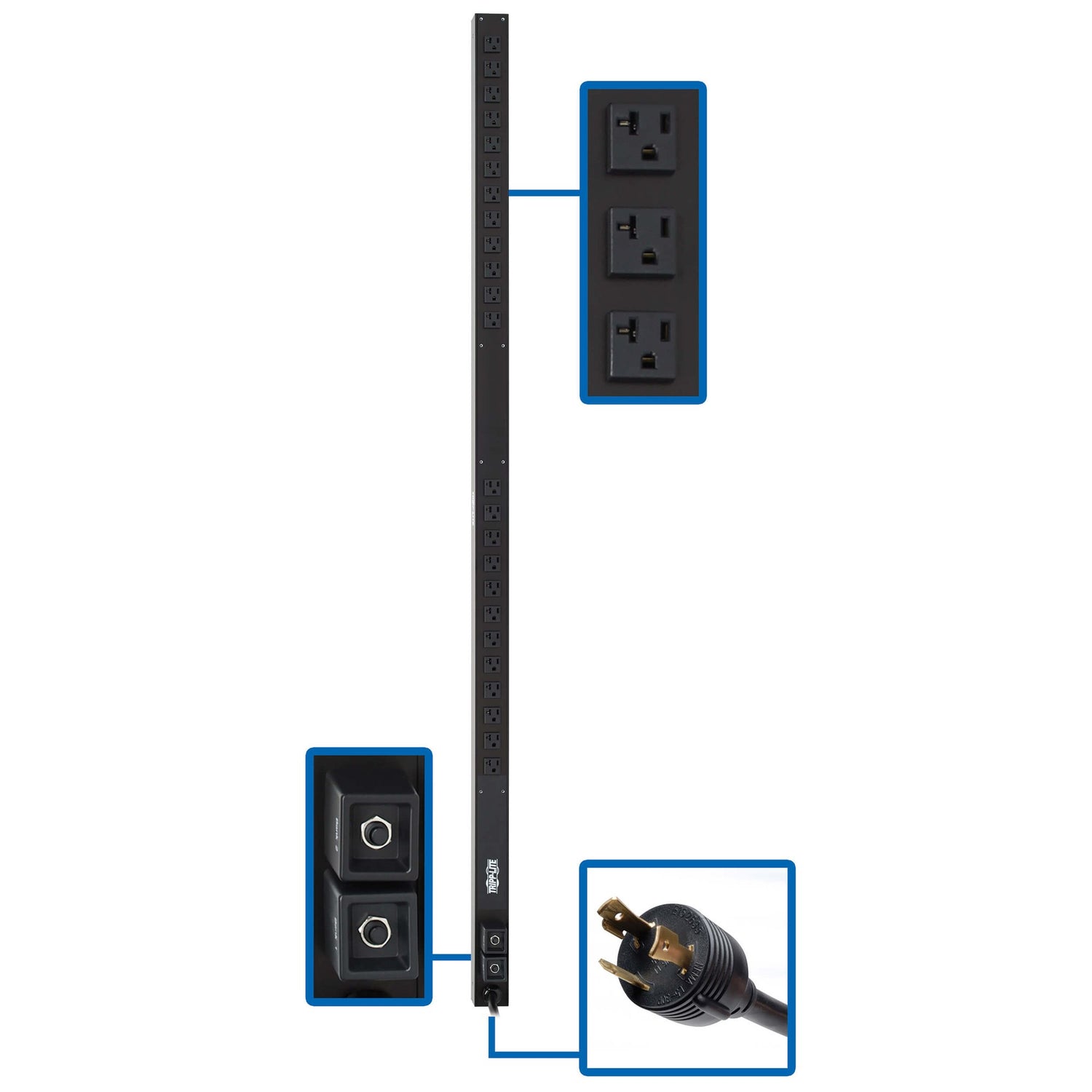

The Eaton PDUV30 is a basic 0U vertical rack PDU delivering 2.9kW at 120V through 24 NEMA 5-15/20R outlets, split across two breakered load banks. Designed for networking, telecom, security, audio/video, and sound reinforcement applications, it is a practical no-frills choice for small to mid-size data centers, computer rooms, and network closets. The NEMA L5-30P input plug and 63.75-inch 0U vertical form factor let it mount in the cable management area of an EIA-standard 19-inch rack without consuming rack units. Integrators who need dependable basic power distribution without networked monitoring will appreciate the straightforward design.

Product Description

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video, and sound reinforcement applications. Recommended for small to mid-size data centers, computer rooms, and network closets, the PDUV30 features two breakered load banks, each with 12 NEMA 5-15/20R outlets for connecting equipment, for a total of 24 outlets. A 10-foot cord with a NEMA L5-30P input plug connects to your facility's AC power source, generator, or protected UPS system to distribute power to connected loads. The 63.75-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting brackets with user-supplied hardware, and it can also be secured to the underside of a counter with two user-supplied screws for non-rack installations. Bolt-down retention brackets keep power cords organized and help keep the rack free of clutter, an important detail in AV racks and equipment closets where cable management affects both appearance and airflow.

Key Features

• 24 NEMA 5-15/20R Outlets — Two breakered load banks of 12 outlets each accommodate a wide range of networking and AV equipment.
• 2.9kW at 120V — Delivers ample capacity for small to mid-size data center, computer room, or AV rack loads.
• NEMA L5-30P Input — A 10-foot cord connects to facility power, a generator, or a protected UPS system.
• 63.75 in. 0U Vertical Form Factor — Mounts in the cable management channel of a 19-inch rack without using rack units.
• Bolt-Down Cord Retention Brackets — Keep power cords organized and secure, reducing clutter in busy equipment racks.
• Flexible Mounting Options — Toolless buttons, mounting brackets, or under-counter installation accommodate multiple deployment styles.

Typical Applications

• Small to mid-size data center
• Computer room
• Network closet
• Broadcast studio
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

What types of equipment does the PDUV30 support?

Its 24 NEMA 5-15/20R outlets accommodate networking, telecom, security, and audio/video equipment commonly found in data centers, computer rooms, and AV racks.

How is this PDU mounted?

It mounts vertically in 0U of space in a 19-inch rack using toolless buttons or included brackets, and can also be secured under a counter with user-supplied screws.

Does this PDU include outlet-level switching or network monitoring?

No, this is a basic PDU without networked monitoring or individual outlet switching; it is designed for straightforward, reliable power distribution.

What input plug does this PDU require?

It uses a 10-foot cord with a NEMA L5-30P plug, which should be matched to a compatible L5-30 receptacle, generator, or protected UPS output.

Is this PDU appropriate for an AV rack in a conference room?

Yes, its no-frills design and outlet capacity make it suitable for AV, sound reinforcement, and commercial meeting space installations in addition to data center use.

What warranty comes with the PDUV30?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.
