Eaton PDUMV20NETLX – Switched 1.9kW Vertical PDU, LX Platform

Product Overview

The Eaton PDUMV20NETLX is a switched, network-managed rack PDU built for IT and industrial applications that need remote outlet-level control. Its 24 switched NEMA 5-15/20R outlets and Java-free HTML5-based LX Platform interface give data center and network closet operators full remote power monitoring and control from a standard web browser. This 0U vertical PDU is a strong fit for racks where remote reboot capability reduces the need for on-site visits.

Product Description

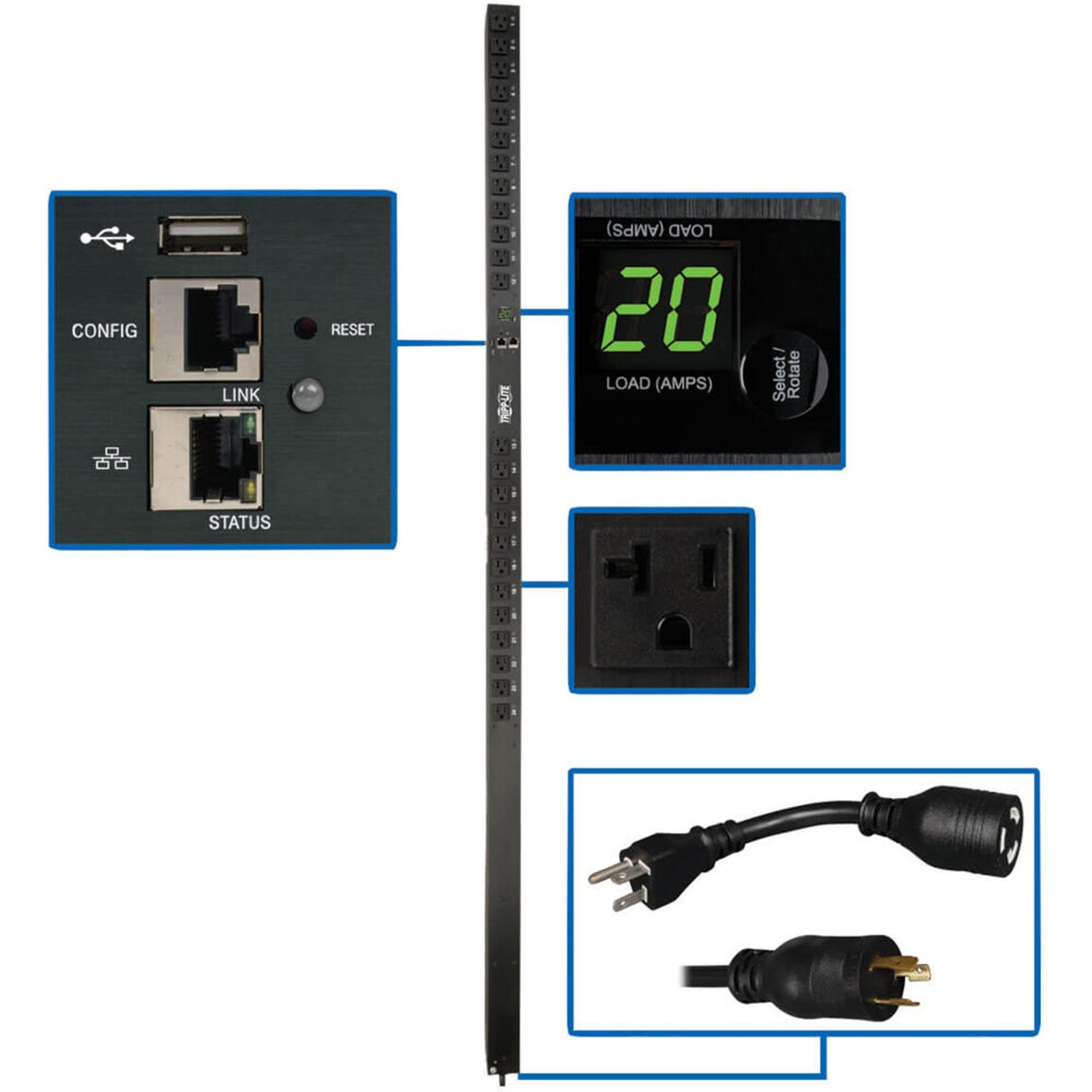

The PDUMV20NETLX 1.9kW single-phase switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot, or lock out power to each outlet individually. Recommended for IT and industrial applications, the vertical PDU features 24 switched NEMA 5-15/20R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected during rack work. A 10-foot cord with a NEMA L5-20P plug connects the PDU to a compatible AC power source, generator, or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet, or SSH, and supports 10/100 Mbps auto-sensing for reliable Ethernet communication. Optional EnviroSense2 modules, sold separately, add environmental monitoring capabilities such as temperature and humidity for racks where ambient conditions matter. A digital ammeter allows real-time monitoring of total load to keep consumption safely below maximum capacity. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using included toolless mounting buttons or rack-mounting brackets, and the included PDUMVROTATEBRKT kit lets installers mount the unit with outlets facing the rear for better airflow or equipment access.

Key Features

• 24 Switched Outlets — Turn on, turn off, reboot, or lock out power to individual outlets remotely.
• LX Platform Web Interface — Java-free HTML5-based interface accessible via secure browser, SNMP, telnet, or SSH.
• Digital Ammeter — Real-time total load monitoring helps keep consumption below maximum capacity.
• 0U Vertical Mounting — Toolless installation preserves rack U-space in a standard 19-inch rack.
• Cord Retention Brackets Included — Prevents accidental cable disconnection during routine maintenance.
• Optional EnviroSense2 Support — Adds environmental monitoring capability when paired with optional sensor modules.

Typical Applications

• IT server room and network closet racks
• Industrial control room equipment racks
• Data center racks requiring remote outlet control

Technical Specifications

Frequently Asked Questions

Can I reboot a single outlet remotely?

Yes, each of the 24 switched outlets can be turned on, turned off, rebooted, or locked out individually through the LX Platform interface.

What protocols does the LX Platform support?

It supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1/v2/v3, telnet, SSH, FTP, DHCP, and NTP over a 10/100 Mbps auto-sensing Ethernet connection.

Does this PDU support environmental monitoring?

Yes, optional EnviroSense2 modules, sold separately, add environmental monitoring such as temperature and humidity.

How is this PDU mounted in a rack?

It mounts in 0U of space using included toolless mounting buttons or rack-mounting brackets, with an optional rotate bracket kit for rear-facing outlet orientation.

Does remote switching reduce on-site maintenance visits?

Yes, the ability to remotely reboot or power-cycle outlets reduces the frequency of on-site visits needed for basic equipment resets.

What warranty does Eaton provide on this PDU?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.

Can Creation Networks help with network configuration for the LX Platform?

Yes, our team can help plan network access, SNMP setup, and integration with your existing monitoring tools.
