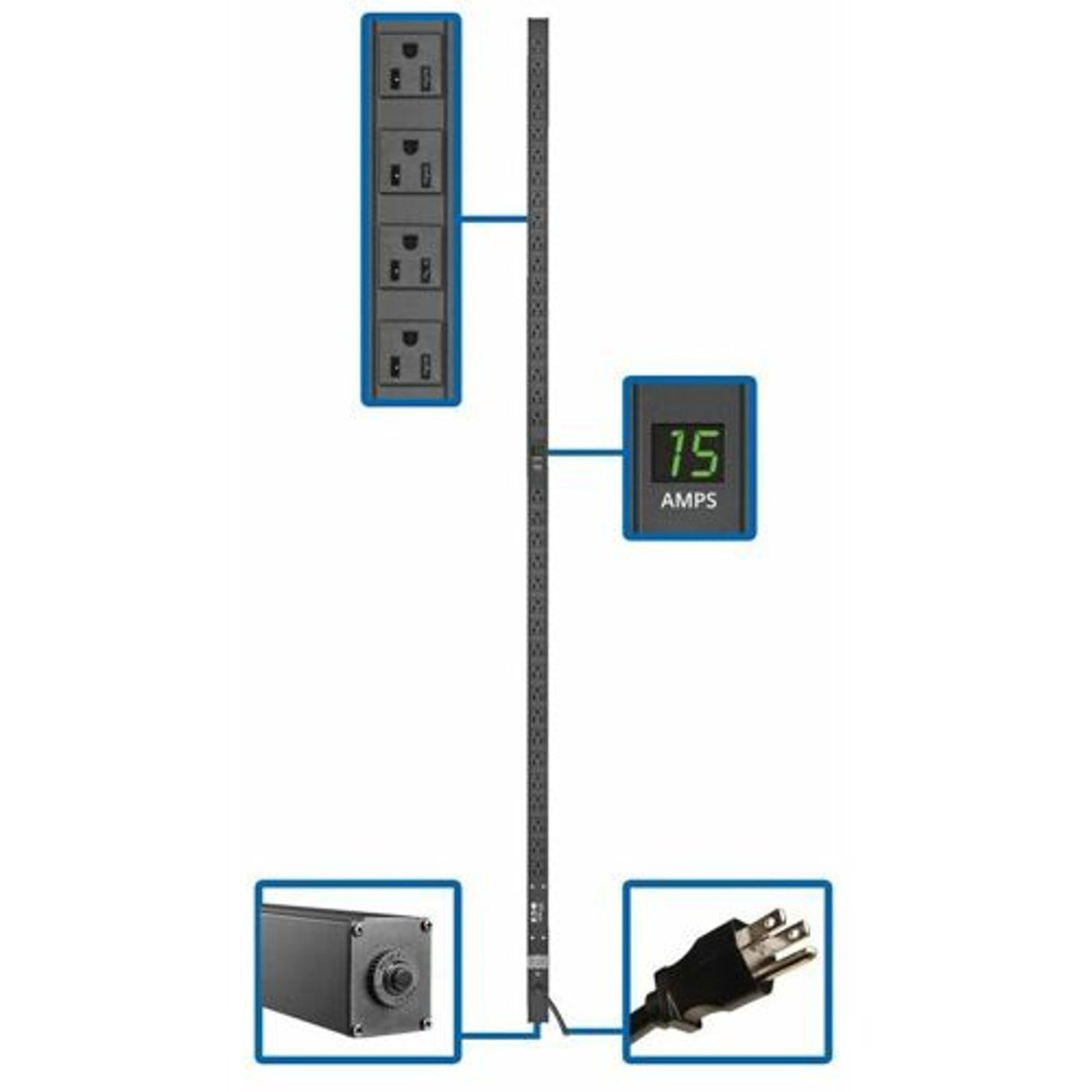

Eaton PDUMV15-72 – Metered 0U PDU, 36 Outlets, 72 in.

Product Overview

The Eaton PDUMV15-72 is a 1.5kW, 100-127V single-phase local metered PDU that distributes and monitors network-grade power in real time across 36 outlets. Sized for network IT applications, small computer rooms, and other equipment rack applications, this 72-inch vertical 0U PDU gives integrators a high outlet count with local load metering in a single rack-length unit. It's a practical option anywhere a rack needs extensive 120V outlet coverage without consuming horizontal U-space.

Product Description

The PDUMV15-72 features 36 NEMA 5-15R 120V outlets for connecting equipment, fed by an included 15-foot cord with a NEMA 5-15P input plug that connects to a distant AC power source, generator, or protected UPS system. A digital ammeter reports the total load for all connected equipment in real time, helping ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment; maintaining proper load levels, even as new equipment is added, helps keep total cost of ownership low. A lighted on/off switch is protected by an integrated transparent plastic cover to help prevent an accidental shutdown, and a 15A circuit breaker protects connected components from dangerous overloads. The 72-inch 0U all-metal housing mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons, or the included mounting clips and hardware, which can also secure the PDU to a wall, counter, or other flat, secure surface. Bolt-down retention brackets keep power cords organized and help keep the rack free of clutter. For racks needing dense 120V outlet coverage along the full rack height, the PDUMV15-72 delivers 36 outlets with local metering in a single vertical unit.

Key Features

• 36 NEMA 5-15R Outlets — A high outlet count supports a fully populated rack of 120V networking and computing equipment.
• Real-Time Digital Ammeter — Reports total connected load to help prevent overloads and support lower total cost of ownership.
• Protected On/Off Switch — A lighted switch under a transparent cover helps prevent accidental shutdowns.
• 15A Circuit Breaker — Protects connected components from dangerous current overloads.
• 72-Inch Vertical 0U Design — Mounts along the full height of a standard 19-inch rack without using horizontal U-space.
• Tooless or Bolted Mounting — Toolless mounting buttons or included clips support rack, wall, or counter installation.
• Cord Retention Brackets — Bolt-down brackets keep power cords organized and reduce rack clutter.

Typical Applications

• Data center
• Server room
• Network closet

Technical Specifications

Frequently Asked Questions

How is load monitored on this PDU?

A built-in digital ammeter reports the total load for all connected equipment in real time, letting staff confirm current draw stays below the unit's maximum capacity.

What protects this PDU from overload?

A 15A circuit breaker protects connected components from dangerous overloads, and the digital ammeter provides ongoing visibility into load levels.

Can this PDU be mounted somewhere other than inside a rack?

Yes. In addition to vertical mounting in an EIA-standard 19-inch rack, the included mounting clips and hardware support wall or counter mounting.

Why is the on/off switch covered?

A transparent plastic cover protects the lighted on/off switch to help prevent an accidental shutdown that could cause unplanned downtime.

What warranty applies to this unit?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.
