Eaton PDUMNH20 – 1U Metered Rack PDU, 120V

Product Overview

The Eaton PDUMNH20 is a 1U rack PDU built for 120V equipment racks in network closets, server rooms, and small data center deployments where a compact, monitored power strip is required. This basic metered rack PDU gives integrators and IT managers a local digital ammeter to track load in real time, reducing the risk of tripped circuits during a rack PDU installation. It fits standard 2-post and 4-post equipment racks and is a straightforward option for anyone specifying a monitored PDU for network closet or server room deployment.

Product Description

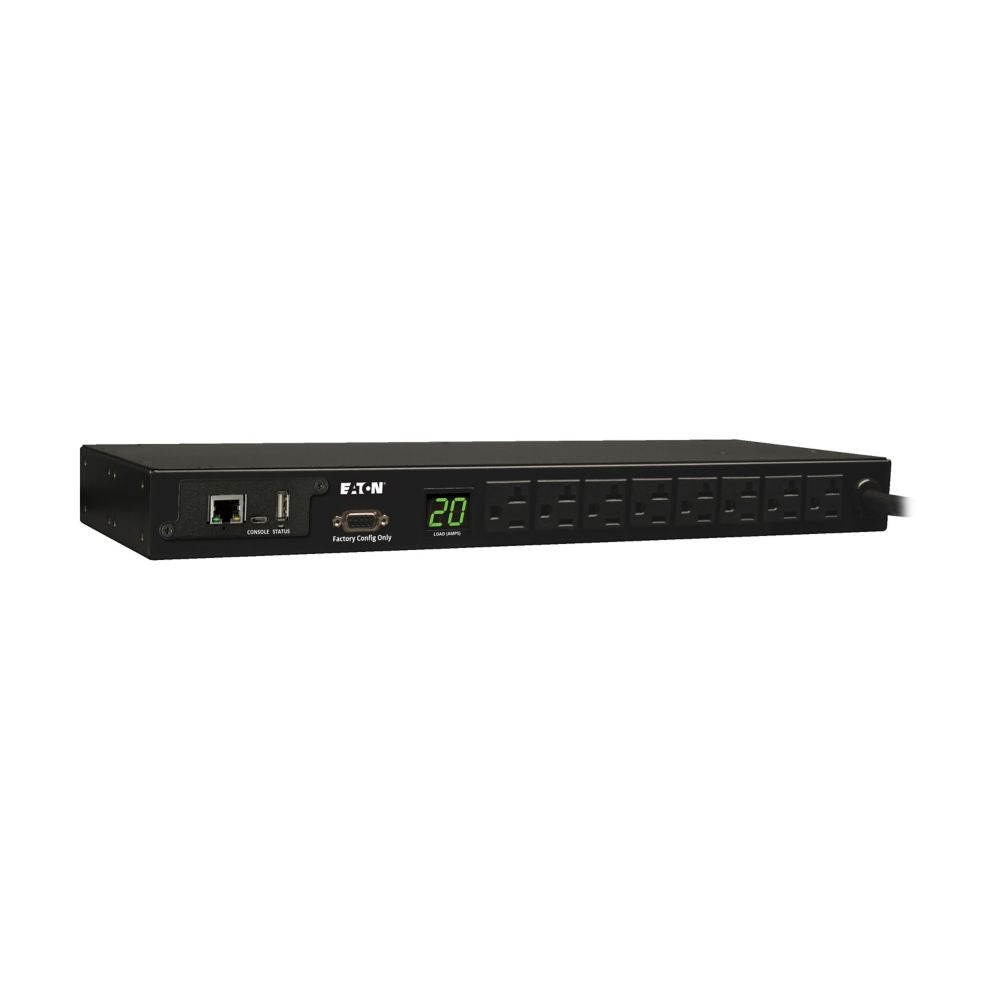

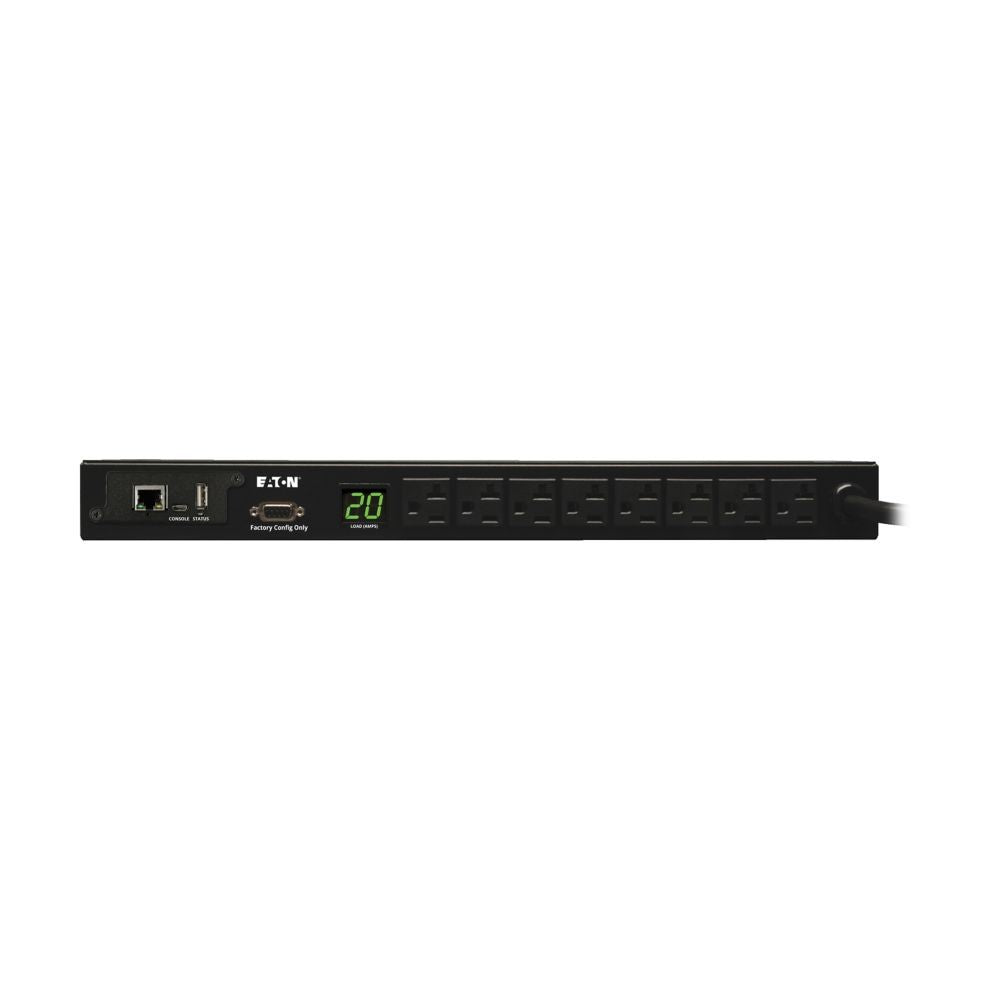

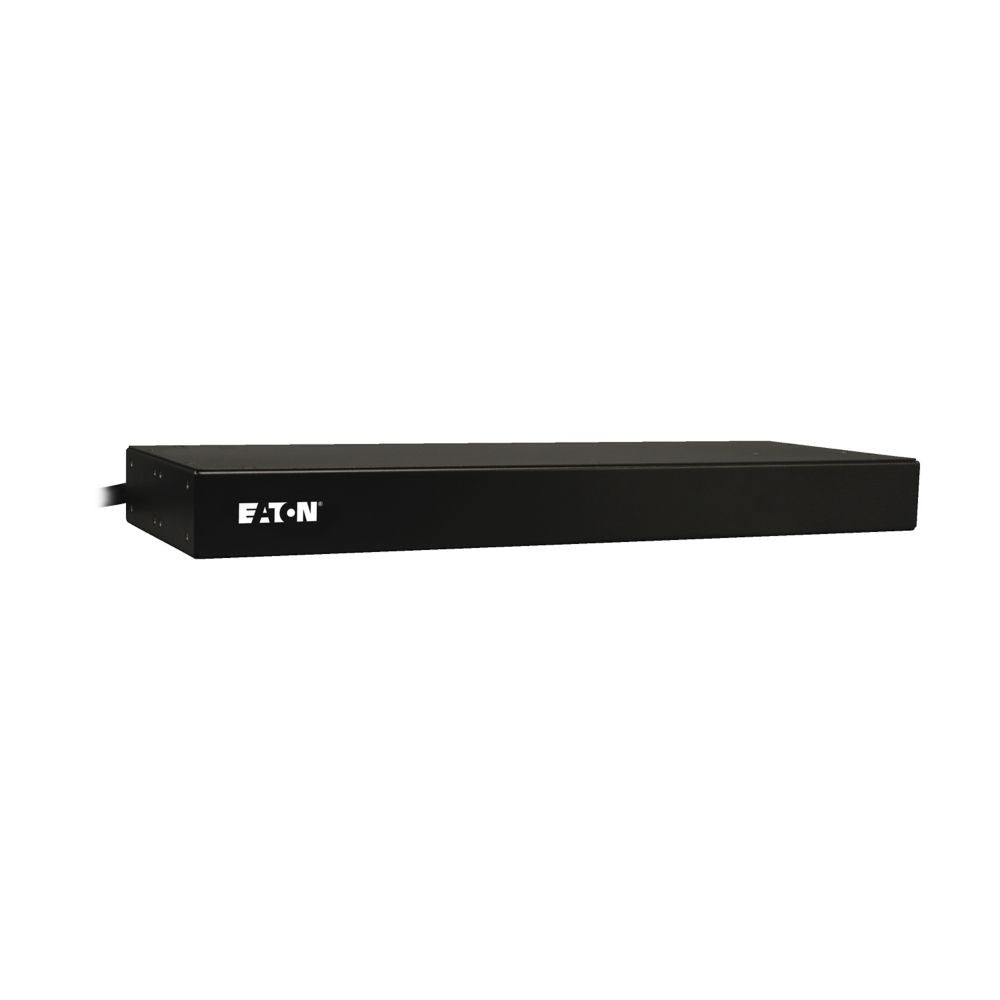

The Eaton PDUMNH20 is a 1.9kW single-phase rack PDU designed for 120V commercial-grade equipment racks. It occupies a single rack unit (1U) and mounts horizontally, making it a practical fit for network closets, server rooms, and other 19-inch rack environments where vertical rack space is limited. The unit ships with a 12-ft input cord terminating in a NEMA L5-20P plug (with a 5-20P adapter included), and delivers power to eight NEMA 5-20R output receptacles rated for standard IT and AV loads.

Unlike a basic power strip, the PDUMNH20 includes a local digital ammeter that displays real-time output current, so facilities staff can confirm the rack is operating within safe load limits without pulling out a clamp meter. This makes it a sensible choice for a 1U rack PDU installation in a colocation cabinet, government space, or broadcast studio equipment rack, anywhere a technician needs quick visual confirmation of circuit loading. The horizontal 1U form factor keeps cable runs tidy in shallow racks and integrates cleanly alongside network switches, KVM extenders, and AV signal processing gear.

Because it is TAA compliant and UL listed, the PDUMNH20 is also a fit for government and public-sector server room installations that require documented compliance. Integrators specifying a monitored PDU for network closet retrofit projects will appreciate that it requires no network configuration to provide basic load visibility, while still supporting the broader Eaton Tripp Lite series accessory ecosystem for future upgrades.

Key Features

• Local Digital Ammeter — A built-in display reports real-time output current in amps so staff can verify safe loading without external test equipment.
• Eight NEMA 5-20R Outlets — Provides eight standard 120V receptacles for powering servers, switches, and AV equipment in a single rack.
• 1U Horizontal Rack-Mount Design — Occupies just one rack unit, preserving vertical space in shallow or densely populated equipment racks.
• 12-ft Input Cord with L5-20P Plug — Includes a locking L5-20P input plug and a 5-20P adapter for flexible outlet compatibility.
• Reversible Mounting Ears — Compatible with 2-post and 4-post racks for straightforward rack PDU installation in varied cabinet types.
• TAA Compliant Construction — Meets Trade Agreements Act requirements, supporting government and public-sector procurement.
• UL 60950-1 Listed — Certified to recognized safety standards for commercial-grade IT power distribution.

Typical Applications

• Data center
• Colocation cabinet
• Server room
• Network closet
• Government space
• Broadcast studio

Technical Specifications

Frequently Asked Questions

Is the PDUMNH20 compatible with standard 19-inch server racks?

Yes. The PDUMNH20 mounts horizontally in a single rack unit and includes reversible mounting ears compatible with both 2-post and 4-post 19-inch equipment racks.

What input power does this rack PDU require?

The PDUMNH20 requires a dedicated 120V, 20A circuit and terminates in a NEMA L5-20P plug, with a 5-20P adapter included for standard outlet compatibility.

Can I monitor the load on this PDU remotely over the network?

The PDUMNH20 provides local load monitoring through its built-in digital ammeter. For remote, network-based monitoring and alerting, consider an Eaton Tripp Lite series PDU with an integrated network card (NIC) model.

How many devices can I connect to the PDUMNH20?

The unit provides eight NEMA 5-20R outlets rated for a combined 1.9kW at 120V, suitable for switches, servers, KVM equipment, and AV rack components.

Does this PDU support AV and broadcast equipment racks, or only IT gear?

Yes. The PDUMNH20 is commonly deployed in AV equipment racks, broadcast studio racks, and network closets alongside standard IT hardware, since its outlets and load rating support typical rack-mount AV devices.

Is this PDU suitable for government or public-sector installations?

Yes. The PDUMNH20 is TAA compliant, which supports procurement requirements common in government and public-sector server room deployments.

What is the warranty on the Eaton PDUMNH20?

Eaton Tripp Lite series PDUs typically carry a 2-year limited warranty. Contact Eaton or Creation Networks to confirm the specific warranty terms for this SKU.

Who can help with installation or integration questions?

Creation Networks' AV/IT team can advise on rack compatibility, circuit requirements, and integration alongside network and AV equipment prior to purchase.
