Eaton PDUMH15-6 – Metered 120V 15A 13-Outlet PDU, 1U
Product Overview

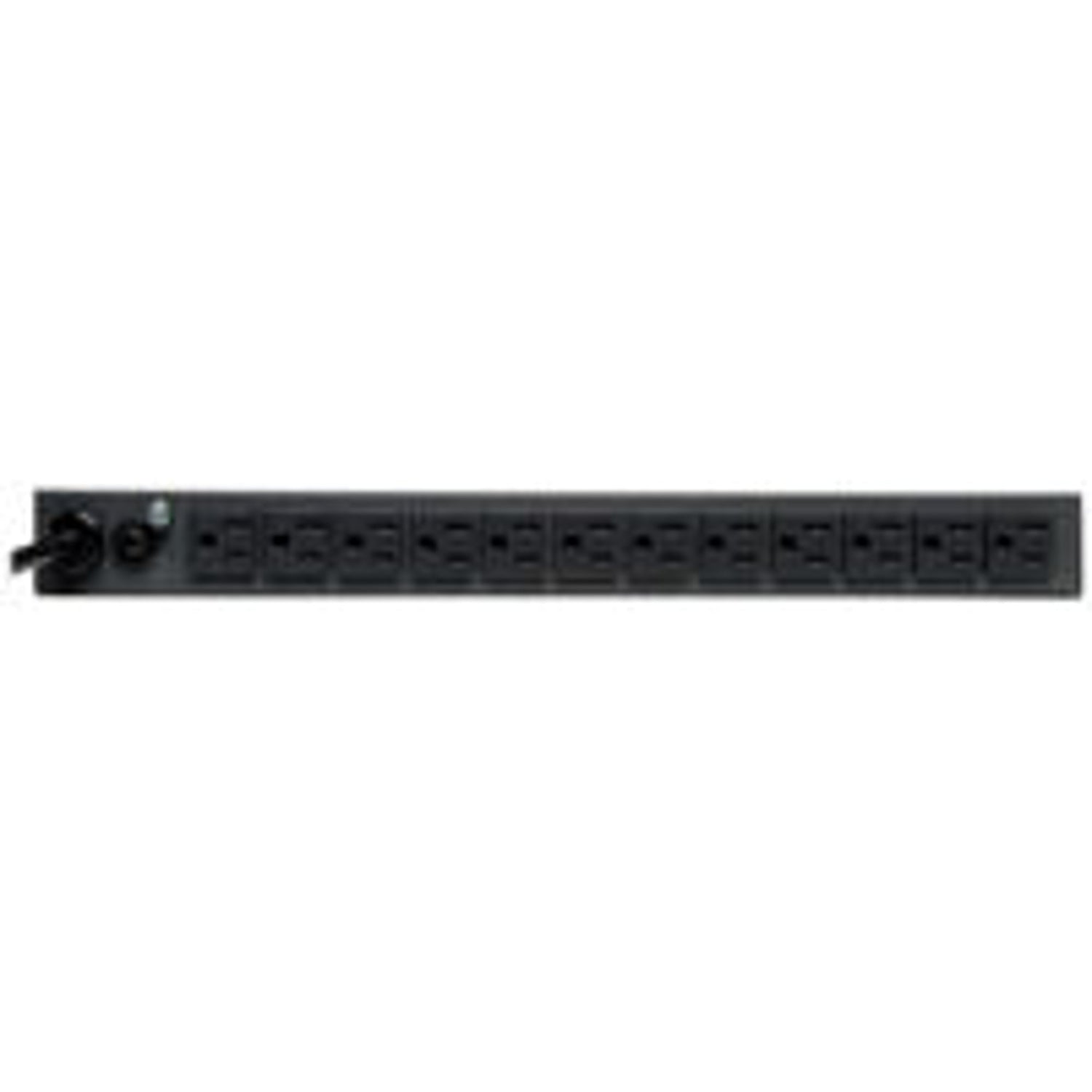

The Eaton PDUMH15-6 is a metered rack PDU that provides reliable, multi-outlet power distribution with real-time local load monitoring. A built-in two-digit current meter shows load level in amps at a glance, helping technicians avoid circuit overloads as equipment is added to a rack. With 13 NEMA 5-15R outlets, a 120V/15A rating, and a horizontal 1U form factor, this metered PDU is a practical fit for network closets and small server rooms that need visibility into current draw without a full network management layer.
Product Description
The PDUMH15-6 delivers rack-mount power distribution from any protected UPS, generator, or mains input power source, with a built-in digital current meter that gives technicians immediate, on-site visibility into load level. This local metering approach lets staff physically check the display before plugging in additional equipment, helping prevent a tripped breaker or overloaded circuit during routine rack changes. The 13 NEMA 5-15R outlets accommodate standard North American equipment power cords, making it a straightforward fit for mixed IT and networking gear.
Construction includes a rugged all-metal housing designed for the wear and tear of an active server room or network closet, along with included mounting accessories for secure rackmount installation. The horizontal 1U form factor fits into a single rack unit of any EIA-standard 19-inch enclosure, and the 6-foot input cord with 5-15P plug reaches comfortably to nearby wall outlets, UPS units, or upstream power strips. This PDU is well suited for facilities that want basic load visibility without the cost or complexity of a networked, remotely managed unit.
Key Features
- Built-In Digital Current Meter — Displays real-time load level in amps for on-site overload prevention.
- 13 NEMA 5-15R Outlets — Supports a wide range of standard North American equipment plugs.
- Rugged All-Metal Housing — Built to withstand continuous use in active server rooms and network closets.
- Horizontal 1U Form Factor — Fits into a single rack unit of any EIA-standard 19-inch rack.
- 6-Foot Input Cord with 5-15P Plug — Reaches nearby wall outlets, UPS units, or upstream power strips.
- Included Mounting Hardware — Simplifies secure rackmount installation.
Technical Specifications
| Input Voltage | 120V |
| Input Current | 15A |
| Input Plug | NEMA 5-15P |
| Input Cord Length | 6 ft. |
| Output Outlets | 13 x NEMA 5-15R |
| Form Factor | Horizontal, 1U |
| Monitoring | Built-in two-digit current meter |
