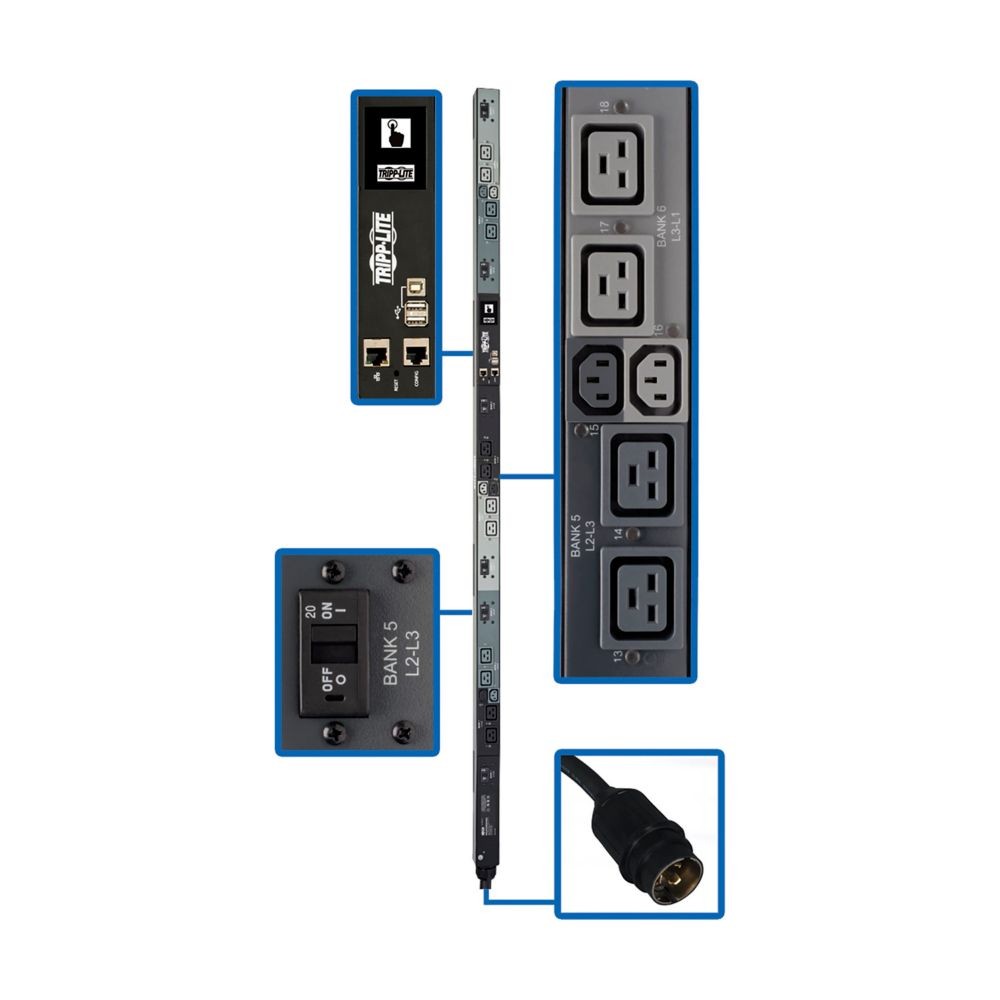

Eaton PDU3EVNR6H50A – 18-Outlet ePDU G3 Metered PDU

Product Overview

The Eaton PDU3EVNR6H50A is a 208V 3-phase metered input rack PDU from the ePDU G3 platform, purpose-built for server room and colocation cabinet installations where higher-current C19 equipment is common. This Eaton ePDU G3 metered PDU combines 6 C13 and 12 C19 outlets in a 0U vertical unit, supporting rack PDU installation for mixed server, storage, and network loads. Integrators specifying a 3-phase metered PDU for data center or colocation cabinet builds use this model where load monitoring is required without the added complexity of outlet switching.

Product Description

The Eaton PDU3EVNR6H50A is rated for 208V 3-phase input at 40A, delivering up to 14.4 kW through 18 total outlets: 6 IEC C13 and 12 IEC C19 receptacles. Input connects through a Hubbell CS8365C locking connector on a 6-foot cord, a configuration commonly specified in North American data center and colocation electrical infrastructure. The higher proportion of C19 outlets relative to C13 makes this PDU well suited to cabinets with storage arrays, blade enclosures, and other higher-draw equipment alongside standard servers.

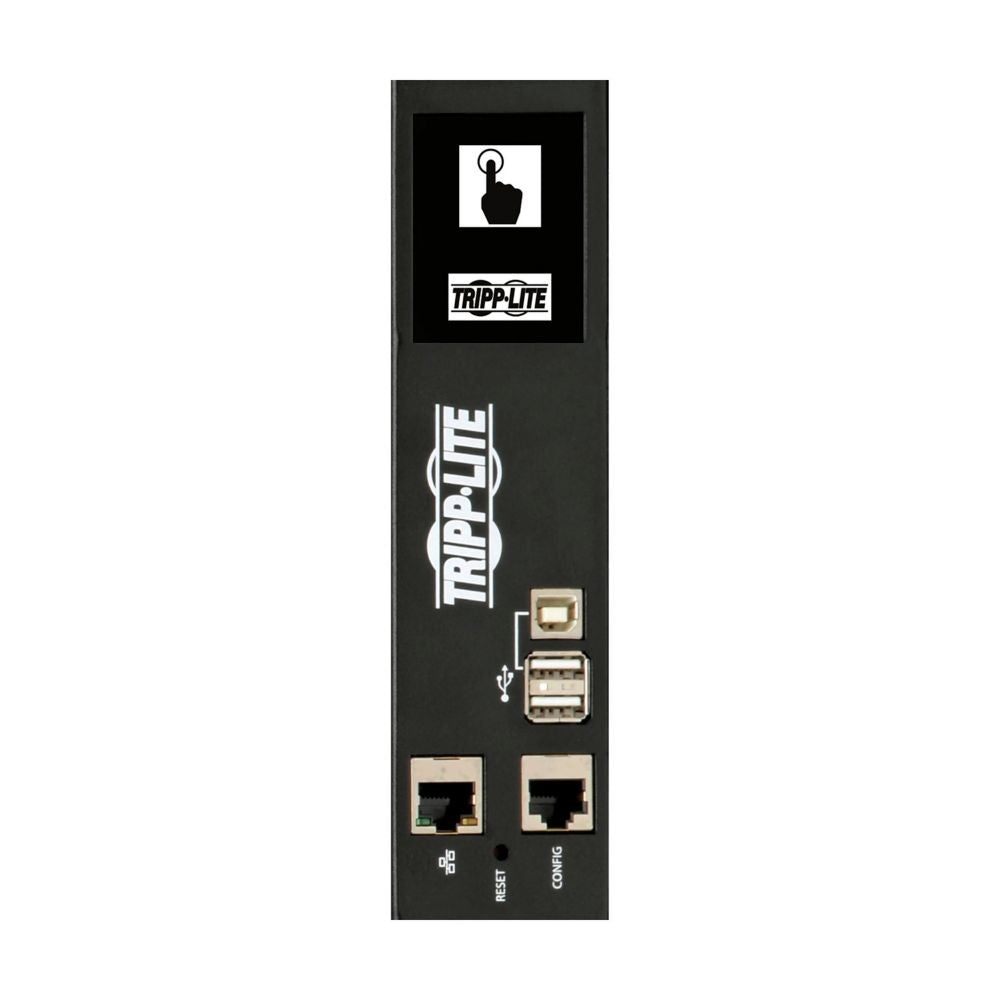

The unit includes an LX platform interface supporting compatibility with Eaton's PowerAlert Device Manager, allowing facilities and IT teams to monitor input load remotely as part of a broader server room or data center power monitoring strategy. This is particularly relevant for commercial AV/IT integrators who need visibility into circuit loading across multiple cabinets without manually checking each PDU at the rack. The 0U vertical mounting profile runs the height of the rack frame, keeping the outlet count fully accessible without using horizontal rack unit space.

When planning a rack PDU installation with the PDU3EVNR6H50A, integrators should confirm that facility electrical service supports 208V 3-phase circuits terminated with a CS8365C receptacle, and that the 6:12 ratio of C13 to C19 outlets matches the cabinet's equipment mix, since this model is optimized for loads skewed toward C19-terminated devices rather than a C13-only server stack.

Key Features

• 18 Total Outlets — 6 C13 and 12 C19 receptacles are configured for cabinets with a higher proportion of storage, blade, and other C19-terminated equipment.
• 208V 3-Phase, 14.4 kW Capacity — The unit delivers substantial power capacity suited to dense server room and colocation cabinet loads.
• Hubbell CS8365C Input Connector — A locking industrial connector common to North American data center electrical infrastructure improves connection security.
• LX Platform Monitoring Interface — Compatibility with PowerAlert Device Manager supports remote load monitoring across a facility.
• 0U Vertical Mounting — Vertical installation preserves horizontal rack unit space for active equipment.
• Multi-Certification Compliance — UL 60950-1, CSA, FCC Class A, RoHS, and NOM certifications support commercial and regulated facility deployments.

Typical Applications

• Data center
• Colocation cabinet
• Server room
• Network closet

Technical Specifications

Frequently Asked Questions

What electrical circuit does the PDU3EVNR6H50A require?

It requires a 208V, 3-phase circuit rated for 40A, terminated with a Hubbell CS8365C locking receptacle. Verify this matches your facility's electrical infrastructure before ordering.

What kind of equipment is this PDU best suited for?

With 12 C19 and only 6 C13 outlets, it is best suited for cabinets with a higher proportion of storage arrays, blade servers, and other C19-terminated equipment rather than a C13-only server stack.

Can this PDU be integrated into an existing power monitoring system?

Yes. The LX platform interface supports compatibility with Eaton's PowerAlert Device Manager for remote load monitoring alongside other Eaton power devices.

Does the PDU3EVNR6H50A support individual outlet control?

No. This is a metered input model, reporting total load without per-outlet switching. Eaton's switched or managed ePDU G3 models provide outlet-level control if needed.

How is this PDU mounted in the rack?

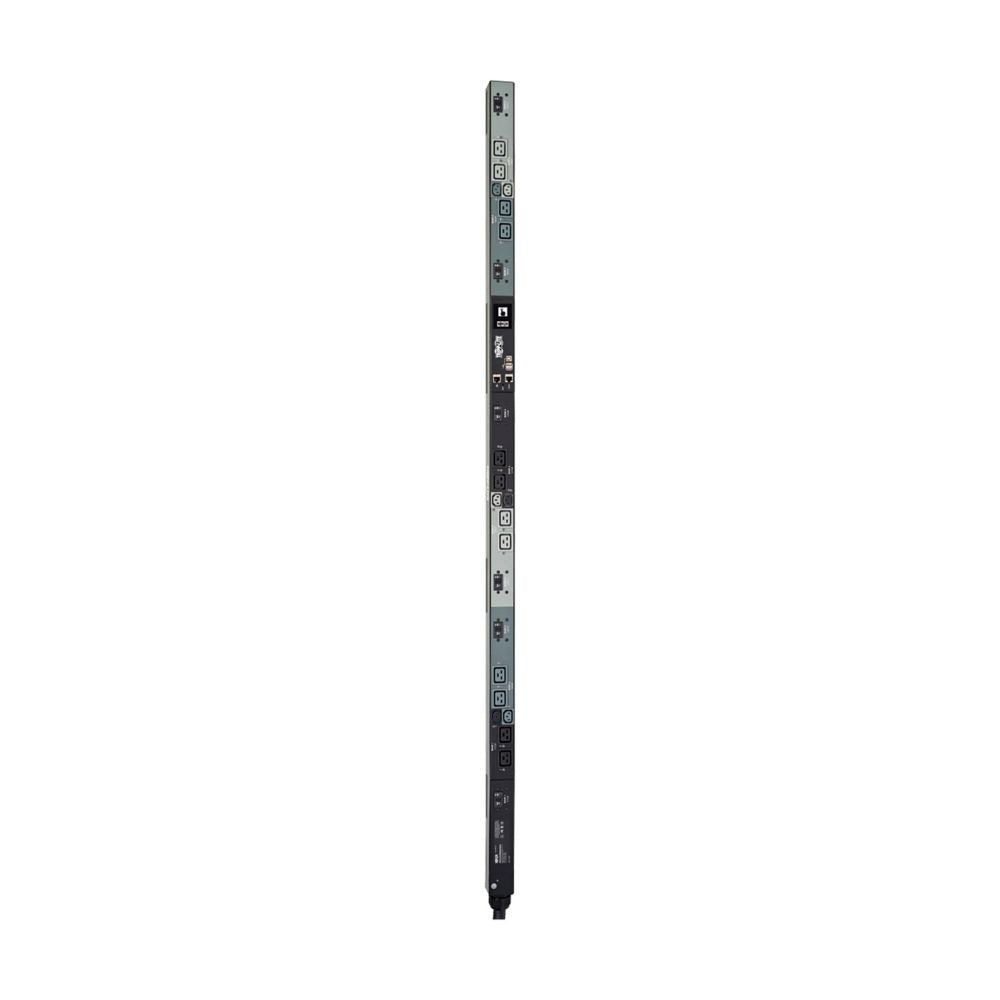

It mounts vertically in a 0U configuration along the rack frame, which keeps all 18 outlets accessible without using horizontal rack unit space.

What warranty applies to this product?

Specific warranty term details for this model were not published by the manufacturer at time of writing. Contact Eaton or Creation Networks for current terms.

Can Creation Networks help confirm compatibility with my existing rack infrastructure?

Yes. Creation Networks can review your cabinet's electrical service and equipment mix to confirm the PDU3EVNR6H50A fits your server room or colocation cabinet deployment.
