Eaton PDU3EVN10G60B – 48-Outlet ePDU G3 Metered PDU

Product Overview

The Eaton PDU3EVN10G60B is a metered input rack PDU from the ePDU G3 platform, built for 3-phase power distribution in data center, colocation cabinet, and network closet installations. As an Eaton ePDU G3 metered PDU, it pairs an onboard LCD display with a Gigabit-capable LX network interface, giving integrators real-time input load data during rack PDU installation and ongoing operation. With 48 outlets and a 0U vertical form factor, it supports commercial-grade server room power distribution where load balancing and remote visibility matter. This unit fits deployments needing a dependable 3-phase metered PDU without the added cost of individual outlet switching.

Product Description

The Eaton PDU3EVN10G60B is a 3-phase, 0U vertical metered rack PDU rated for 200-240V input at 35A, providing up to 14.5 kW across 48 total outlets. It connects to facility power through an IEC 60309 60A blue (3P+E) plug on a 10-foot cord, and includes an integrated LCD display for local monitoring of input voltage, current, and load status. This makes it a practical Eaton ePDU G3 metered PDU choice for colocation cabinets and network closets where technicians need to confirm circuit loading directly at the rack without additional test equipment.

Beyond the local display, the PDU3EVN10G60B includes an LX platform network interface with Gigabit Ethernet connectivity, enabling remote monitoring through Eaton's PowerAlert Device Manager or compatible SNMP-based tools. This supports centralized power monitoring across multiple cabinets in a data center or colocation environment, which is a common requirement for commercial AV/IT integrators managing power infrastructure across several racks. The 0U vertical mounting keeps the unit's full outlet count available along the rack frame without consuming rack unit space needed for servers, switches, or storage.

Because the ePDU G3 platform standardizes its mechanical and network interface across the metered, switched, and managed product lines, integrators specifying the PDU3EVN10G60B for a rack PDU installation can plan for future upgrades to switched or managed models within the same physical footprint if outlet-level control becomes a requirement later. This is a useful consideration for data center and colocation cabinet builds designed for phased power infrastructure upgrades.

Key Features

• 48 Total Outlets — A high outlet count supports full-cabinet deployments of servers, switches, and network equipment on a single PDU.

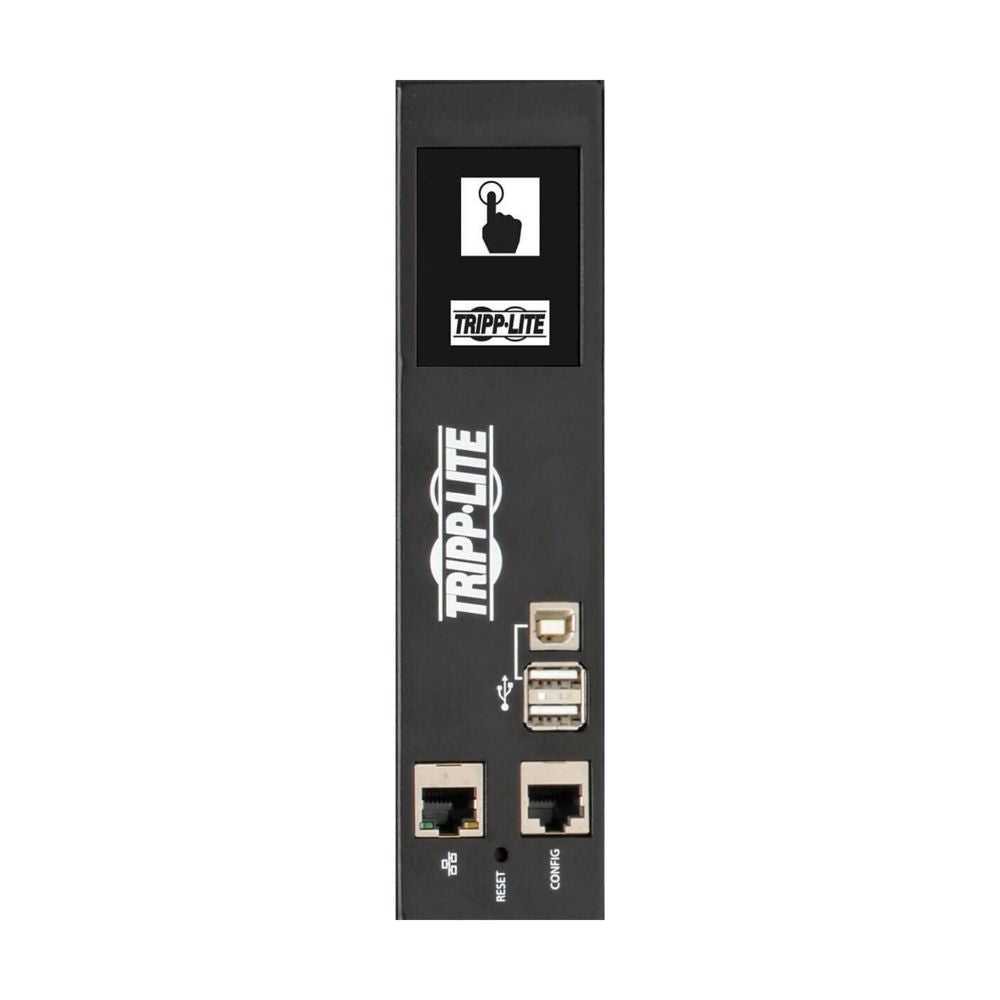

• Onboard LCD Display — Local voltage, current, and load readouts let technicians verify circuit conditions during rack PDU installation without external meters.
• Gigabit LX Network Interface — Remote monitoring through PowerAlert Device Manager supports centralized visibility across a data center or colocation deployment.
• 3-Phase 14.5 kW Capacity — Power is distributed across three phases for higher aggregate capacity than comparable single-phase PDUs.
• 0U Vertical Mounting — The PDU mounts along the rack frame, preserving horizontal rack unit space for active equipment.
• IEC 60309 60A Input Plug — A standard industrial-grade connector simplifies electrical whip sourcing and rough-in planning.
• Multi-Certification Compliance — UL 60950-1, CSA, FCC Class A, RoHS, and NOM certifications support use in regulated commercial and government facilities.

Typical Applications

• Data center
• Colocation cabinet
• Server room
• Network closet
• Government space

Technical Specifications

Frequently Asked Questions

What electrical service does the PDU3EVN10G60B require?

It requires a 3-phase, 200-240V circuit rated for 35A, terminated with an IEC 60309 60A blue (3P+E) receptacle. Confirm this matches your facility's available circuit before ordering.

Can I monitor this PDU remotely as part of an existing network management system?

Yes. The PDU3EVN10G60B includes a Gigabit-capable LX network interface compatible with Eaton's PowerAlert Device Manager and standard SNMP monitoring tools.

Does this PDU support outlet-level switching?

No. The PDU3EVN10G60B is a metered input model that reports total load but does not switch individual outlets. Eaton's switched (PDU3EVS) or managed models provide outlet-level control on the same ePDU G3 platform.

How is the unit mounted in a rack cabinet?

It mounts vertically in a 0U configuration along the rack frame, keeping all 48 outlets available without occupying rack unit space.

What outlet cord length ships with this PDU?

The unit ships with a 10-foot input power cord terminated in an IEC 60309 60A blue plug, which should be accounted for in electrical rough-in planning.

What warranty coverage applies to this PDU?

Specific warranty term details for this model were not published by the manufacturer at time of writing. Contact Eaton or Creation Networks directly for current warranty terms and support options.

Can Creation Networks assist with sizing this PDU for my rack's equipment load?

Yes. Creation Networks can review your cabinet's equipment list and circuit availability to confirm the PDU3EVN10G60B's 14.5 kW, 48-outlet configuration meets your data center or network closet power requirements.
