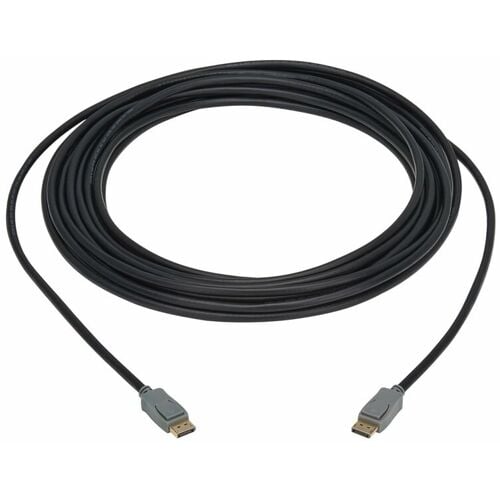

Eaton P580-035-4K6 – 35 ft 4K DisplayPort Cable

Product Overview

The Eaton P580-035-4K6 is a 35 ft. DisplayPort 1.2 cable built to carry 4K video from an AV rack to a display, projector, or digital signage player over a long cable run. This commercial 4K DisplayPort cable supports Ultra HD resolutions up to 3840 x 2160 at 60Hz, making it suitable for boardroom displays, digital signage, and conference room video installations that need a reliable long-run DisplayPort cable for AV rack to display connections. Latching connectors on both ends lock the cable in place at the source and display, preventing accidental disconnection in a rack or behind a mounted screen. HDCP 2.2 support lets this cable pass protected 4K content from Blu-ray players, media servers, and streaming sources without compatibility issues.

Product Description

Built on a patented bonded-pair design with a slim 7.3mm outer diameter, the P580-035-4K6 stays flexible enough to route through cable trays, wall plates, and conduit runs common in commercial AV installations, despite its 35 ft. length. The cable supports HBR2 (High Bit Rate 2) bandwidth up to 21.6 Gbps, enough headroom for 4K 60Hz 4:4:4 chroma signals from gaming consoles, laptops, media servers, satellite and cable boxes, and 4K Blu-ray players. Latching DisplayPort connectors on both male-to-male ends provide a secure mechanical lock at the source device and display, which matters for a digital signage cable run behind a wall-mounted display where a loose connector can go unnoticed. Gold-plated contacts and a fully passive design mean no external power or signal boosting is required at this length, simplifying installation for AV integrators running cable from a rack to a distant display. HDCP 2.2 compliance ensures protected 4K content plays correctly across the connection, relevant for any conference room or digital signage deployment sourcing content from streaming devices or media players. At 35 ft., this cable is sized for AV racks located in an equipment closet some distance from the display, rather than a short desktop-to-monitor connection.

Key Features

• 4K 60Hz Support — Carries resolutions up to 3840 x 2160 at 60Hz for sharp digital signage and display content.
• Latching Connectors — Locking DisplayPort ends on both sides prevent accidental disconnection in a rack or behind a display.
• HDCP 2.2 Compliant — Passes protected 4K content from Blu-ray players, streaming devices, and media servers without compatibility issues.
• 35 ft. Length — Reaches from an equipment rack to a distant display or projector without a signal extender.
• Slim 7.3mm Bonded-Pair Design — Stays flexible for routing through cable trays and wall plates despite its length.
• 21.6 Gbps Bandwidth (HBR2) — Provides ample headroom for full 4:4:4 chroma 4K signal transmission.
• Fully Passive Cable — Requires no external power or signal boosting for reliable operation at this length.

Technical Specifications
