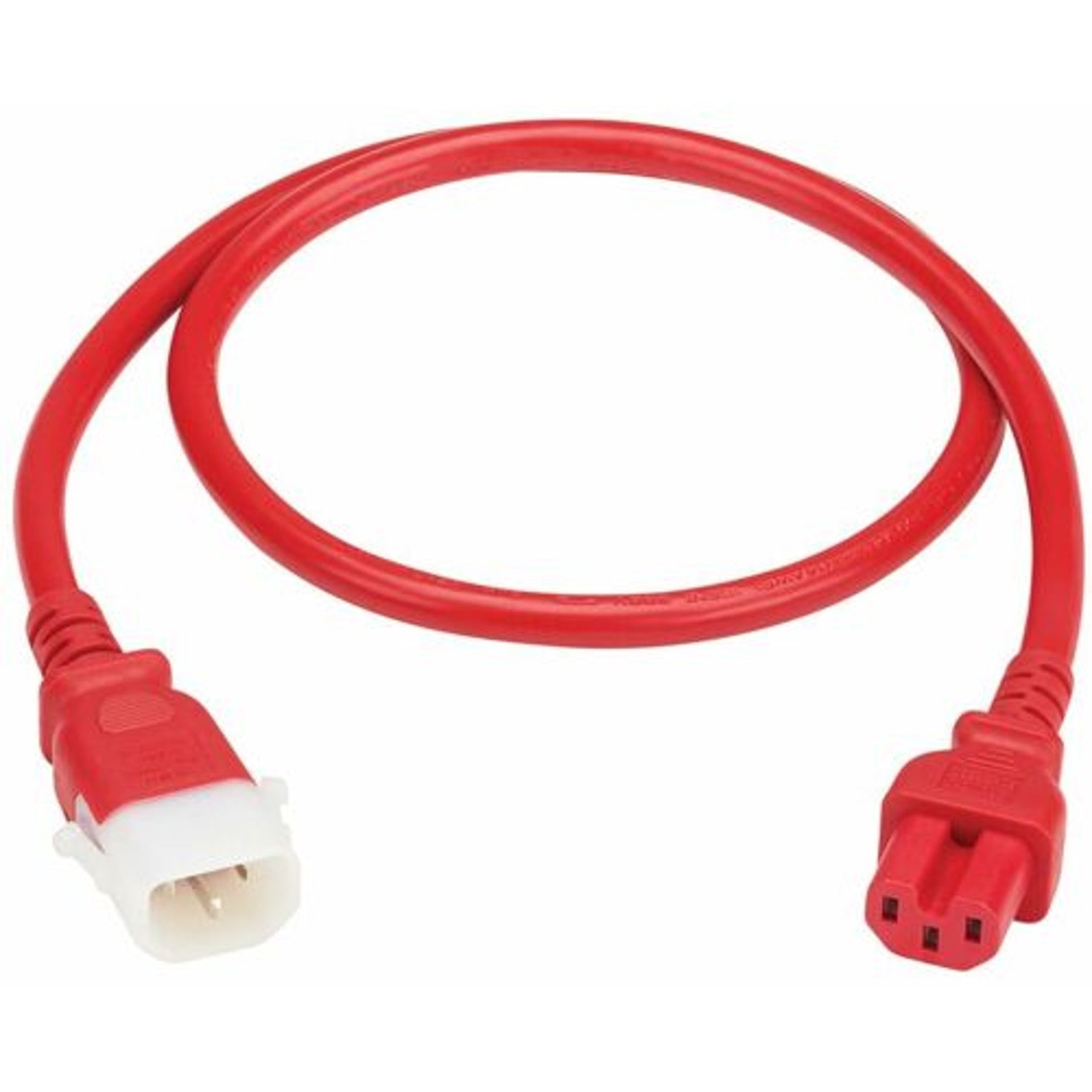

Eaton P018-E03-ARD-6 – C15 to C14 Cord 6-Pack, Red

Product Overview

The Eaton P018-E03-ARD-6 is a 6-pack of heavy-duty C15 to P-Lock C14 PDU power cords engineered for higher-temperature rack equipment such as PoE switches. Rated 15A at 250V with 14 AWG wire, this C15 to C14 power cable set gives integrators a heavy-gauge, higher-temperature-rated connection option for demanding server room and data center installs. The red color coding and 6-pack quantity make it easy to identify and deploy across multiple rack positions during a large rollout.

Product Description

Standard C13/C14 cords are rated for general IT equipment, but devices that run hotter — most notably Power over Ethernet (PoE) switches — require the C15 connector, which is designed to handle higher ambient temperatures at the equipment inlet. The P018-E03-ARD-6 pairs a C15 connector on the device end with a P-Lock C14 connector on the PDU end, giving PoE switches and similarly hot-running rack equipment a heavy-duty, 14 AWG power path rated 15A at 250V. The P-Lock locking mechanism secures the C14 end into a compatible PDU or UPS outlet, which matters in busy server rooms and data centers where cords are frequently handled during moves, adds, and changes. At 3 ft. (0.9 m), the cords are sized for direct PDU-to-device connections within a single rack, and the 6-pack quantity supports outfitting an entire cabinet of PoE switching or standardizing cabling across a larger equipment rollout. The red finish helps technicians visually distinguish C15-rated, higher-temperature cords from standard C13 cords elsewhere in the rack, which is a useful safeguard when multiple cord types are in service side by side. Integrators deploying PoE switch stacks in data center, server room, or network closet environments can use this cord set to ensure the power connection matches the thermal rating the equipment inlet requires.

Key Features

• C15 Connector for Higher-Temperature Equipment — Matches the thermal rating required by PoE switches and other rack equipment that runs hotter than standard IT gear.
• 14 AWG Heavy-Gauge Wire — Delivers a higher-rated, heavier-gauge power connection suitable for sustained equipment loads.
• P-Lock C14 Connector — Locks into a compatible PDU or UPS outlet to reduce the chance of accidental disconnection during rack servicing.
• 15A, 250V Rating — Aligns with the electrical rating of common data center rack PDUs.
• Red Color Coding — Makes it easy to visually distinguish higher-temperature C15 cords from standard C13 cords in the same rack.
• 6-Pack Configuration — Supplies enough cords to power a full cabinet of PoE switches or support a large-scale rollout.

Typical Applications

• PoE switch stacks in data center and server room racks
• Network closets housing higher-temperature switching equipment
• Colocation cabinets requiring C15-rated power connections
• Large-scale IT rollouts needing standardized, color-coded cord sets

Technical Specifications

Frequently Asked Questions

Why is a C15 connector needed instead of a standard C13?

C15 connectors are rated for higher operating temperatures at the equipment inlet, which is required by devices such as PoE switches that generate more heat than typical IT equipment.

Does the C14 end lock into any PDU?

The P-Lock feature engages with PDU outlets designed to accept the P-Lock retention mechanism. The connector will also plug into standard C14 outlets, but the locking feature requires a compatible outlet.

Is this cord compatible with non-PoE equipment?

Yes, as long as the device's power inlet accepts a C15 connector. It is commonly used for PoE switches but works with any C15-rated equipment inlet.

How many cords come in this pack?

This listing includes a 6-pack, suitable for powering multiple switches or standardizing cabling across a rack or rollout.

What length are these cords?

Each cord measures 3 ft. (0.9 m), designed for direct PDU-to-device connections within a single rack.

What warranty applies to this product?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.
