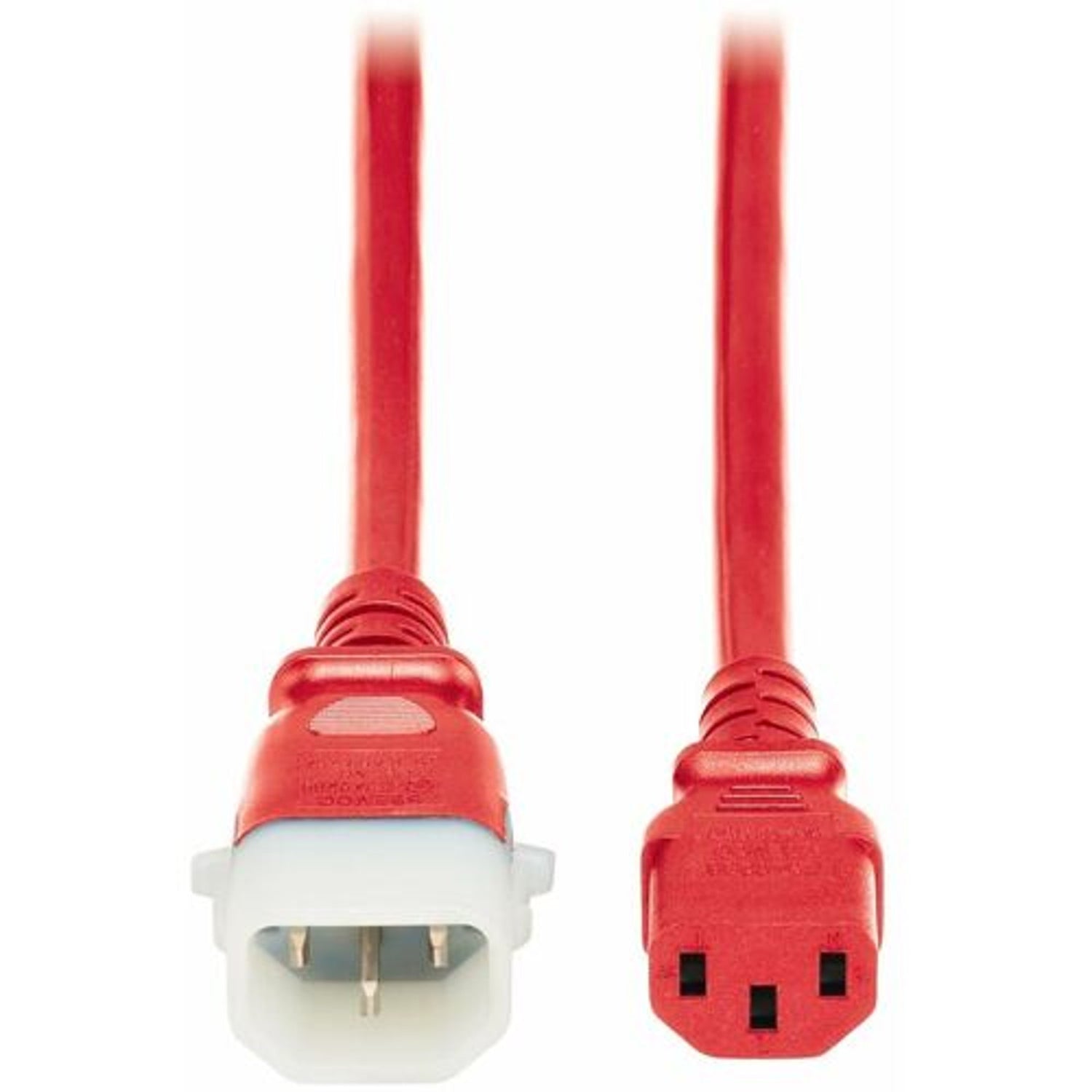

Eaton P005-E10-ARD-6 – Heavy-Duty C13 to C14 PDU Cords, 10 ft.

Product Overview

The Eaton P005-E10-ARD-6 is a heavy-duty C13-to-C14 PDU power cord set built with 14 AWG wire for network devices and servers that need a higher-rated, heavier-gauge connection. Rated for 15A at 250V, these power extension cords are designed for large server applications in data centers and colocation facilities that need extra reach. Supplied as a six-pack in red at 10 ft. (3.1 m), this longer cord length is well suited for large rack enclosures or PDUs mounted at a distance from equipment.

Product Description

These C13-to-C14 power cables use 14 AWG wire, a heavier gauge than the 18 AWG found in general-purpose jumper cords, making them a reliable choice for large server applications that require a higher-rated connection. The C13 connector matches the power inlet on the majority of servers, switches, and network appliances, while the P-Lock C14 connector locks securely into a compatible PDU outlet, reducing the risk of an accidental disconnect during rack maintenance or moves, adds, and changes.

At 10 ft. (3.1 m), the P005-E10-ARD-6 offers extra reach for larger rack enclosures, taller cabinets, or installations where the PDU and equipment are mounted at a greater distance from each other. The red jacket color supports color-coded cable management, a common practice in data centers running redundant A/B power feeds where visual circuit identification helps reduce human error. Supplied as a six-pack, this set is a practical, cost-effective option for large-scale equipment rollouts and rack standardization projects.

Key Features

• 14 AWG Heavy-Gauge Wire — Supports large server applications requiring a higher-rated connection.
• C13 to P-Lock C14 Connectors — Compatible with standard equipment inlets and locking PDU outlets.
• 15A, 250V Rating — Sized for demanding server and network equipment.
• 10 ft. (3.1 m) Length — Provides extra reach for larger rack enclosures and taller cabinets.
• Red Jacket Color — Supports color-coded cable management for dual power path installations.
• Six-Pack Quantity — Reduces per-unit cost for large-scale rack deployments.

Typical Applications

• Data center rack power distribution
• Colocation facility deployments
• Server room equipment connections requiring extra cord length
• Network closet installations

Technical Specifications

Frequently Asked Questions

Will this cord work with any PDU?

The P-Lock C14 connector mates with PDUs that have a P-Lock-compatible outlet, including Eaton G4 and newer PDUs with C13 and C39 outlets. Confirm your PDU's outlet type before ordering.

Why choose the 10 ft. length over a shorter cord?

The 10 ft. (3.1 m) length is useful for larger rack enclosures, taller cabinets, or installations where equipment sits farther from the PDU than a standard-length cord can reach.

Is 14 AWG wire necessary for my equipment?

14 AWG is recommended for large server applications or equipment drawing higher current than a standard-gauge cord comfortably supports. Check your equipment's power draw specifications if unsure.

Can I mix these with shorter cords in the same rack?

Yes, cord length and color are independent of electrical rating, so these can be mixed with other compatible cords as your rack layout requires.

What warranty applies to this power cord?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.

Who can help me confirm compatibility before I order?

Creation Networks' team can review your PDU and equipment inlet types to confirm compatibility before you place an order.
