Eaton EVMIGU23X-E – Universal-Input Metered PDU 5-23kW
Product Overview
The Eaton EVMIGU23X-E is a 0U vertical, universal-input metered rack PDU designed for data centers that need one PDU model to cover a wide range of voltage configurations, from 200V to 415V. Its end-entry input and 42-outlet design make it a flexible option for large server and network racks. Buyers researching a universal-input metered rack PDU for data center or colocation deployments will find this model built for scale across mixed-voltage environments. It fits server rooms, colocation cages, and enterprise data center racks.
Product Description
The EVMIGU23X-E accepts universal input across 200-415V at 16-55A, allowing the same PDU model to be configured for a wide range of regional and facility power standards, with a rated capacity spanning 5kW to 23kW depending on configuration. It delivers 42 total outlets — 24 IEC C13 and 18 IEC C39 combo receptacles that accept both C14 and C20 corded devices — giving rack designers flexibility to mix standard servers with higher-draw switches or storage arrays on a single PDU. The end-entry power cord design routes input cabling from the side of the rack rather than the top or bottom, which can simplify cable management in certain cabinet layouts. Built-in Ethernet connectivity supports network-based monitoring, letting facilities teams track load remotely as part of a broader data center power monitoring strategy. The 0U vertical, 72-inch form factor mounts along the rear rail without consuming rack unit space, making the full 42-outlet count available across racks packed with servers and network gear. This PDU is well suited to data centers and colocation facilities that standardize on a single universal-input PDU model to reduce SKU complexity across regions with different voltage standards.
Key Features
- Universal 200-415V Input — One PDU model supports multiple regional voltage standards, simplifying data center standardization.
- 5-23kW Capacity Range — Scales from lighter loads to high-density rack deployments.
- 42 Outlets (24 C13 / 18 C39) — Combo C39 receptacles accept both C14 and C20 plugs for equipment flexibility.
- End-Entry Input Cord — Side cable routing simplifies cabinet cable management.
- Ethernet Network Monitoring — Supports remote, network-based load monitoring.

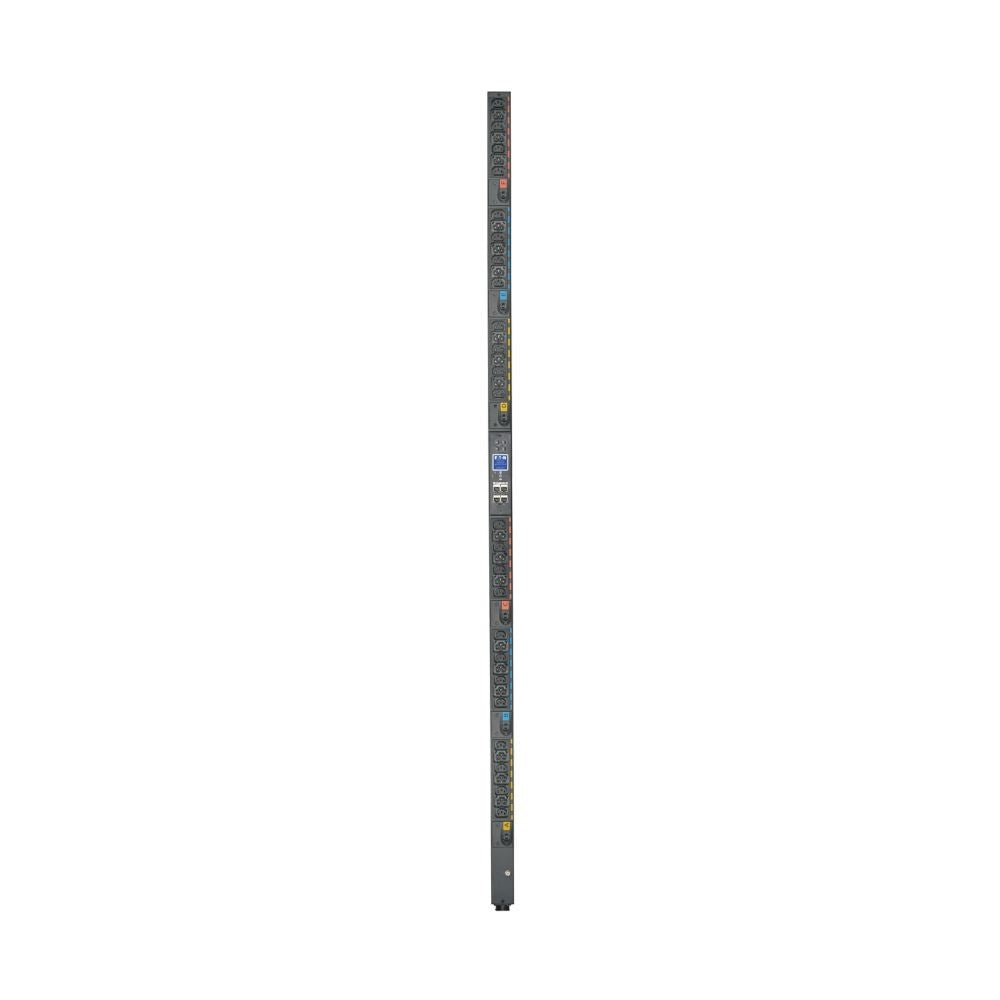

- 0U Vertical Mounting — 72-inch profile preserves rack unit space for active equipment.
Technical Specifications
| Spec | Value |
|---|---|
| Input Voltage | 200-415V, universal input |
| Input Current | 16-55A |
| Max Output Power | 5-23kW (configuration dependent) |
| Output Receptacles | 24x C13, 18x C39 (42 total) |
| Input Cord Type | End-entry power cord |
| Form Factor | 0U, vertical |
| Dimensions (H x W x D) | 72 in x 2.56 in x 2.05 in |
| Weight | 9.7 lb |
| Monitoring | Ethernet network interface, metered input |
