Eaton EVMIGU23A-E – Universal-Input Metered Rack PDU 23kW
Product Overview

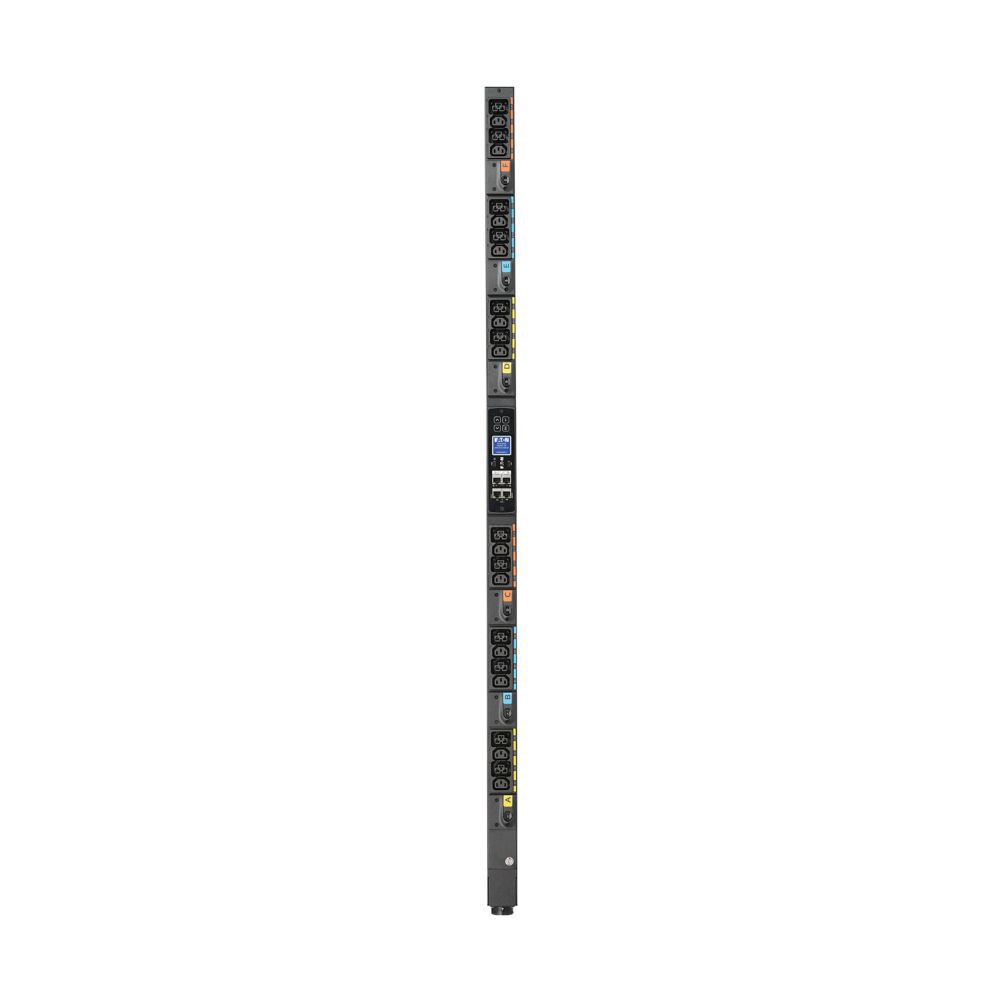

The Eaton EVMIGU23A-E is a universal-input metered rack PDU built for data centers and server rooms that need one PDU platform to flex across multiple voltage configurations. This 0U vertical unit accepts single-phase or 3-phase input from 200V to 415V, letting integrators standardize on a single metered PDU SKU across mixed-voltage facilities. With a capacity of up to 23kW and end-entry input, it is well suited to enterprise racks and colocation environments running international or high-voltage 3-phase power. Facilities teams specifying a universal-input metered PDU for multi-region deployments will find this model reduces the number of PDU variants needed in inventory.
Product Description
This PDU is part of Eaton's ePDU G4 universal-input metered lineup (the EVMI-GU naming denotes a metered-input, universal/global-input variant), designed so a single hardware platform can support 200-415V single-phase or 3-phase installations depending on the input power cable selected. Because the unit ships without a fixed input cord, installers choose from Eaton's range of region- and voltage-specific input cables to match the exact facility circuit, which is why this model is commonly sold with input cabling as a separate line item. It provides 24 total outlets configured as 12x C13 and 12x C39 combo receptacles, with the C39 outlets accepting both C14 and C20 connectors for added device compatibility. The 0U vertical form factor mounts along the rear rail using toolless mounting buttons, keeping installation straightforward in racks 32U or taller. This PDU is a strong fit for global colocation providers, multi-region data centers, and any commercial AV/IT deployment standardizing on universal-input metered PDUs rather than stocking multiple region-specific models.
Key Features
- Universal 200-415V Input — Supports single-phase or 3-phase circuits across a wide voltage range for flexible global deployment.
- Up to 23kW Capacity — Handles high-density racks with substantial power draw.
- 24 Outlets (12x C13, 12x C39 Combo) — C39 combo receptacles accept both C14 and C20 connectors for broader equipment compatibility.
- End-Entry Input — Simplifies cable routing in racks with limited rear clearance.
- 0U Vertical, Toolless Mounting — Installs quickly in 32U+ racks without consuming usable rack space.
- Metered Monitoring with Network Module — Provides remote visibility into load and power quality via SNMP and LCD display.
Typical Applications
- Data center
- Colocation facility
- Server room
- Network closet
Technical Specifications
| Spec | Value |
|---|---|
| Input Voltage | 200-415V (single-phase or 3-phase) |
| Max Input Current | 55A |
| Power Rating | 5-23kW (23kVA max), depending on configuration |
| Output Receptacles | 12x C13, 12x C39 combo (24 total) |
| Form Factor | 0U, vertical, toolless mounting |
| Monitoring | Metered input with Eaton network module, LCD, SNMP support |
| Input Plug/Cord | Sold separately — 17 removable input power cables with 15 plug options |
| Rack Compatibility | 32U and taller racks |
Frequently Asked Questions
Does the EVMIGU23A-E come with an input cord?
No. The input cable is sold separately, chosen from Eaton's range of region- and voltage-specific power cables to match your facility circuit.
Can this PDU be used across different regional voltage standards?
Yes. It accepts 200-415V single-phase or 3-phase input, letting integrators standardize on one PDU SKU across multi-region deployments.
What rack size is required for the EVMIGU23A-E?
The unit is designed for 32U and taller racks and mounts along the rear rail using toolless mounting buttons.
Does this PDU support remote monitoring?
Yes. It includes a network module with SNMP support and an LCD display for local and remote load visibility.
Does the EVMIGU23A-E provide per-outlet switching?
No. It is a metered PDU that reports load data; outlet-level switching is not included on this model.
What warranty does Eaton provide on this PDU?
Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.
