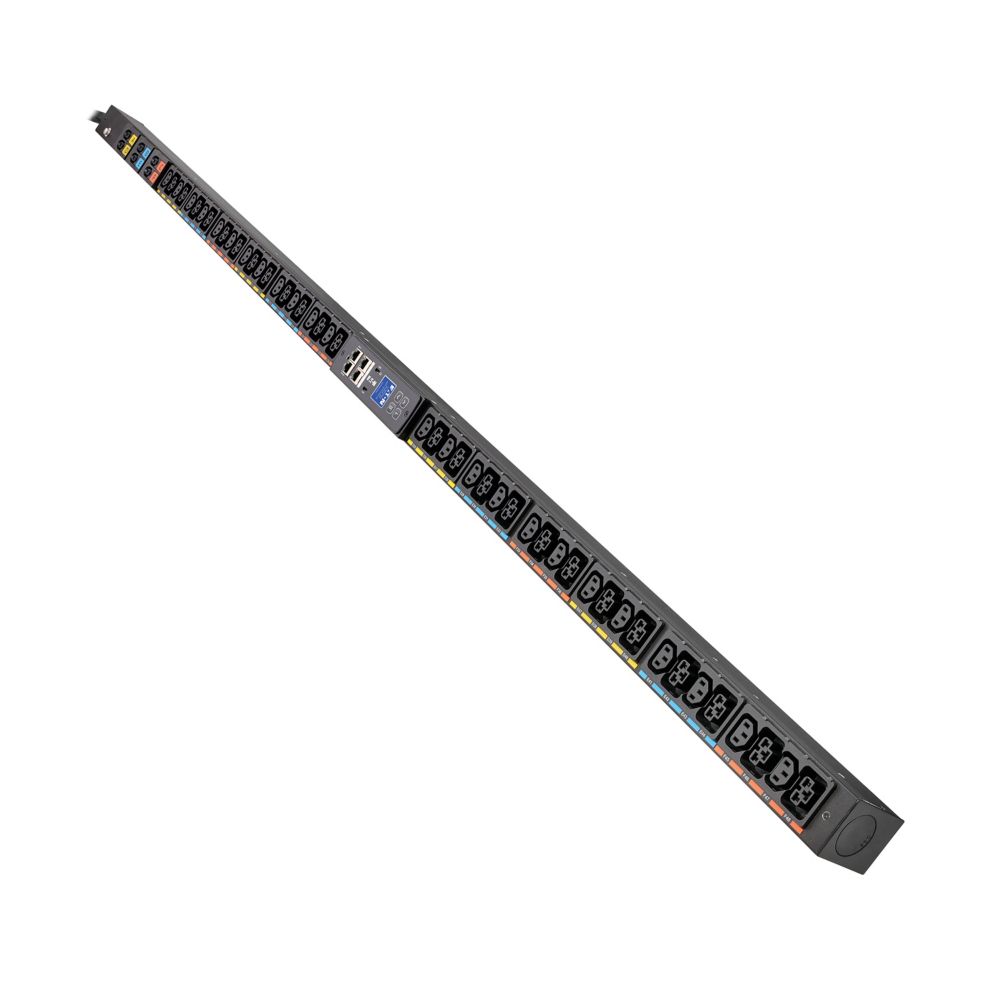

Eaton EVMAG332C – 3-Phase Managed Rack PDU G4, 17.3kW
Eaton EVMAG332C – 3-Phase Managed Rack PDU G4, 17.3kW is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Eaton EVMAG332C – 3-Phase Managed Rack PDU G4, 17.3kW
Product Overview
The Eaton EVMAG332C is a 3-phase managed rack PDU G4 delivering 17.3kW to 48 outlets, designed for high-density data center and server room racks running 230/415V power. This managed PDU pairs a large outlet count with network-based monitoring, making it suited to enterprise racks mixing servers, network switches, and AV processing equipment that need centralized visibility into per-outlet power draw.
Product Description
This managed rack PDU accepts a 230V/415V 3-phase input rated at 24A/32A through a 532P6W plug with a 10-foot cord, and distributes 17.3kW across 48 outlets — 24x IEC 60320 C13 and 24x IEC 60320 C39 — giving flexibility to power both standard IEC-corded devices and higher-draw equipment from a single PDU.
As a managed PDU, the EVMAG332C provides network connectivity via RJ-45 for remote monitoring, with single-pole switching and overload protection built into the design. This makes it a practical option for commercial AV/IT deployments that need to track load balancing across a large bank of mixed outlet types without provisioning multiple smaller PDUs per rack. The vertical, button-mount design installs in the side channel of most open and enclosed racks, preserving front rack unit space for equipment. Facilities and IT managers speccing racks with a mix of C13-corded servers and C39-corded high-draw devices can consolidate power distribution into this single 48-outlet unit, simplifying cable management and reducing the number of PDUs needed per rack elevation.
Key Features
- 48 Outlets: 24x C13 + 24x C39 — Supports both standard and high-draw equipment from a single PDU.
- 17.3kW 3-Phase Capacity — Provides high-density power delivery for enterprise server and AV racks.
- Network (RJ-45) Connectivity — Enables remote monitoring for managed power visibility.
- Single-Pole Switching with Overload Protection — Helps safeguard connected equipment from faults.
- 0U Vertical, Button-Mount Installation — Preserves front rack unit space through side-channel mounting.
- TAA Compliant — Meets Trade Agreements Act requirements for applicable government and institutional procurement.
Technical Specifications
| Phase | 3-phase |
| Input Voltage | 230V AC / 415V AC |
| Input Current | 24A / 32A |
| Power Rating | 17.3kW |
| Input Plug | 532P6W |
| Cord Length | 10 ft |
| Outlets | 24x IEC 60320 C13, 24x IEC 60320 C39 (48 total) |
| Form Factor | 0U, vertical, button-mount rack installation |
| Monitoring/Control | Network (RJ-45) connectivity, single-pole switching, overload protection |
| Compliance | TAA Compliant |
| Dimensions / Weight | Not published by manufacturer for this exact SKU |
