Eaton EVMA4609X – 3-Phase Managed Rack PDU G4, 17.3kW

Product Overview

The Eaton EVMA4609X is a 3-phase managed rack PDU from Eaton's G4 platform, sized for server rooms and data center racks needing 17.3kW of distributed power at 208V. This managed rack PDU pairs a narrow 0U vertical chassis with outlet-level monitoring, making it a solid choice for enterprise IT rooms and colocation racks that need remote visibility without giving up equipment slots. Facilities managers and AV/IT integrators outfitting standard three-phase server racks will find its 42-outlet layout and Gigabit management module well matched to commercial-grade uptime requirements.

Product Description

EVMA4609X sits in Eaton's ePDU G3/G4 managed platform (EVMA = managed rack PDU), built around a narrow two-inch-wide aluminum chassis that mounts vertically in the rack's side channel. It takes a 208V three-phase input rated for 60 max input amps (48A per output phase) through a 460P9W plug on a 10 ft cord, and distributes power to 42 outlets — 24x C13 and 18x C39 — for a combined capacity of 17.3kW, protected by six 20-amp circuit breakers, one per load bank.

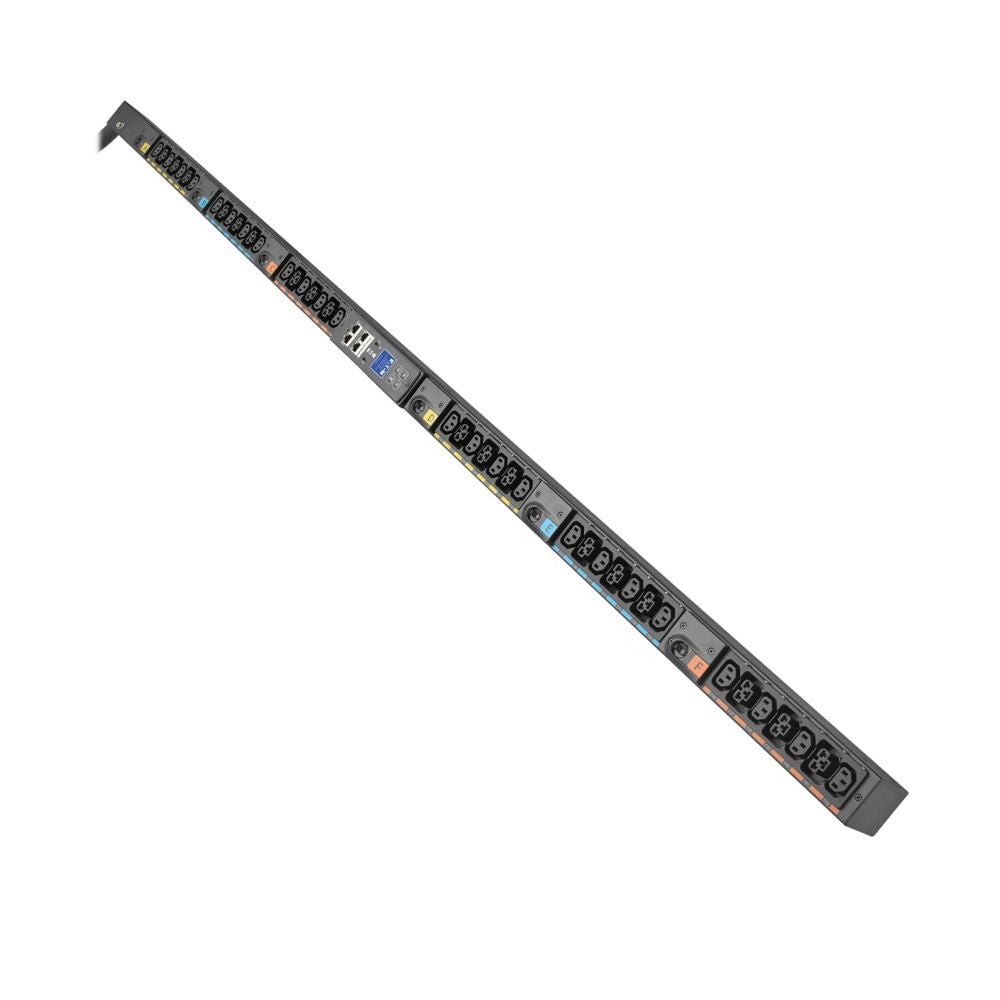

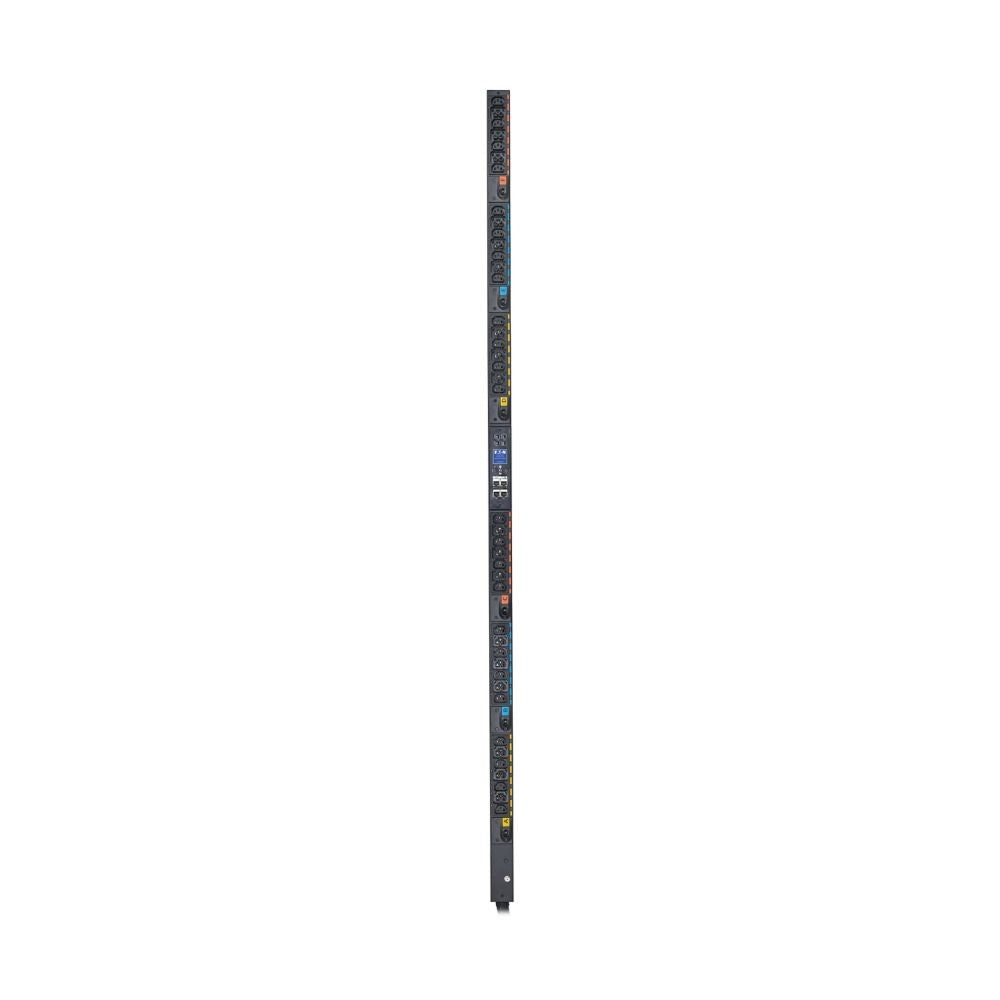

Reference the product photo for the outlet spacing and toolless, shoulder-style mounting buttons that speed up rack installation. The unit includes an LCD display for outlet-level readings directly at the rack, along with an Eaton Gigabit Network Module supporting SNMP monitoring over Ethernet and serial connections. Multiple EVMA4609X units can be cascaded (up to 40 units) on a single network connection, which simplifies management in large rack rows. Eaton also builds in chain-of-trust encryption and zero-trust architecture principles into the G4 network module for facilities with strict IT security requirements. Confirm 460P9W receptacle infrastructure and available three-phase circuit capacity before specifying this PDU for a new rack build.

Key Features

• 17.3kW Three-Phase Capacity — supports a full rack of standard and higher-draw equipment.
• 42 Mixed Outlets — 24x C13 and 18x C39 cover varied server and network device power cords.
• Per-Load-Bank Circuit Breakers — six 20A breakers isolate faults to a single bank.
• Outlet-Level LCD Readings — view current levels directly at the rack without a laptop.
• Gigabit Network Module — SNMP-enabled remote monitoring, cascadable up to 40 units.
• Zero-Trust Security Architecture — chain-of-trust encryption on the management module.

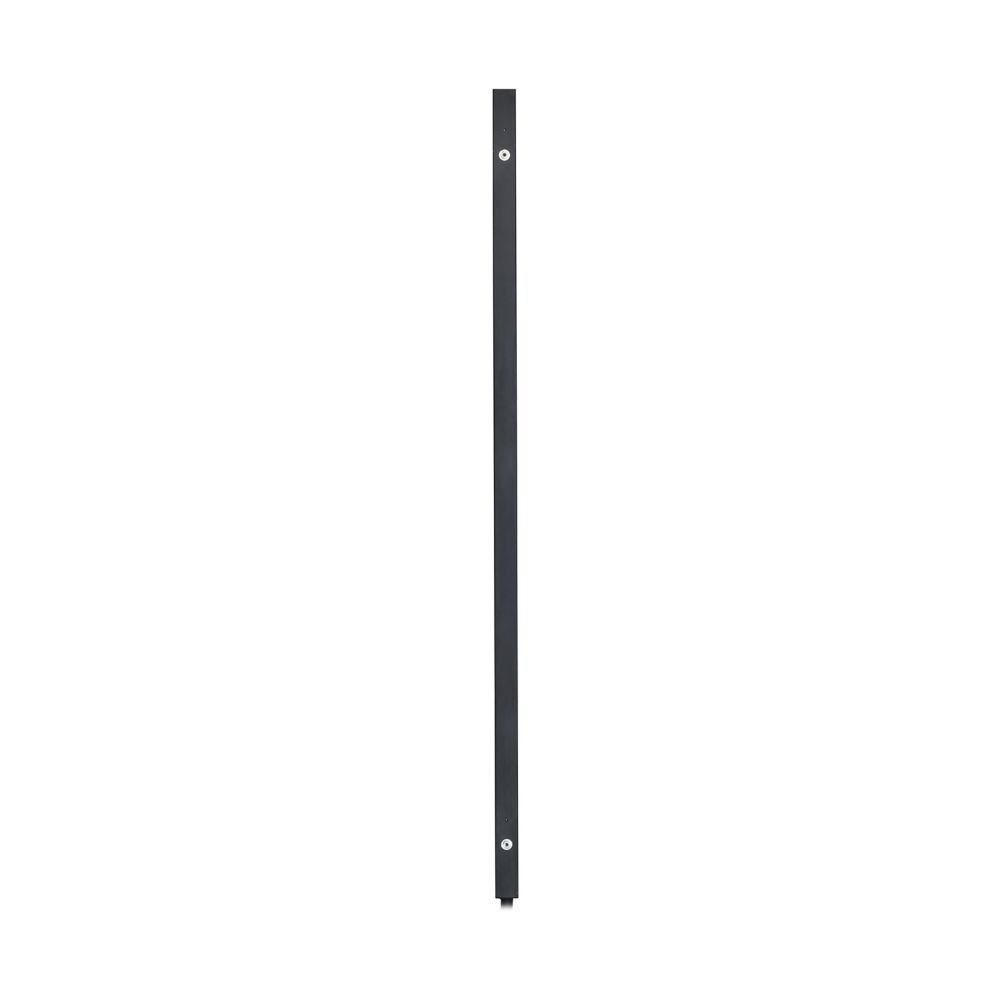

• Toolless Mounting — factory-installed shoulder-style aluminum mounting buttons.
