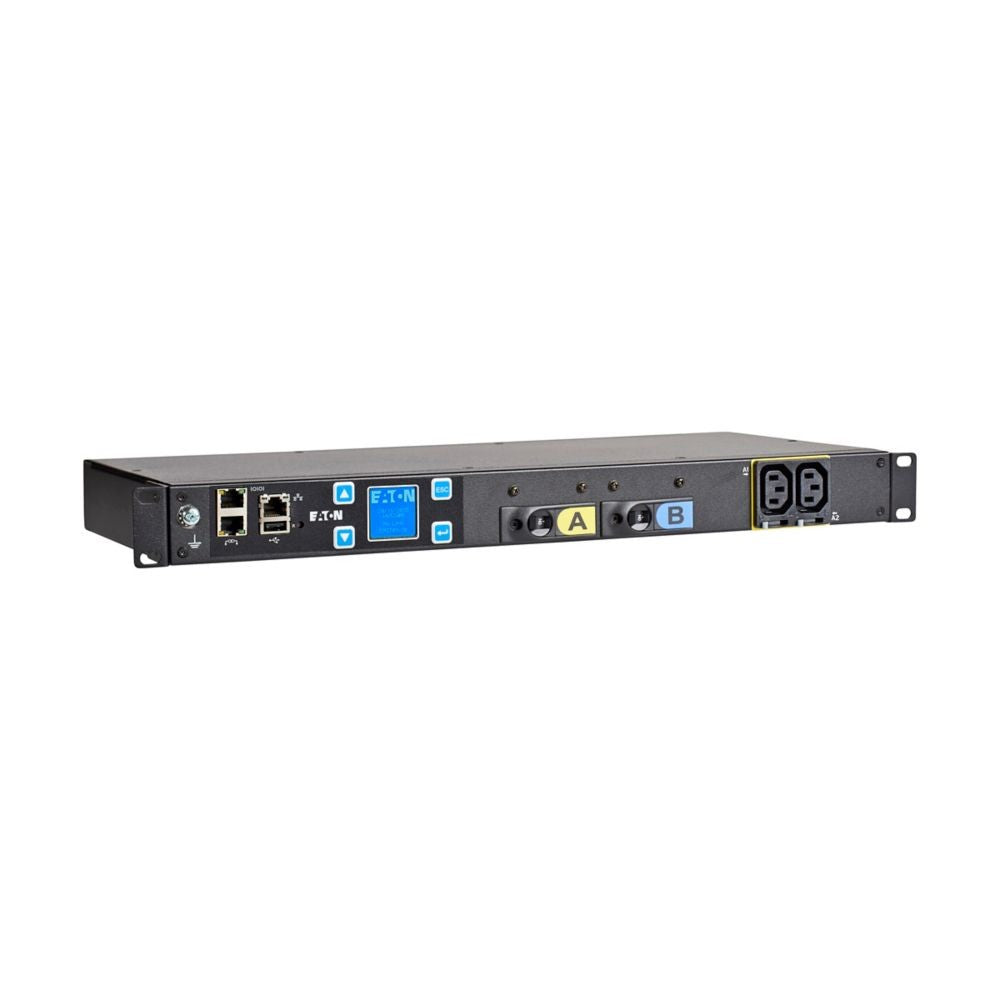

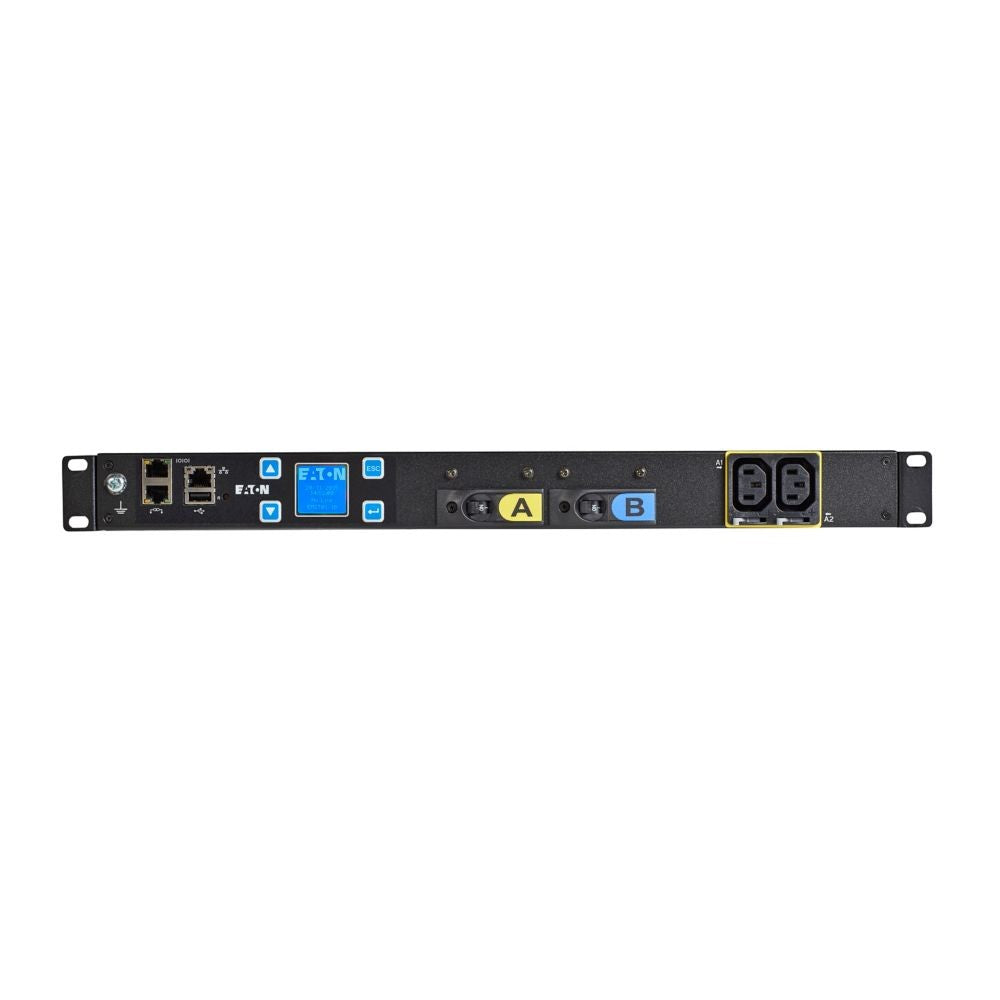

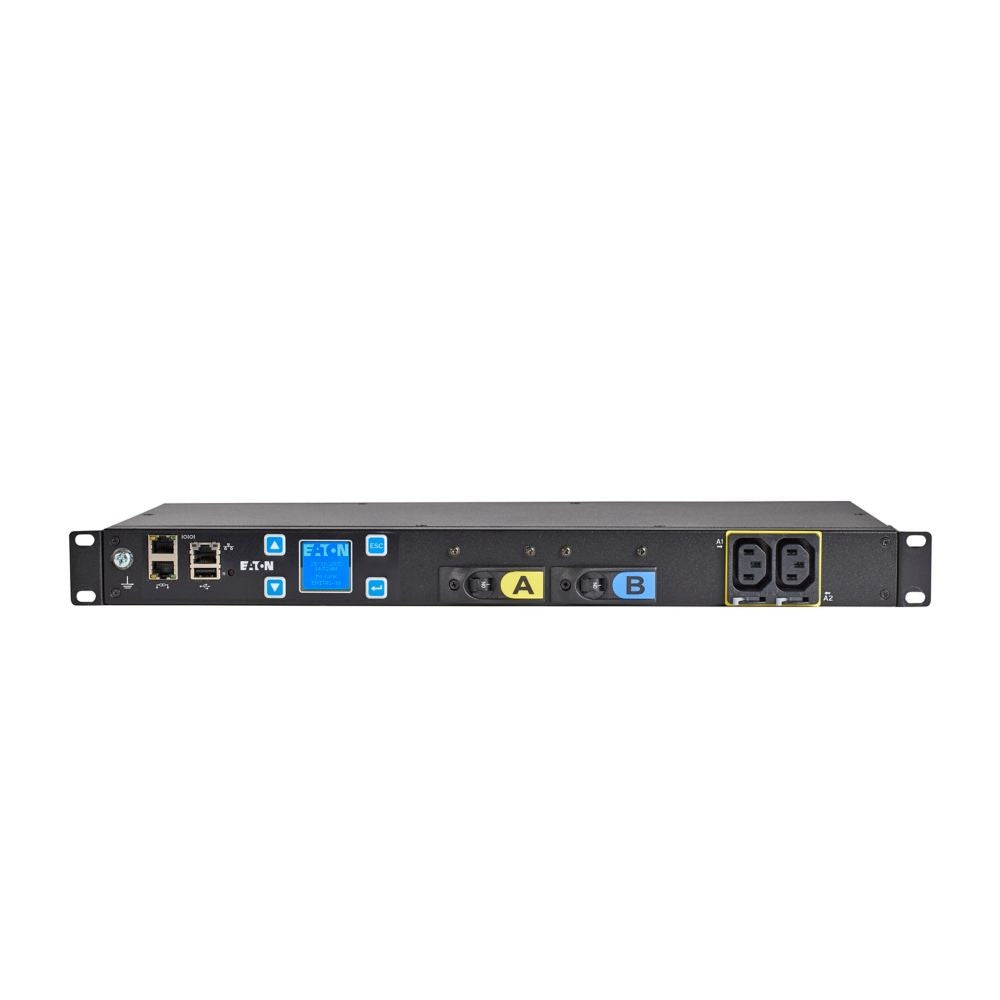

Eaton EMIT04-10 – 208V Metered PDU C13/C19 Outlets

Product Overview

The Eaton EMIT04-10 metered rack PDU is a 208V single-phase metered PDU built for higher-density server rack and colocation cabinet deployments than 120V units can support. Its mixed C13/C19 outlet layout handles both standard servers and higher-draw equipment such as blade chassis and network switches from a single 1U rack PDU. For integrators handling 208V metered PDU installation in a data center, the L6-30P input and 5.76 kW capacity make the EMIT04-10 a natural step up from 120V models.

Product Description

The EMIT04-10 is a 1U, 200-240V, 24A metered input rack PDU with eight C13 and four C19 output receptacles, delivering up to 5.76 kW of distributed power from a single L6-30P input. The mixed outlet configuration is intended for racks running a combination of standard IT equipment on C13 cords and higher-draw devices, such as blade servers or network switches, on C19 cords, which is a common pairing in data center and colocation cabinet deployments. As a metered input PDU, it reports aggregate input current so facilities and IT staff can track circuit loading and avoid overloading upstream breakers, without the added cost of per-outlet switching. Built-in ethernet and RS-232 interfaces support integration with network monitoring platforms, letting the unit report load data alongside other rack-mounted power infrastructure. The 1U horizontal profile keeps rack space available for compute and networking equipment even in fully populated cabinets. Its L6-30P twist-lock input plug provides a secure connection appropriate for higher-current circuits typically found in server rooms and data centers. UL listing and TAA compliance support specification in commercial and government space projects with sourcing requirements. Backed by a 3-year limited warranty, the EMIT04-10 is a solid mid-tier choice for teams standardizing on 208V metered PDU installation across multiple racks.

Key Features

• Mixed C13/C19 Outlet Layout — Eight C13 and four C19 receptacles allow a single PDU to power both standard servers and higher-draw equipment like blade chassis or switches.
• 208V, 24A Input Capacity — The 200-240V input with 24A/5.76kW capacity supports higher-density racks than 120V metered PDUs can accommodate.
• L6-30P Twist-Lock Input — A locking NEMA L6-30P input plug provides a secure connection suited to higher-current data center circuits.
• Ethernet and RS-232 Monitoring — Built-in network and serial interfaces let the unit report input current data to a centralized monitoring platform.
• 1U Rack-Mount Form Factor — The low-profile 1U chassis preserves rack space in fully populated server and colocation cabinets.
• UL Listed and TAA Compliant — UL listing and TAA compliance support procurement in commercial and government space projects with sourcing requirements.
• 3-Year Limited Warranty — Eaton's 3-year limited warranty reduces long-term ownership risk for IT and facilities teams.

Typical Applications

• data center
• colocation cabinet
• server room
• government space

Technical Specifications

Frequently Asked Questions

What equipment can connect to the C19 outlets?

The four C19 receptacles are rated for higher-draw devices such as blade server chassis, network switches, or other equipment with a C20 power cord, while the eight C13 receptacles suit standard servers and appliances.

What input circuit is required for the EMIT04-10?

A dedicated 200-240V single-phase circuit rated at 24A or higher, terminated with a NEMA L6-30R receptacle to match the unit's L6-30P plug.

Can this PDU integrate with an existing network monitoring system?

Yes. The built-in ethernet interface allows the unit to report input current readings to a network monitoring station or management platform.

Is the EMIT04-10 TAA compliant for government procurement?

Yes. Eaton lists the EMIT04-10 as TAA compliant, which is relevant for government space and federal procurement requirements.

Does this PDU support remote outlet switching?

No. The EMIT04-10 is a metered input PDU that reports total input current only; it does not provide per-outlet metering or remote switching.

What is the maximum load this PDU can support?

The unit is rated for 24A at 200-240V, for a maximum output of 5.76 kW. Actual continuous load should be planned according to local electrical code and equipment nameplate ratings.

What warranty applies to the EMIT04-10?

Eaton provides a 3-year limited warranty on this unit. Contact Eaton or Creation Networks for full warranty terms and support.
