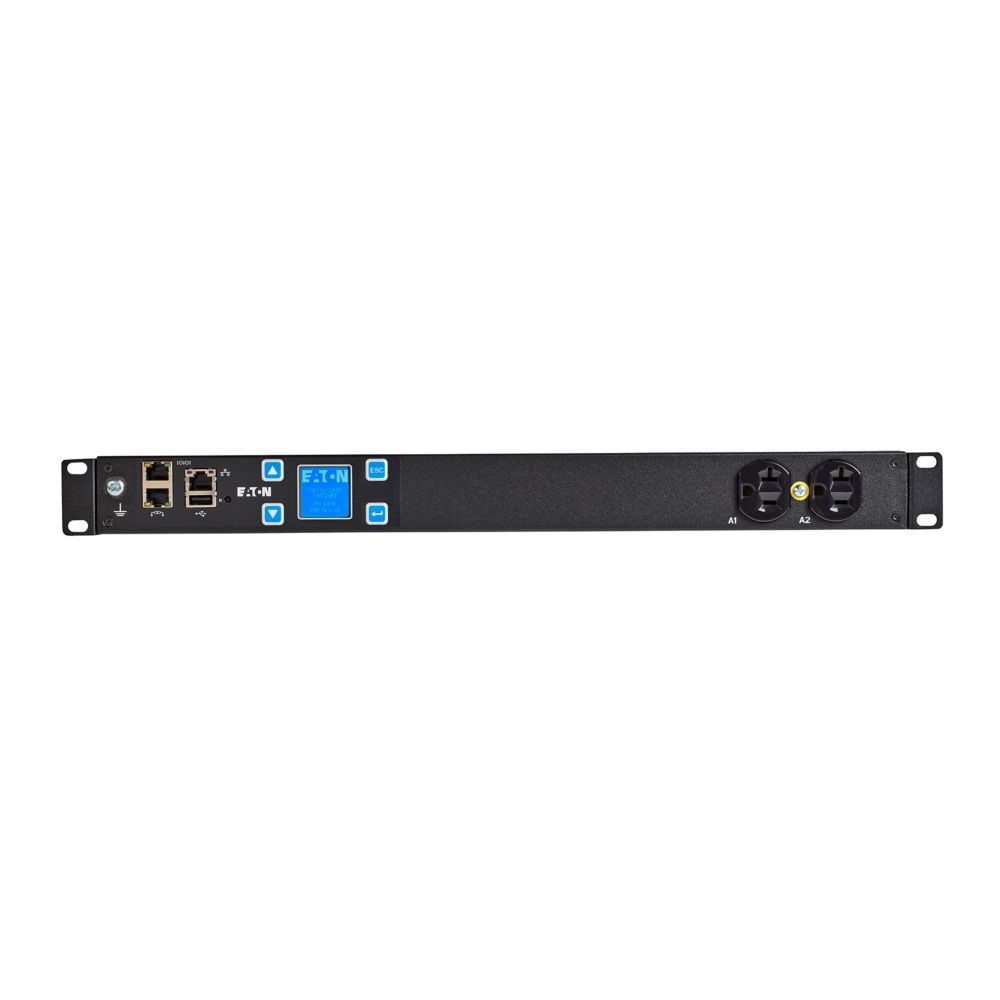

Eaton EMIT02-10 – 120V Metered PDU Twist-Lock Input

Product Overview

The Eaton EMIT02-10 metered rack PDU delivers 120V single-phase input metering with a twist-lock L5-20P connection, making it well suited for rack PDU installation on commercial circuits where a locking cord cap is preferred to prevent accidental disconnection. It is a common choice for data center and network closet deployments needing dependable input current visibility without per-outlet switching. Integrators standardizing on locking power connections across a facility will find this unit a straightforward fit alongside other Eaton EMIT-series metered PDUs.

Product Description

The EMIT02-10 is a 1U, 120V, 16A metered input rack PDU with twelve 5-20R output receptacles and an L5-20P twist-lock input plug, giving it the same 1.92 kW output capacity as the EMIT01-10 but with a more secure input connection. This makes it a practical option for data center and colocation cabinet installations where vibration, foot traffic, or cable management concerns make a locking input cord cap preferable. A built-in ethernet interface and RS-232 serial port allow the unit to report load data to a network management station or BMS, extending visibility beyond the local digital display used on simpler models in the family. This makes the EMIT02-10 a better fit for facilities that want centralized power monitoring integration as part of a broader AV or IT deployment. The 1U horizontal form factor keeps the footprint minimal in dense server room elevations, and the twelve 5-20R outlets accommodate a mix of servers, switches, and rack-mounted AV control equipment. Rated for continuous operation from 0° to 60°C, the unit tolerates higher ambient temperatures sometimes found in poorly cooled network closets or edge deployments. UL listing and a 3-year limited warranty support specification in commercial and government space projects that require documented compliance. For integrators running a mixed fleet of Eaton PDUs, the EMIT02-10 slots in as the 120V metered option alongside higher-voltage EMIT and EMIU models used elsewhere in the same rack row.

Key Features

• Twist-Lock L5-20P Input — The locking input plug reduces the risk of accidental disconnection in high-traffic data center and network closet environments.
• Ethernet and RS-232 Connectivity — Built-in network and serial interfaces allow load data to be reported to a monitoring station, supporting integration into broader IT power management workflows.
• Twelve 5-20R Outlets — Twelve NEMA 5-20R receptacles support a full complement of servers, switches, and AV control devices on a single rack PDU.
• 1U Horizontal Form Factor — A low-profile 1U chassis conserves rack space in dense server room and colocation cabinet elevations.
• Wide Operating Temperature Range — Rated from 0° to 60°C, the unit performs reliably in less tightly controlled network closets and edge IT spaces.
• UL Listed, 3-Year Warranty — UL listing and a 3-year limited warranty support procurement requirements in commercial and government space deployments.

Typical Applications

• data center
• colocation cabinet
• server room
• network closet

Technical Specifications

Frequently Asked Questions

What makes the EMIT02-10 different from the EMIT01-10?

Both units share the same 120V/16A electrical rating and 12-outlet configuration, but the EMIT02-10 uses a twist-lock NEMA L5-20P input plug instead of a straight-blade 5-20P, providing a more secure connection in high-traffic environments.

Does the EMIT02-10 support network monitoring?

Yes. It includes an ethernet port and RS-232 serial interface, allowing input current data to be reported to a network monitoring station or building management system.

Is the L5-20P plug compatible with standard commercial outlets?

It requires a matching NEMA L5-20R twist-lock receptacle on the branch circuit. A licensed electrician should confirm the receptacle type before installation.

Can this PDU be mounted vertically instead of horizontally?

The EMIT02-10 is designed as a 1U horizontal rack PDU; vertical (0U) mounting is not supported on this model.

Does it offer per-outlet switching or metering?

No. The EMIT02-10 meters total input current only and does not provide individual outlet control or per-outlet metering.

What warranty coverage applies to this unit?

Eaton provides a 3-year limited warranty. Contact Eaton or Creation Networks for full terms and support options.

Is this PDU suitable for a colocation cabinet?

Yes. Its compact 1U profile, locking input plug, and UL listing make it a practical choice for colocation cabinet and data center installations.
