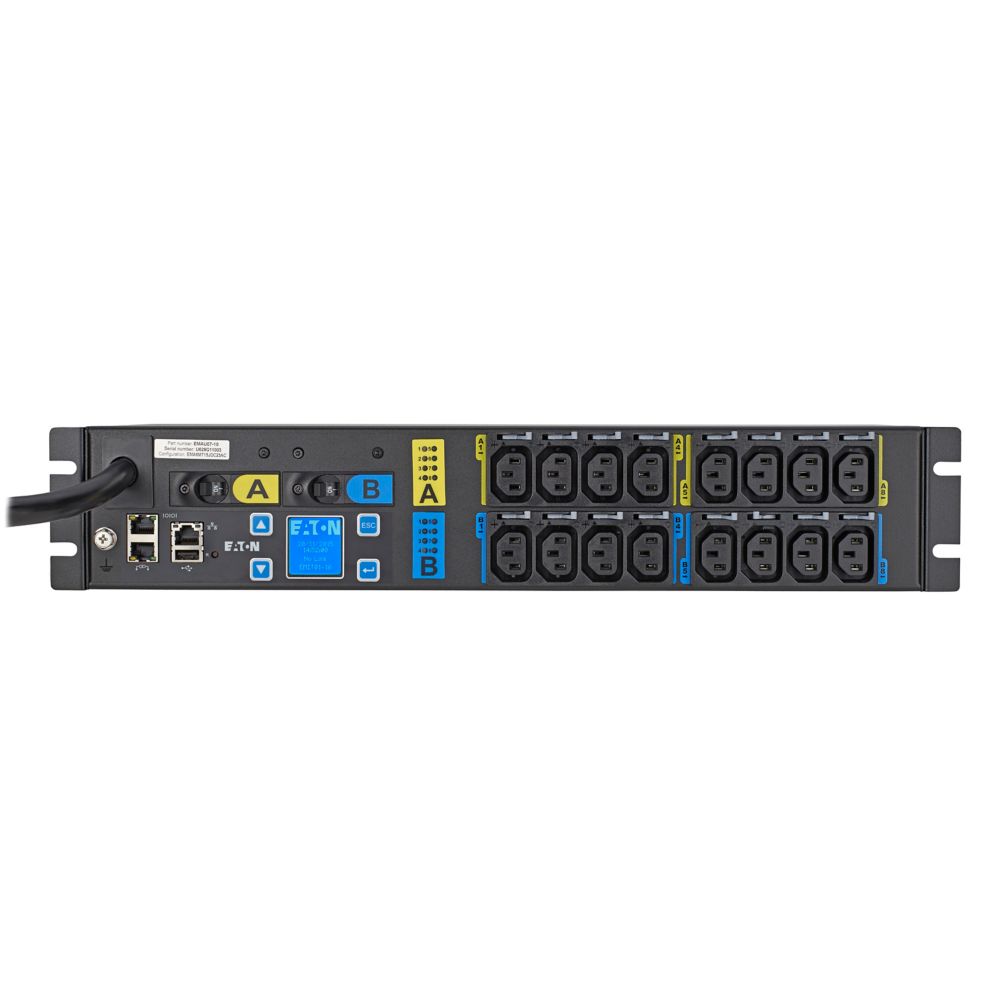

Eaton EMAU07-10 – 2U Managed Rack PDU, 16 C13 Outlets

Product Overview

The Eaton EMAU07-10 is a 2U managed rack PDU built for data centers, server rooms, and network closets running racks of standard IT equipment on IEC C13 power cords. Rated for 200-240V, 24A input and 5.76 kW maximum output across 16 C13 outlets, it is well suited to racks of 1U and 2U servers, switches, and appliances that use standard IEC power connections rather than high-draw C19 devices. As a managed rack PDU for server rack power distribution, it provides remote monitoring and control over a network interface, giving IT staff visibility into load without walking the data center floor. Its single-phase 208-240V input and 2U horizontal footprint make it a straightforward upgrade for facilities modernizing network closet or colocation cabinet power.

Product Description

The EMAU07-10 is part of Eaton's ePDU Managed platform, purpose-built for commercial IT racks where nearly every connected device uses a standard IEC C13 power cord. Input is delivered through a NEMA L6-30P plug rated 200-240V at 24A, feeding all 16 outlets as C13 receptacles rather than a mixed C13/C19 bank, which simplifies cable planning in racks composed primarily of 1U and 2U rack-mount servers, switches, and appliances. The unit occupies 2U of rack space and mounts horizontally, integrating into the same rail system as the servers and network equipment it powers. Remote management is provided over a network interface, supporting outlet-level monitoring and switching so facilities and IT teams can track load, identify circuits approaching capacity, and remotely power-cycle unresponsive equipment. This managed capability reduces the need for a technician to physically visit a server room or network closet for routine power troubleshooting. Because the EMAU07-10 draws from a single-phase 208-240V circuit, it fits into existing commercial electrical infrastructure without requiring a three-phase panel upgrade, which is a common constraint in older buildings and smaller data center rooms. Integrators refreshing a network closet or colocation cabinet from unmanaged power strips typically select the EMAU07-10 when the connected equipment list is dominated by standard C13-corded servers and switches, reserving mixed-outlet PDUs like the EMAU06-10 for racks that also include higher-draw C19 devices. The 3-year limited warranty and UL Listed rating support deployment in regulated commercial and government facilities.

Key Features

• 16 C13 Outlets — Provides a full bank of standard IEC C13 receptacles matched to typical 1U and 2U server and switch power cords.
• 5.76 kW Capacity — Powers a fully populated mid-density rack from a single 24A, 208-240V circuit.
• 2U Horizontal Mounting — Installs in the standard rail system alongside the servers and network equipment it powers.
• Network-Based Monitoring — Provides remote visibility into load and outlet status without requiring a site visit.
• Remote Outlet Switching — Supports remote power cycling of individual devices for faster troubleshooting.
• Single-Phase Input — Compatible with standard 208-240V commercial electrical service, avoiding a three-phase panel upgrade.
• Commercial-Grade Certification — UL Listed and RoHS compliant for use in regulated commercial and government facilities.

Typical Applications

• Data center
• Colocation cabinet
• Server room
• Network closet
• Government space

Technical Specifications

Frequently Asked Questions

Does the EMAU07-10 support C19 outlets for high-draw equipment?

No. All 16 outlets on the EMAU07-10 are standard IEC C13. If your rack includes higher-draw devices that require C19 connections, consider the EMAU06-10's mixed outlet configuration instead.

What electrical circuit does this PDU require?

A single-phase, 200-240V, 24A circuit terminating in a NEMA L6-30P receptacle. Have a licensed electrician verify circuit availability before installation.

Can I remotely power-cycle a single device connected to this PDU?

Yes. The EMAU07-10 supports outlet-level switching, allowing remote power cycling of individual devices without disrupting the rest of the rack.

Is the EMAU07-10 suitable for a network closet retrofit?

Yes. Its single-phase 208-240V input and 2U form factor make it a straightforward upgrade from unmanaged power strips in existing network closets.

Does this PDU integrate with IT monitoring platforms?

Its network monitoring interface is designed to integrate with standard IT and DCIM tools used to track rack power consumption remotely.

What is the warranty on the EMAU07-10?

The EMAU07-10 carries Eaton's 3-year limited warranty. Contact Eaton or Creation Networks to confirm current terms.

How does the EMAU07-10 compare to the EMAU06-10?

Both are 2U, 5.76 kW single-phase managed PDUs; the EMAU07-10 uses an all-C13 outlet bank while the EMAU06-10 mixes C13 and C19 outlets. Contact Creation Networks to confirm which fits your rack's cord types.
