Eaton EMAPFXXTA4A4E2L – 3-Phase HDX Rack PDU G4, 45 Outlets
Product Overview
The Eaton EMAPFXXTA4A4E2L is a 3-phase managed rack PDU from Eaton's HDX Rack PDU G4 platform, built for high-density data center racks that need a large outlet count alongside remote power management and cybersecurity-hardened network features. Rated at 35kW with 45 outlets, this PDU is sized for colocation and enterprise data center racks running dense mixes of servers and network equipment. Buyers researching a high-outlet-count managed rack PDU or a cascadable 3-phase PDU with cybersecurity features will find this model built for those needs.
Product Description

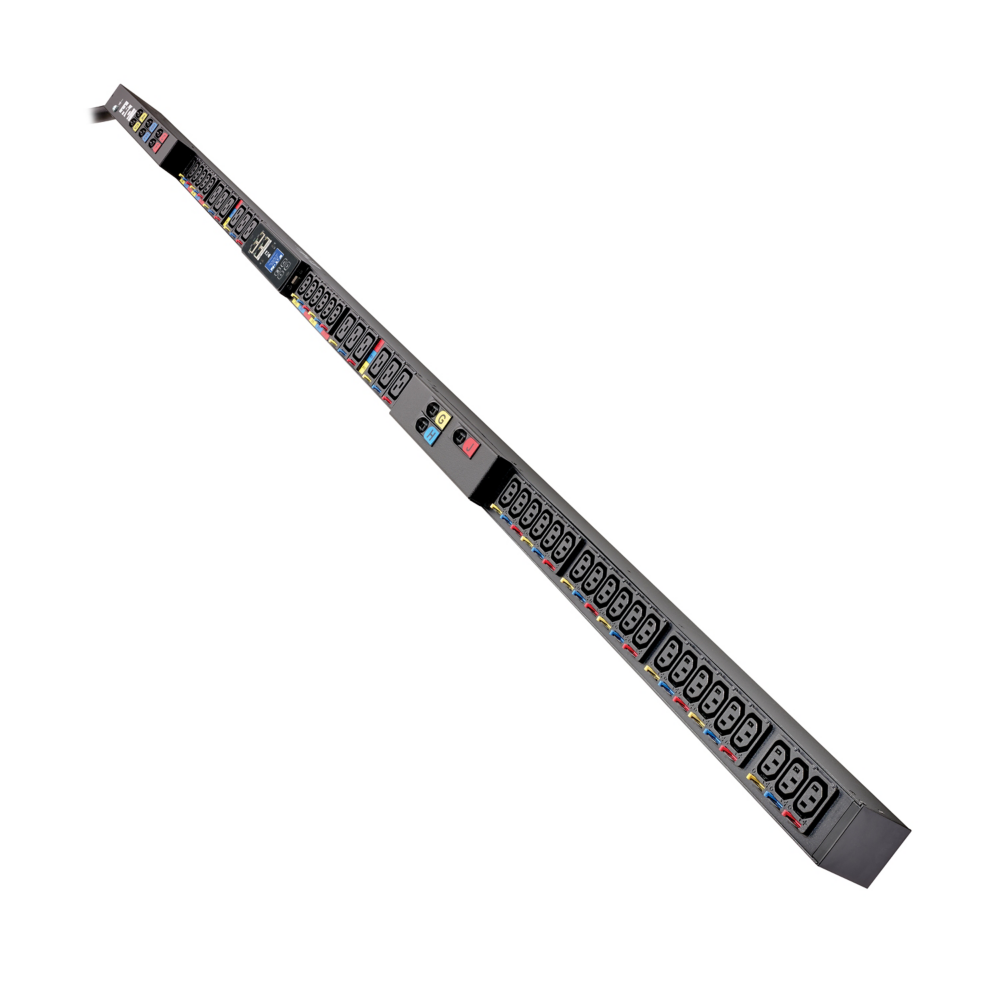

This PDU takes a 240/415V 3-phase input rated at 60A through a 560P6W plug on a 10-foot cord and distributes power across 45 outlets, 33 C13 and 12 C19 receptacles, protected by nine 20A low-profile circuit breakers, delivering 35kW of total output capacity. Check the product photo to review the vertical outlet-bank spacing before finalizing cable management for a fully populated rack.
The PDU's Gigabit Network Module includes cybersecurity features suited to environments with hardened network device requirements, and supports individual outlet control and remote management through Eaton's standard management ecosystem. Facilities can cascade up to 40 PDUs together to simplify network wiring across large multi-rack deployments, reducing the number of individual IP connections needed per row.
An onboard LCD pixel display provides outlet-level current, voltage, and power readings accurate to plus or minus 1 percent, giving on-site technicians local visibility without needing network access. TAA compliance makes this model a fit for federal and government data center procurement in addition to standard enterprise and colocation deployments.
Key Features
- 35kW 3-Phase Capacity — Delivers substantial power output for high-density racks.
- 45 Outlets — 33 C13 and 12 C19 receptacles for a wide mix of connected equipment.
- Gigabit Network Module with Cybersecurity Features — Supports hardened network management for compliance-sensitive environments.
- Cascade Up to 40 PDUs — Simplifies network wiring across large multi-PDU deployments.
- Individual Outlet Control — Remote power-cycling and management at the outlet level.
- ±1% Metering Accuracy — Outlet-level current, voltage, and power readings.
- TAA Compliant — Suitable for federal and government procurement.
Technical Specifications
| Spec | Value |
|---|---|
| Input Voltage | 240/415V, 3-phase |
| Input Current | 60A maximum |
| Input Plug | 560P6W, 10 ft cord |
| Output Capacity | 35kW (34.56 kVA) |
| Outlets | 45 total: 33x C13, 12x C19 |
| Circuit Protection | 9x 20A low-profile circuit breakers |
| Form Factor | 0U vertical mounting |
| Dimensions | 84 in H x 2.05 in W x 2.2 in D |
| Weight | 36.21 lb (16.42 kg) |
| Management | Gigabit Network Module with cybersecurity features, individual outlet control, remote management, cascade up to 40 PDUs |
| Metering Accuracy | ±1% for current, voltage, and power |
| Compliance | TAA compliant |
