Eaton EMAPFXXTA4A2A2L – 3-Phase HDX Rack PDU G4, 42 Outlets

Product Overview

The Eaton EMAPFXXTA4A2A2L is a 3-phase managed rack PDU from Eaton's HDX Rack PDU G4 platform, designed for high-density data center and server room racks that need both large outlet counts and remote power management. Rated at 35kW with 42 outlets, this managed PDU is built for colocation providers and enterprise data centers running large numbers of servers, switches, and storage devices per rack. Buyers evaluating a high-outlet-count 3-phase PDU or a cascadable managed rack PDU for balanced load distribution will find this model designed for those requirements.

Product Description

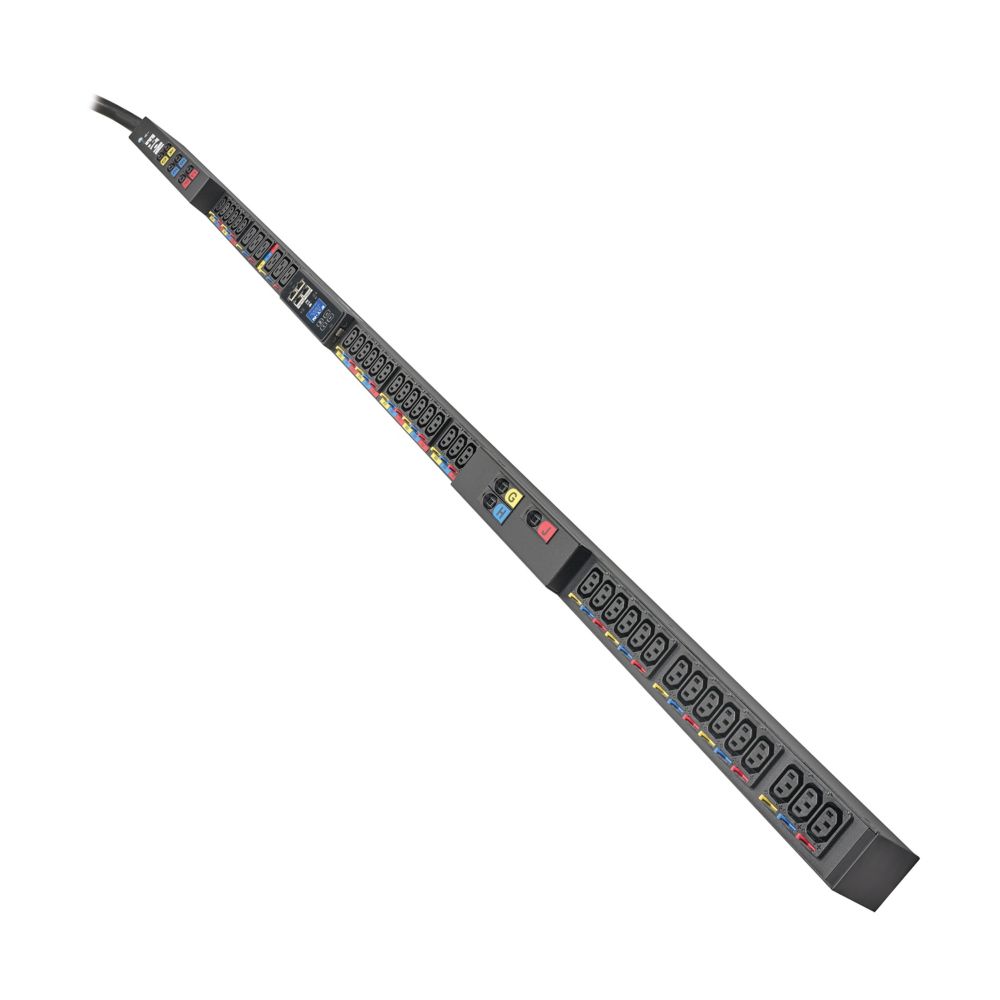

This PDU accepts a 240/415V 3-phase input (with 220/380V and 230/400V configuration support) rated at 60A through a 560P6W plug on a 10-foot cord, distributing power to 42 outlets, 36 C13 and 6 C19 receptacles, arranged in alternating phases to help balance load across the 3-phase circuit. Use the product photo to review the outlet-bank layout and alternating-phase arrangement before mapping cable connections.

Nine 2-pole 20A low-profile circuit breakers protect the load banks, and the PDU's hot-swappable Gigabit Network Module supports remote monitoring through SNMP and MQTT into Eaton's Brightlayer data center software, backed by an onboard LCD pixel display for outlet-level readings accurate to plus or minus 1 percent. A notable feature of this model is cascade support for up to 40 PDU units, letting facilities daisy-chain multiple PDUs under a shared network connection to simplify large-scale deployments.

Optional environmental probes for temperature and humidity extend monitoring to the rack level. The aluminum 0U vertical chassis, at 84 inches tall and roughly 36 lb, is built for high-density racks where maximizing outlet count per PDU reduces the total number of units needed per row.

Key Features

• 35kW 3-Phase Capacity — Supports large, high-density racks on a single PDU.
• 42 Outlets, Alternating Phase — 36 C13 and 6 C19 receptacles arranged to help balance load across phases.
• Cascade Support for Up to 40 PDUs — Simplifies networking across large multi-PDU deployments.
• Hot-Swappable Gigabit Network Module — Enables SNMP/MQTT remote monitoring without powering down the PDU.
• ±1% Metering Accuracy — Outlet-level current, voltage, and power readings.
• Optional Environmental Probes — Adds temperature and humidity monitoring at the rack.
• Aluminum 0U Vertical Construction — High outlet density in a lightweight, space-efficient chassis.
