Eaton EMAPFXXTA2A2E4L – 3-Phase Managed HDX Rack PDU
Eaton EMAPFXXTA2A2E4L – 3-Phase Managed HDX Rack PDU is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Eaton EMAPFXXTA2A2E4L – 3-Phase Managed HDX Rack PDU
Product Overview
The Eaton EMAPFXXTA2A2E4L is a 3-phase managed HDX rack PDU designed for high-outlet-count server racks in data center and colocation environments. Delivering 35kW of capacity across 48 outlets, this managed rack PDU is built for facilities that need to power a large mix of servers and network gear from a single vertical strip. AV/IT integrators and facilities managers planning dense equipment racks will find its 240/415V three-phase input and outlet-level monitoring suited to commercial-grade, high-availability deployments.
Product Description
EMAPFXXTA2A2E4L belongs to Eaton's EMA managed rack PDU family within the HDX high-density platform, aimed at racks that mix standard and higher-draw equipment. It runs on a 240/415V three-phase input rated at 48A via a 560P6W plug with a 10 ft cord, and distributes power across 48 outlets configured as 42x C13 and 6x C19, giving it flexibility for both compact servers and larger power supplies that require C19-style connectors.

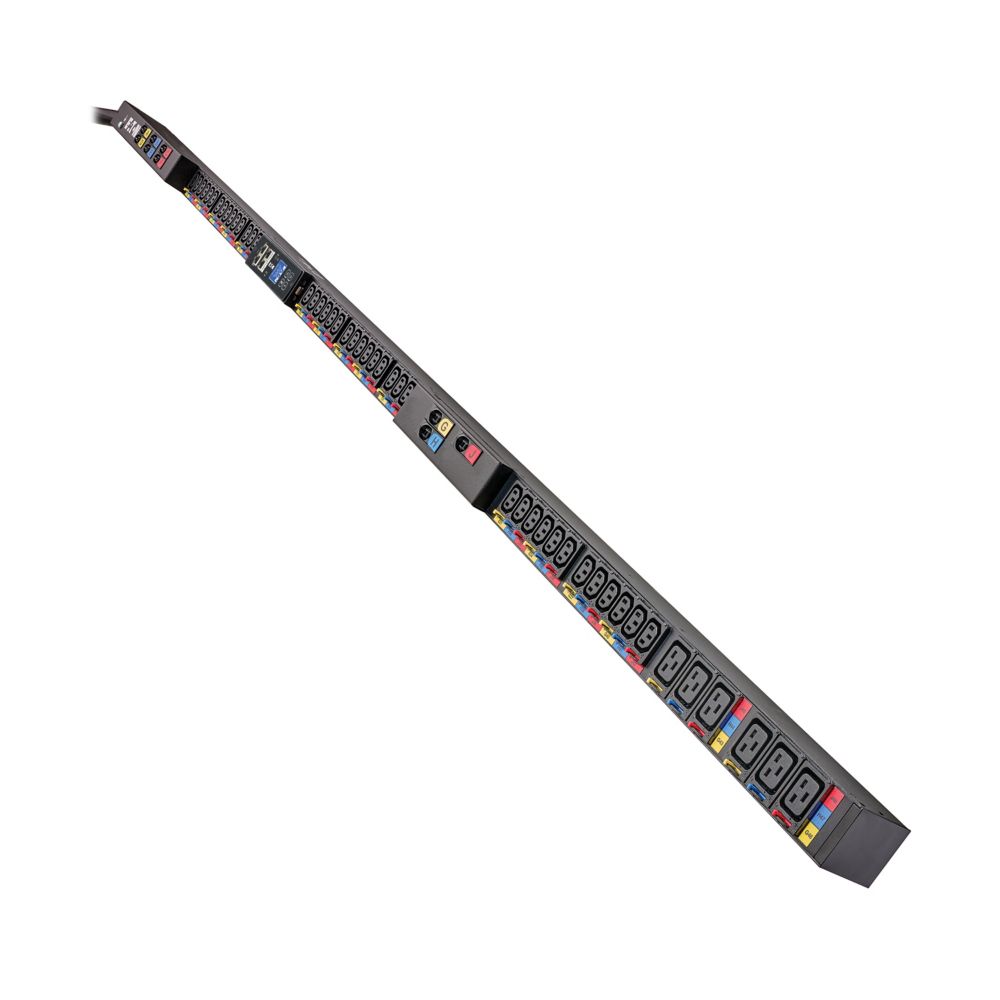

Check the product photo for the outlet arrangement and vertical chassis profile, which runs 84 inches to cover full-height racks. As a managed PDU, it supports outlet-level control and remote monitoring, letting IT staff track load per outlet and remotely power-cycle unresponsive equipment. This reduces the need for site visits when a server or switch needs a hard reset, and it helps facilities teams keep an eye on phase balancing across a three-phase circuit.
Confirm 560P6W receptacle availability and three-phase panel capacity at the intended installation site before ordering, given the 48A rated input.
Key Features
- 48 Total Outlets — 42x C13 and 6x C19 cover a broad mix of rack equipment.
- 35kW Three-Phase Capacity — Supports dense, mixed-load equipment racks.
- Outlet-Level Monitoring and Control — Track and remotely cycle power per device.
- 0U Vertical Form Factor — Mounts along the rack rail without consuming U space.
- UL and cUL Listed — Meets recognized North American safety standards.
- TAA Compliant — Eligible for federal and government procurement.
Technical Specifications
| Spec | Value |
|---|---|
| Input Voltage | 240/415V, three-phase |
| Input Current | 48A |
| Input Plug | 560P6W |
| Cord Length | 10 ft |
| Output Capacity | 35kW |
| Outlets | 48 total: 42x C13, 6x C19 |
| Form Factor | 0U, vertical rack-mount |
| Dimensions (H x W x D) | 84 in x 2.05 in x 2.2 in |
| Weight | 34.17 lb |
| Certifications | UL Listed, cUL Listed; TAA Compliant |
