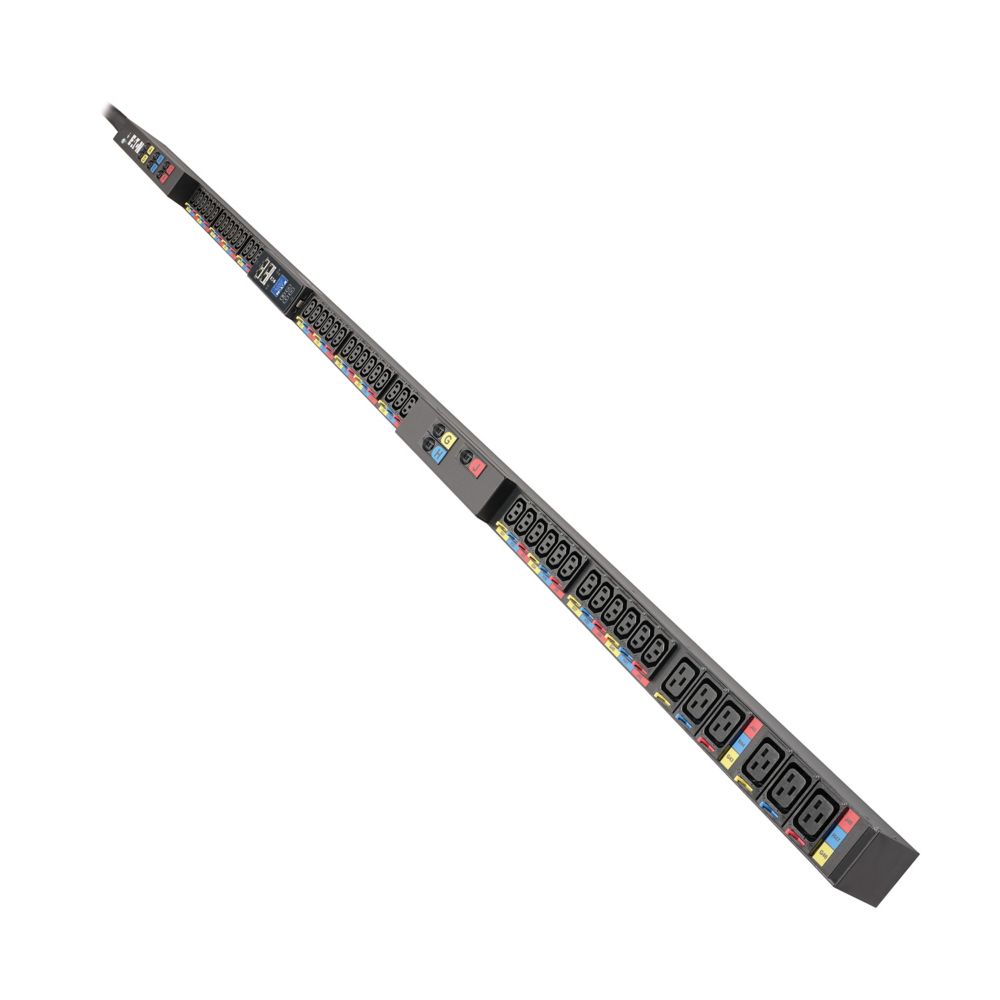

Eaton EMAPFXXTA2A2A2L – Managed PDU, 45 Outlets, 35kW

Product Overview

The Eaton EMAPFXXTA2A2A2L is a high-capacity 3-phase managed rack PDU designed for data centers running dense equipment racks that need substantial power headroom. Rated for 240/415V 3-phase input and 35kW of output capacity across 45 outlets, this managed PDU suits enterprise server rooms, colocation facilities, and high-density compute environments where a single unit must support a large number of connected devices. IT and facilities teams use this PDU to manage outlet-level power remotely without dedicating multiple smaller units to the same rack.

Product Description

The EMAPFXXTA2A2A2L accepts 240/415V 3-phase input at 48A through a 560P6W plug, with a 10 ft. power cord for routing flexibility in the cabinet. Output is delivered across 45 IEC 60320 C13 outlets, making it well suited to racks filled primarily with standard servers, network switches, and other C13-compatible IT equipment rather than higher-draw C39 devices. At 35kW of rated capacity, this is one of the higher-capacity managed PDUs in Eaton's rack lineup, appropriate for consolidated high-density deployments where reducing the number of PDUs per rack simplifies cabling and power monitoring.

As a managed PDU, the EMAPFXXTA2A2A2L includes outlet-level control and remote management through a hot-swappable Gigabit Network Module, allowing facilities staff to monitor load and remotely power-cycle individual outlets from a central dashboard. The unit carries UL and cUL listings and is TAA compliant, making it suitable for government and regulated enterprise procurement in addition to standard commercial data center deployments. Its 0U vertical form factor mounts along the rear rack rail, keeping front-facing rack space available for servers and patch panels.

Key Features

• 45 C13 Outlets — Provides a high outlet count that supports dense racks of standard IT equipment.
• 35kW Capacity — Ranks among the higher-rated managed PDUs for consolidated high-density racks.
• 3-Phase 48A Input — Delivers strong aggregate power for demanding equipment loads.
• Outlet-Level Control — Enables remote monitoring and switching per outlet via network connection.
• Hot-Swappable Network Module — Simplifies network card servicing without full unit downtime.
• UL/cUL Listed, TAA Compliant — Meets standard safety certifications and government procurement requirements.

Technical Specifications
