Eaton EMAGMFC4C4C4C4L – 3-Phase Managed HDX PDU, 29kW

Product Overview

The Eaton EMAGMFC4C4C4C4L is a high-capacity 3-phase managed rack PDU from Eaton's HDX platform, purpose-built for GPU, HPC, and generative AI compute racks that draw far more power than standard server deployments. Rated at 29kW with an 80A 3-phase input, this managed PDU is designed for data centers consolidating high-density compute clusters onto fewer, higher-capacity PDUs. Facilities running AI training clusters or dense GPU server racks use this PDU family when outlet count matters less than raw power delivery per unit.

Product Description

The EMAGMFC4C4C4C4L accepts 208V 3-phase input at 80A through a 4100P9W plug, delivering up to 29kW of output through 24 IEC 60320 C39 outlets. Unlike mixed C13/C39 PDUs designed for general server racks, this all-C39 outlet configuration targets equipment such as GPU servers, high-density storage arrays, and networking gear that use higher-current C20-style power inlets rather than standard C13 connectors. The 0U vertical chassis stands roughly 69.45 inches tall with a slim 4.09-inch width, mounting along the rear rack rail to keep front rack space available for compute hardware.

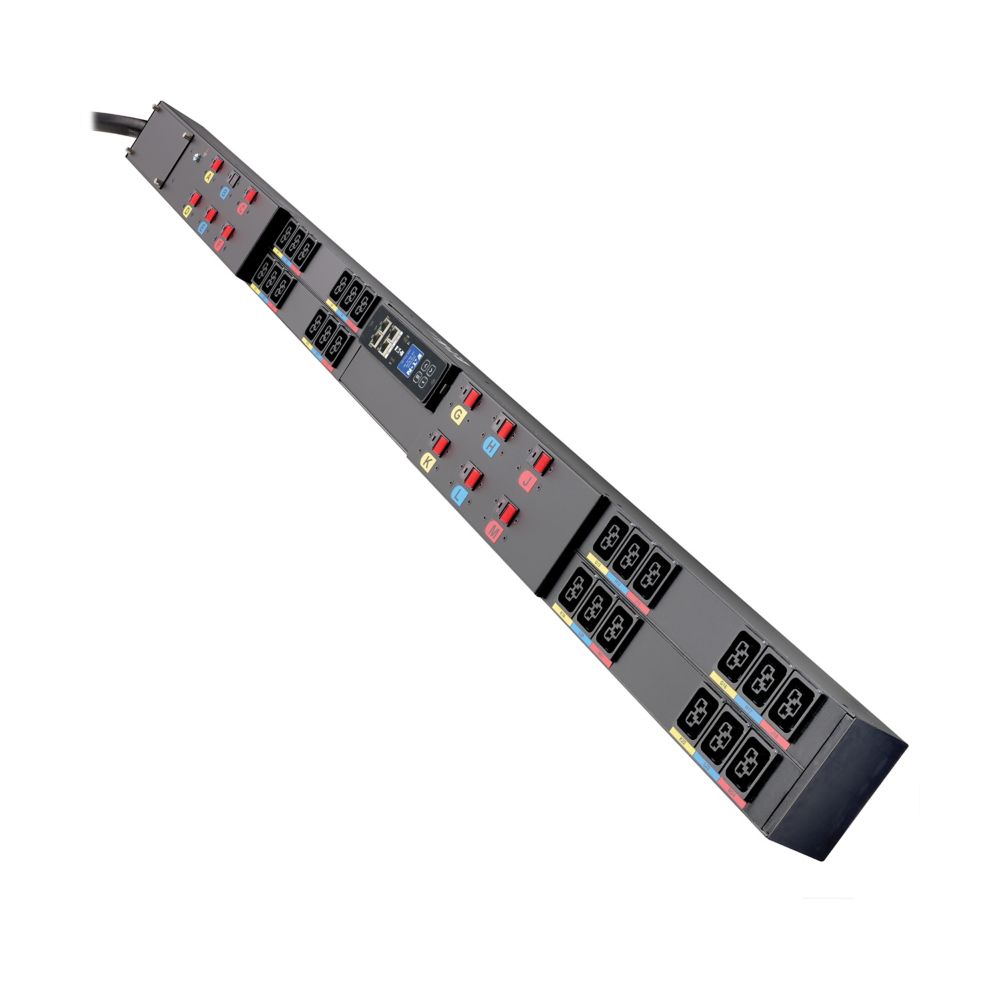

As a managed PDU, the EMAGMFC4C4C4C4L provides outlet-level control and remote management through a hot-swappable Gigabit Network Module, letting data center operations teams monitor load and remotely power-cycle equipment without physical access to the rack. Reference the product photo for the unit's vertical mounting profile. Rated for operation between 32°F and 140°F (0°C to 60°C), a wider range than many standard rack PDUs, this unit is built to handle the elevated ambient temperatures often found in high-density GPU and AI compute environments. The 6 ft. cord, UL/cUL listings, and TAA compliance round out a PDU intended for demanding, high-throughput data center deployments.

Key Features

• 29kW Capacity — Built for GPU, HPC, and generative AI compute racks with high aggregate power draw.
• 80A 3-Phase Input — Delivers substantial power headroom for dense compute clusters.
• 24 C39 Outlets — All-C39 configuration suited to high-current GPU servers and networking gear.
• Outlet-Level Control — Remote monitoring and switching via network connection.
• Hot-Swappable Network Module — Simplifies network card servicing without full unit downtime.
• Extended Operating Range — Rated to 140°F (60°C) for elevated ambient data center conditions.
• UL/cUL Listed, TAA Compliant — Meets standard safety and government procurement requirements.

Technical Specifications
