Eaton EMAGMFC2C2C2C2L – 3-Phase Managed HDX Rack PDU, 48 C13
Product Overview
The Eaton EMAGMFC2C2C2C2L is a 3-phase managed HDX rack PDU offering 48 C13 outlets and 29kW of capacity, suited to racks packed with standard 1U/2U servers and network equipment. This managed rack PDU is a practical option for data centers and server rooms that need a high outlet count on a single vertical strip along with outlet-level monitoring. IT managers and AV/IT integrators building out dense equipment racks will find the 208V three-phase input and remote outlet control well suited to commercial-grade, high-uptime environments.
Product Description
EMAGMFC2C2C2C2L belongs to Eaton's EMA managed rack PDU family within the HDX high-density platform, configured specifically for all-C13 outlet racks — a common setup where every connected device uses standard IEC C13/C14 power cords. It accepts a 208V three-phase input rated at 80A through a 4100P9W plug with a 6 ft cord, and distributes power across 48 C13 outlets for a total output capacity of 29kW.

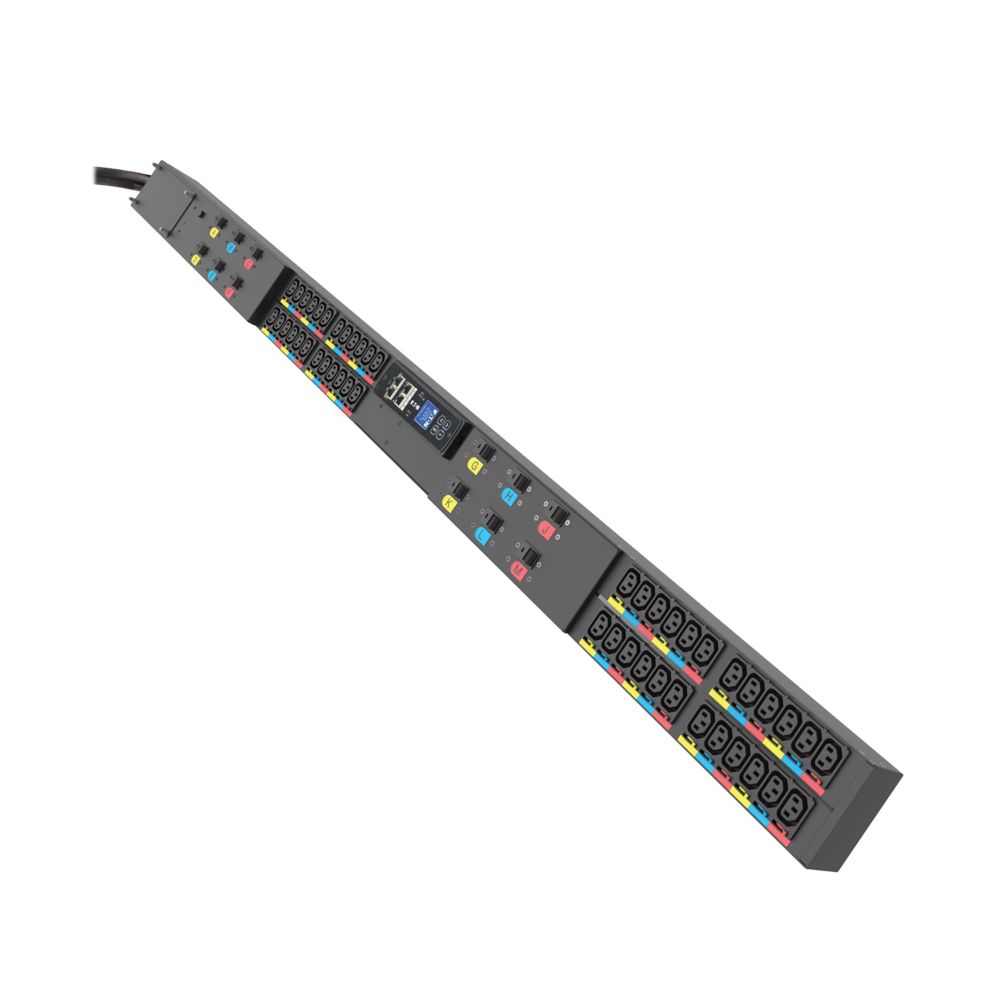

Reference the product photo to see the outlet spacing along the roughly 69-inch vertical chassis, a helpful check when planning rack clearance. As a managed PDU, outlet control is enabled, meaning facilities and IT staff can remotely monitor per-outlet load and power-cycle individual devices without a physical visit to the rack — useful for restarting a hung server or switch outside business hours. Before specifying this unit, confirm 4100P9W receptacle availability and three-phase panel capacity at the installation site, since the 80A rated input is substantial and typically requires dedicated electrical planning.
Key Features
- 48 C13 Outlets — high-density outlet count for racks of standard rack-mount equipment.
- 29kW Three-Phase Capacity — supports substantial combined rack loads.
- Outlet-Level Control — remotely monitor and cycle power per device.
- 0U Vertical Form Factor — mounts in the rack side channel, preserving usable U space.
- Compact 6 ft Input Cord — suited to racks positioned close to the power source.
- Wide Operating Temperature Range — rated for standard data center environmental conditions.
Technical Specifications
| Spec | Value |
|---|---|
| Input Voltage | 208V, three-phase |
| Input Current | 80A |
| Input Plug | 4100P9W |
| Cord Length | 6 ft |
| Output Capacity | 29kW |
| Outlets | 48x C13 |
| Form Factor | 0U, vertical rack-mount |
| Dimensions (H x W x D) | 69.45 in x 4.09 in x 2.48 in |
| Weight | 28.02 lb |
| Frequency | 50/60 Hz |
| Operating Temperature | 0-60°C (32-140°F) |
