Eaton EMAGMFA5A2A5A2L – 3-Phase Managed HDX Rack PDU, Mixed Banks
Product Overview
The Eaton EMAGMFA5A2A5A2L is a 3-phase managed HDX rack PDU designed for commercial data center and server room racks that need two different outlet bank types on the same unit. The alternating "A5A2A5A2" pattern indicates mixed bank sizing — likely different amperage or receptacle groupings repeated twice — a configuration used when a rack mixes higher-draw and standard-draw equipment on the same PDU.
Product Description

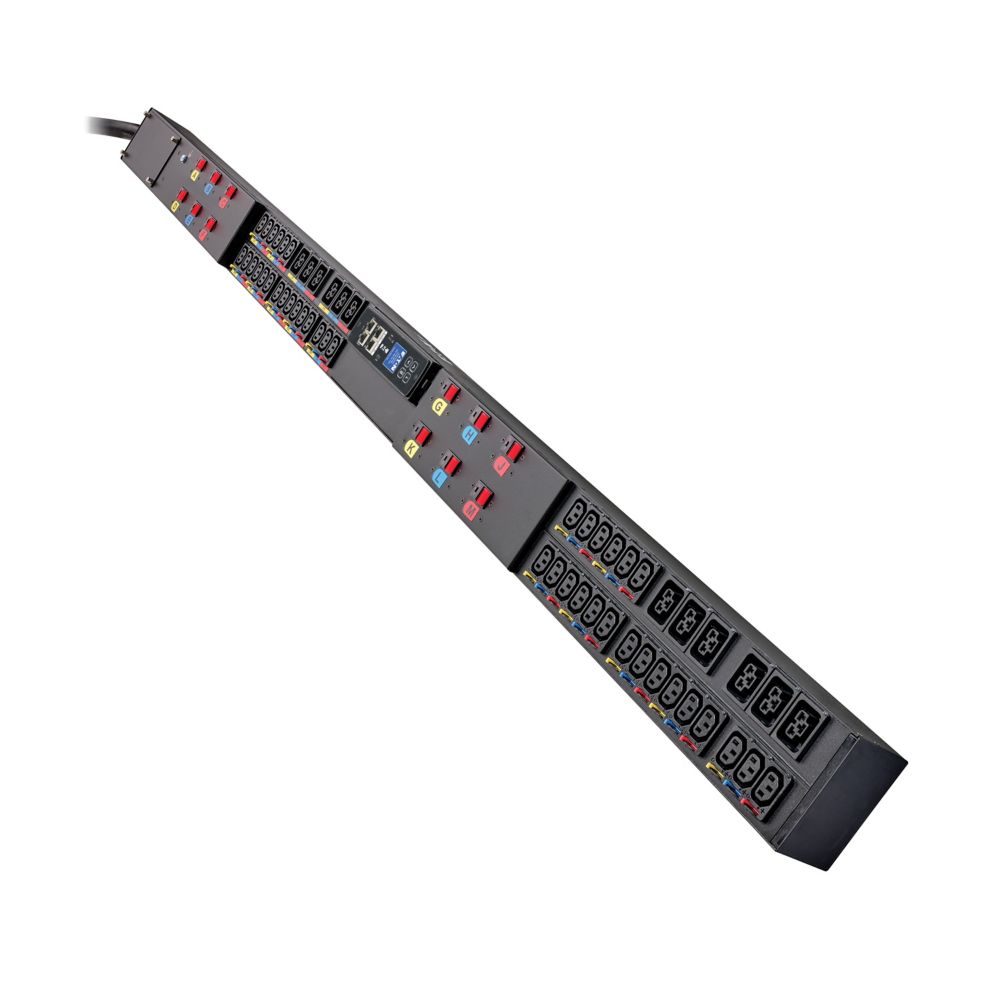

This managed HDX rack PDU is part of Eaton's G4 platform, built for facilities running 3-phase power to racks with varied equipment loads. The mixed A5/A2 bank pattern suggests this unit may split its outlets into two differently rated groups, letting an integrator dedicate one bank to higher-current AV or compute equipment and another to standard servers or network gear on the same PDU. Reference the product photo for the specific outlet layout and chassis orientation.
Managed HDX units generally include individually breakered banks, local LCD or LED status indication, and remote network monitoring for outlet-level power data — features that help IT and facilities teams manage mixed-load racks without needing separate PDUs for each equipment type. This can simplify rack design in commercial AV/IT installations where device power requirements vary significantly within a single cabinet.
Public documentation for the exact EMAGMFA5A2A5A2L configurator code is limited. Confirm input voltage, amperage, exact outlet/receptacle types, and physical dimensions with Eaton or an authorized Eaton distributor before specifying this unit for a particular rack's power design.
Key Features
- Managed HDX Rack PDU Platform — Part of Eaton's G4 managed PDU family built for data center and server room racks.
- Mixed Outlet Bank Configuration — Alternating bank pattern (A5A2A5A2) suggests two differently rated outlet groups on one PDU.
- 3-Phase Power Distribution — Suited to facilities distributing 3-phase power to racks with varied equipment loads.
- Individually Breakered Banks — Expected on this platform to help isolate faults per bank (confirm with Eaton).
- Remote Monitoring Capability — Managed HDX units typically support network-based power monitoring and DCIM integration.
- Rack-Mount Form Factor — Vertical 0U-style chassis typical of the EMAG configurator series.
Technical Specifications
| Product Family | Eaton Managed HDX Rack PDU, G4 platform (EMAG configurator series) |
|---|---|
| Phase | 3-phase (indicated by model naming convention) |
| Outlet Configuration | Alternating outlet banks ("A5" and "A2" bank types, x2 each) — exact receptacle type not published by manufacturer |
| Input Voltage | Not published by manufacturer for this exact SKU |
| Input Current / Power Rating | Not published by manufacturer for this exact SKU |
| Form Factor | Rack-mount PDU, consult Eaton datasheet for exact configuration |
| Monitoring | Managed (outlet/bank-level metering expected on EMAG series; exact feature set not confirmed for this SKU) |
| Certifications | Not published by manufacturer for this exact SKU |
