Eaton EMAGLFC2C2C2C2L – 3-Phase Rack PDU G4, 48 C13

Product Overview

The Eaton EMAGLFC2C2C2C2L is a 3-phase managed rack PDU from Eaton's Rack PDU G4 platform, built for server rooms and data center racks running large numbers of low-to-moderate draw devices that use standard C13 power cords. With 48 dedicated C13 outlets and 17.3kW of output capacity, this PDU is well suited to racks packed with servers, switches, and network appliances that all terminate in C13 connectors. IT teams looking for a high-outlet-count C13 rack PDU with remote outlet control and Gigabit Network Module monitoring will find this model matched to that use case.

Product Description

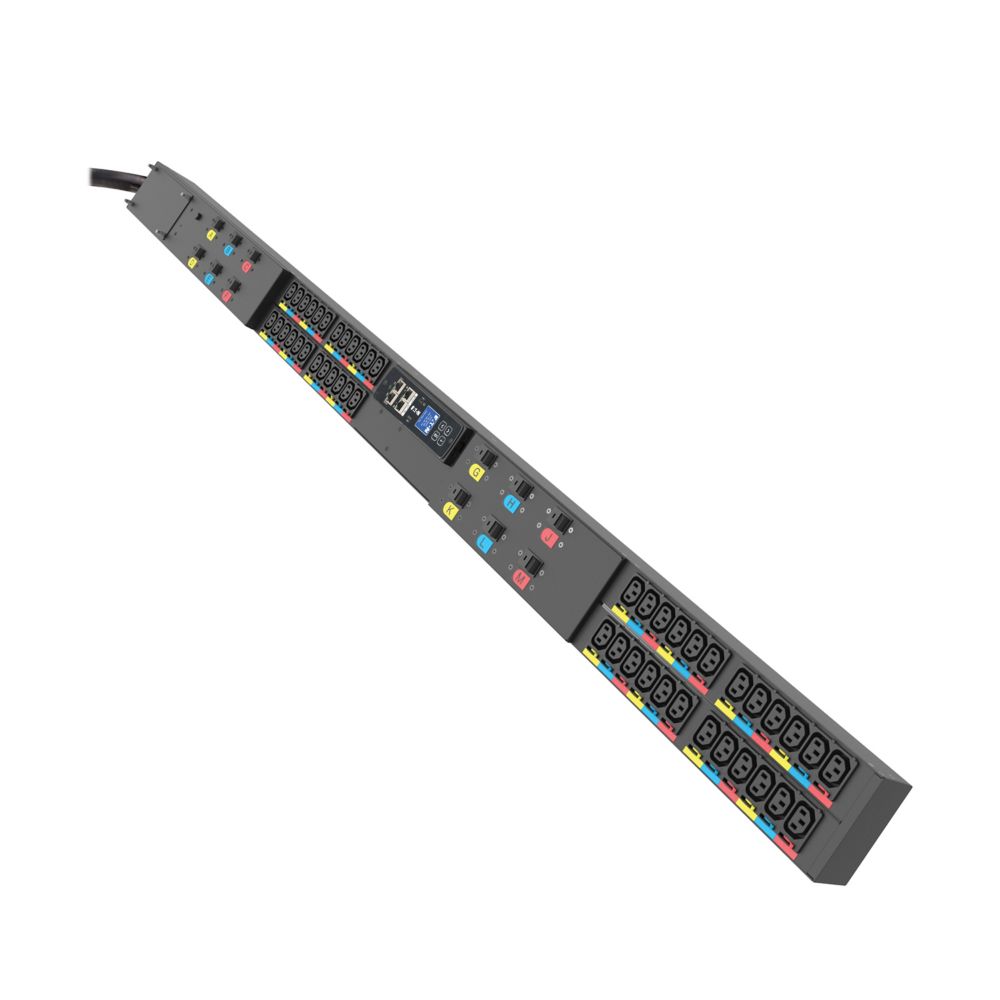

This PDU accepts a 200-240V 3-phase Delta input (208V nominal) rated at 60A through a 460P9W plug on a 6-foot cord, and distributes power across 48 C13 outlets protected by 12 low-profile 20A circuit breakers, one breaker per outlet bank for isolated fault protection. Refer to the product photo to check the outlet spacing across the vertical chassis before planning power cord routing for a fully loaded rack.

The PDU is managed through a Gigabit Network Module with cybersecurity features, giving IT staff serial and Ethernet-based remote access alongside an onboard LCD display showing outlet-level current, voltage, and power readings accurate to plus or minus 1 percent. Remote outlet control and power-cycling let administrators reboot individual devices without disrupting the rest of the rack, a common requirement in racks running dozens of low-power network or compute devices on shared circuits.

The aluminum 0U vertical chassis runs roughly 69.5 inches tall and weighs just under 30 lb, and is rated to operate across a 0°C to 60°C temperature range with 5-95% non-condensing humidity tolerance, making it suitable for standard data center and server room environments without supplemental climate control.

Key Features

• 48 C13 Outlets — High outlet density for racks running large numbers of standard C13-terminated devices.
• 17.3kW 3-Phase Output — Delivers ample power capacity across a fully populated rack.
• Gigabit Network Module with Cybersecurity Features — Supports hardened remote management for compliance-focused environments.
• Remote Outlet Control — Power-cycle individual outlets without affecting other connected equipment.
• 12 Circuit Breakers, One Per Bank — Isolates faults to a single outlet bank rather than the whole PDU.
• ±1% Metering Accuracy — Outlet-level current, voltage, and power readings.
• Wide Operating Range — Rated for 0°C to 60°C with 5-95% non-condensing humidity.

Typical Applications

• Data center
• Server room
• Network closet

Technical Specifications

Frequently Asked Questions

Why does this PDU use all C13 outlets instead of a mixed configuration?

The uniform 48-outlet C13 layout is designed for racks where connected equipment uses standard IEC C14 power cords, simplifying cable stocking compared with a mixed C13/C19 PDU.

What circuit does the EMAGLFC2C2C2C2L require?

A 200-240V 3-phase Delta circuit (208V nominal) rated at 60A, terminated in a 460P9W connector on a 6-foot cord.

Does this PDU support remote monitoring integration?

Yes. The Gigabit Network Module with cybersecurity features supports serial and Ethernet-based remote management for integration with data center monitoring platforms.

How is the PDU protected against overload on a single bank?

Twelve 20A low-profile circuit breakers each protect an individual outlet bank, isolating a fault to that bank instead of the entire PDU.

What environmental conditions is this PDU rated for?

It operates across a 0°C to 60°C temperature range with 5-95% non-condensing humidity, suitable for standard data center and server room environments.

What warranty does this rack PDU carry?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.
