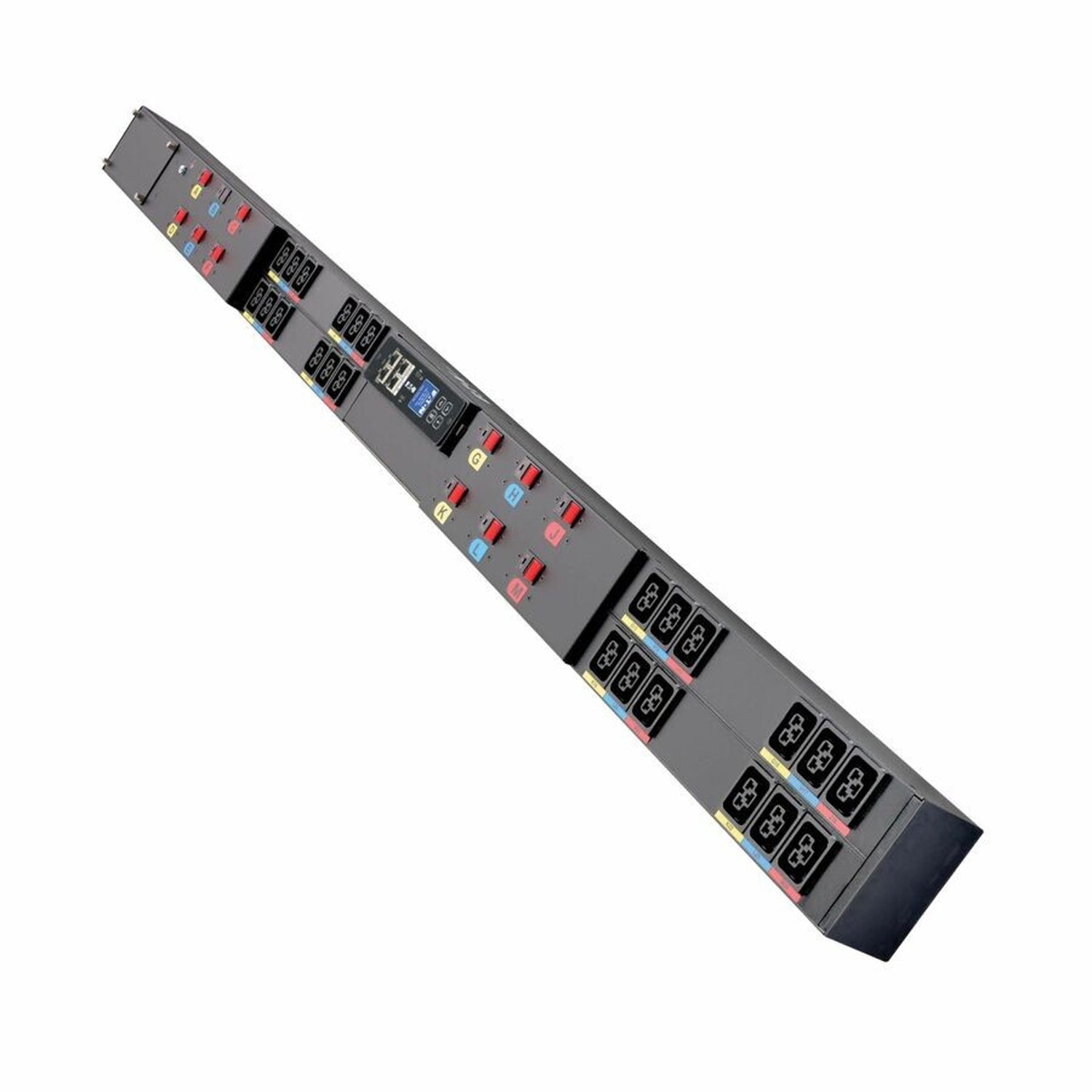

Eaton EMAGECC4C4C4C4L – 3-Phase 46kW Managed HDX Rack PDU

Product Overview

The Eaton EMAGECC4C4C4C4L is a 3-phase managed rack PDU built for high-density enterprise data center and colocation deployments. Delivering 46kW at 240/415V and 64A through 24 C39 combo outlets, this managed PDU is designed for GPU clusters, HPC, and other high-power-density server rack applications. It is engineered for hardwired input in fixed 0U vertical rack PDU installations where every outlet position matters. Integrators specifying rack PDUs for AI and high-performance computing racks will find the outlet flexibility and monitoring capability well suited to demanding power distribution requirements.

Product Description

The EMAGECC4C4C4C4L HDX Rack PDU G4 is built for deployment inside a rack in an enterprise data center, colocation data center, or distributed IT infrastructure footprint. As a 3-phase managed PDU rated for 240/415V and 64A, it supplies up to 46kW of usable capacity per unit, making it a strong fit for GPU-intensive workloads such as HPC, supercomputing, generative AI training, and high-frequency trading environments that require extremely high power density per rack. The unit's 24 C39 combo outlets each accept both C14 and C20 power cords, which reduces the number of distinct PDU types an integrator needs to stock and simplifies field connections during a rollout. Because it mounts 0U vertical, the PDU occupies no usable rack unit space, preserving the full front and rear of the rack for servers, switches, or storage. The hardwired input is intended for permanent, code-compliant installation by a qualified electrician rather than a plug-and-cord connection, which is typical for PDUs at this power class. As a managed PDU, it is built to provide the monitoring and remote visibility that data center operations teams expect from modern rack power distribution, helping facilities and IT staff track load across a demanding 3-phase circuit. This model is TAA-compliant, which matters for government, defense, and other GSA Schedule procurement requirements. Integrators planning multi-rack GPU or HPC pods can standardize on this platform to simplify spares, training, and outlet compatibility across a data hall.

Key Features

• 24 C39 Combo Outlets — Each outlet accepts both C14 and C20 connectors, reducing the number of PDU variants needed for mixed equipment loads.
• 46kW 3-Phase Capacity — 240/415V, 64A input delivers high power density suitable for GPU-intensive HPC and AI compute racks.
• 0U Vertical Mounting — The PDU mounts in the vertical cable channel of the rack, consuming zero rack units and preserving space for compute equipment.
• Hardwired Input — A fixed, hardwired connection supports permanent installation in high-amperage 3-phase circuits typical of enterprise data centers.
• Managed Monitoring — Built-in monitoring capability gives facilities and IT teams visibility into rack-level power consumption for capacity planning.
• TAA Compliance — Meets Trade Agreements Act requirements for government and GSA Schedule data center procurement.

Typical Applications

• Enterprise data center
• Colocation data center
• High-performance computing (HPC) facility
• Network closet supporting distributed IT infrastructure

Technical Specifications

Frequently Asked Questions

Is the EMAGECC4C4C4C4L compatible with standard 19-inch racks?

Yes, this 0U vertical rack PDU is designed to mount in the vertical cable channel of EIA-standard 19-inch server racks alongside compute and network equipment.

What connectors does the PDU support?

The 24 C39 combo outlets accept both C14 and C20 power cords, which allows a single PDU to serve mixed equipment without needing separate outlet types.

Does this PDU require an electrician for installation?

Yes. Because the input is hardwired and rated for 240/415V 3-phase at 64A, installation should be performed by a qualified electrician in accordance with local electrical code.

Can this PDU be integrated with data center power monitoring systems?

As a managed PDU, it is designed to provide power monitoring data that can support integration with a facility's DCIM or remote monitoring workflow; contact Creation Networks for details on your specific monitoring platform.

Is this PDU suitable for GPU or AI compute racks?

Yes, the 46kW 3-phase capacity and high outlet count make it well suited for GPU-intensive HPC, supercomputing, and generative AI rack deployments where power density is a primary constraint.

What warranty does Eaton provide on this unit?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.

Is the EMAGECC4C4C4C4L TAA compliant?

Yes, this model is TAA-compliant, making it eligible for GSA Schedule and other federal procurement channels.
