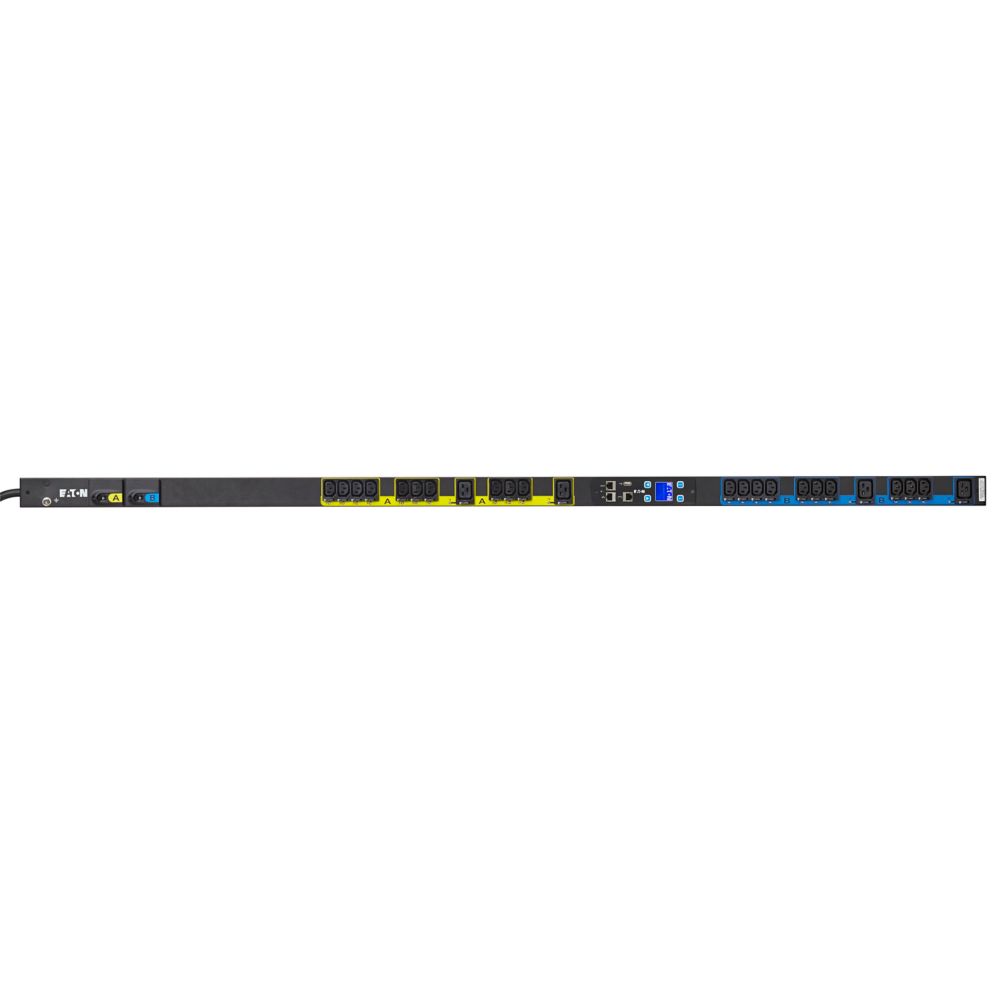

Eaton EMA107-10 – High-Density 24-Outlet Managed PDU

Product Overview

The Eaton EMA107-10 is a high-density managed rack PDU built for blade server deployments and colocation cabinets that need more outlets on a single 200-240V circuit. With 24 total outlets and a 24A L6-30P input, it is designed for data center and colocation cabinet installations where a high-density rack PDU has to support dense server counts without adding a second power path. Integrators specifying power for blade chassis, dense 1U server rows, or colocation cage builds use this model when a standard 8- or 16-outlet PDU will not cover the load.

Product Description

The Eaton EMA107-10 is a managed, 0U vertical rack PDU that accepts a 200-240V, 24A single-phase input through a NEMA L6-30P plug and distributes power across 20 IEC C13 and 4 IEC C19 receptacles, for 24 outlets total. The mixed C13/C19 outlet configuration accommodates both standard servers and higher-draw equipment such as blade enclosures, top-of-rack switches, and storage arrays on the same PDU, which is a common requirement in colocation cabinet and data center racks.

As a high-density managed PDU, the EMA107-10 monitors total load over an RS-232 interface and is compatible with Eaton's network management card accessories for Ethernet-based remote monitoring, giving data center operations teams real-time visibility into circuit loading across a row of cabinets. This supports capacity planning in colocation environments where rack density and power headroom are billed and tracked closely.

Because the unit mounts 0U vertically along the rear rail, it does not consume rack unit space that could otherwise hold compute, storage, or network equipment, which is a priority in blade server and colocation cabinet deployments where every rack unit has value. The 10-foot cord provides routing flexibility to overhead busway drops or PDU whips common in raised-floor data centers.

For integrators managing multiple colocation cabinets or a growing server room footprint, standardizing on the EMA107-10 simplifies spares planning and monitoring configuration, since the same managed PDU platform and network card accessories carry across Eaton's EMA series.

Key Features

• 24 Outlets on One Circuit — Combines 20 C13 and 4 C19 receptacles to support both standard servers and higher-draw equipment from a single PDU.
• 200-240V, 24A Input — Matches the higher-capacity circuits typical of blade server racks and colocation cabinets.
• 0U Vertical Mounting — Installs along the rear rail without using rack unit space needed for compute and network equipment.
• Remote Load Monitoring — Reports circuit-level current draw over RS-232, with optional network card support for Ethernet monitoring.
• L6-30P Input Plug — Matches common 30A twist-lock receptacles found in data center and colocation power distribution.
• UL Listed and TAA Compliant — Suitable for commercial data center and government-funded procurement requirements.

Typical Applications

• Data center
• Colocation cabinet
• Server room
• Government space

Technical Specifications

Frequently Asked Questions

Is the EMA107-10 suitable for blade server chassis?

Yes. The mix of 20 C13 and 4 C19 outlets on a 24A, 200-240V circuit is designed to support blade enclosures and other higher-draw equipment alongside standard 1U and 2U servers on the same PDU.

What electrical service does the EMA107-10 require?

It requires a 200-240V, 24A single-phase circuit terminated in a NEMA L6-30P receptacle. Confirm available circuit capacity in the cabinet or colocation suite before installation.

Can this PDU integrate with a data center monitoring platform?

The EMA107-10 reports load data over RS-232 and supports optional Eaton network management card accessories, allowing integration with SNMP-based or IP-connected monitoring systems used in many data center and colocation environments.

Does the EMA107-10 fit standard colocation cabinets?

The 0U vertical form factor is designed to mount along the rear rail of standard 19-inch cabinets, which is the typical configuration in most colocation facilities. Confirm rear rail clearance with your colocation provider before ordering.

What is the warranty on the Eaton EMA107-10?

Eaton provides a 3-year limited warranty on this PDU. Contact Eaton or Creation Networks for complete terms and RMA procedures.
